Working with Tables

You can use tables in forms as well as in pages and rich-text fields in documents. Tables can help organize and present information in documents and forms. One advantage of using tables to position elements on a form is that each cell in a table can be treated as a paragraph. This means that you can apply different paragraph styles in the same row. For example, you can't position a text label for a field in a form by pixels as you can in certain other application designers that treat text as an object. Instead, the text wraps along with the field and any other text in the line. Using a table, you can create a column for field labels and a separate column for the fields and then format each column independently. The text labels can be set right-justified, and the fields can be set left-justified to make a neat display.

You might recall from Chapter 4 that hide-when attributes are applied to paragraphs. This means that you cannot selectively hide objects in a single line. The hide-when attribute applies to the entire paragraph. In a table, different hide-when attributes can be applied to individual cells. Text styles and properties can also be applied to each cell. In effect, this allows the conditional display of objects in a single line. All you have to do is selectively apply the attributes to the appropriate cells in a single row. If you then hide the table borders, the row appears as a single line in the form.

TIP

Ranges of cells can be changed by highlighting rows or columns and making the changes in the appropriate properties box or through the keyboard. For example, to change the column titles (the topmost row) of a table to bold, highlight the row with the mouse and press Ctrl+B or click the Text Bold SmartIcon.



What's New for Tables in Notes and Domino 6?

Not as many new features for tables are present in Notes and Domino 6 as there were in R5. Following are some of the new features:

  • Tabs can now appear on all four sides of a table.
  • Many new toolbar icons have been added.
  • A new type of table, the captioned table, has been added. Row captions can be used to collapse and expand table rows.

Creating a Table

To create a table, click the Create Table SmartIcon or choose Create, Table from the menu. The resulting Create Table dialog box contains settings for Number of Rows, Number of Columns, Table Width, and Table Type. There are five types of tables: basic, tabbed, animated, captioned, and programmed. The default settings for the Create Table dialog box are two rows and two columns, with a fixed width and a type of basic, as shown in Figure 5.1. After you create a table, you can insert, append, and delete rows and columns.

Figure 5.1. The Create Table dialog box enables you to specify the number of rows and columns, and to choose the width and type.

graphics/05fig01.jpg

NOTE

To include a table within a table, position the cursor in one of the cells, and either select Create, Table from the menu or click the Create Table SmartIcon. Specify the number of rows and columns and check or uncheck Fixed Width as appropriate. Tables within other tables are known as embedded or recursive tables. This technique is often used with tabbed tables; your location documents are an example of tabbed tables with recursive tables.



After you create a table, a Table Properties icon appears on the toolbar near the Text Properties icon. Six new icons appear on the toolbar next to the Create Table icon. Remember, you can use hover help to learn the function of icons on the toolbar. In order from left to right they are as listed here:

  • Insert Row
  • Insert Column in Table
  • Insert/Append Special
  • Delete Row
  • Delete Column in Table
  • Delete Special

A new menu, the Table menu, also has been added. This menu has the prompts listed in Table 5.1.

Table 5.1. Table Menu Prompts

Prompt Effect
Table Properties Opens the Table properties box.
Table Select/Row(s) Selects the row or rows where the cursor is positioned or which it has partially selected.
Table Select/Column(s) Selects the column or columns where the cursor is positioned or which it has partially selected.
Table Select/All Selects all cells inside the table.
Table Select/Entire Selects the entire table, including the outside edges and a row of text before and after the table. This is useful if you need to delete the entire table.
Insert Row Adds a row before the current cell.
Insert Column Adds a column before the current cell.
Insert Special Presents a dialog box with options to insert or append a specific number of rows or columns.
Append Row Adds a row after the current cell.
Append Column Adds a column after the current cell.
Delete Selected Row(s) Deletes the current row or rows if cells from more than one row are highlighted.
Delete Selected Column(s) Deletes the current column or columns if cells from more than one column are highlighted.
Delete Special Presents a dialog box with options to delete a specific number of rows or columns.
Merge Cells Combines two or more cells into a single cell.
Split Cells Splits a merged cell into the constituent cells.
Auto Size Resizes cells based on their contents.

TIP

You can also append rows to tables by positioning the cursor in the cell in the lower-right cell and pressing the Tab key.



Working with Table Properties

The next several sections discuss the Table properties box. You can open the Table properties box by clicking the Table Properties icon or choosing Table, Table Properties from the menu when the cursor is within a table. In Notes and Domino 6, the properties box has seven tabs: Table Layout, Cell Borders, Table/Cell Background, Table Borders, Table Margins, Table Rows, and Table Programming. See Figure 5.2.

Figure 5.2. The Table properties box can also be opened by right-clicking in a table and choosing Table Properties from the context menu.

graphics/05fig02.jpg

Understanding Table Layouts

The Table Layout tab consists of two sections: Table and Cell. The table settings are global, as are some cell attributes ”an asterisk marks those cell attributes that are global. The Table section has two drop-down lists, one for the width and one for the position. There are three choices for width: Fixed Width (the default), Fit to Window, and Fit with Margins. The Position setting is available only for fixed-width tables, and you can specify Left (the default), Right, or Center (see Figure 5.2). If you select Fit to Window or Fit with Margins, additional options display in the Cell Layout section.

Table 5.2 lists the options that are available in the Cell section of the Table Layout tab.

Table 5.2. Table Cell Layout Settings

Setting Options
Cell Width Sets the width of cells; affects all cells in a given column.
Fixed Width Available for Fit to Window or Fit with Margins. This check box keeps the width of the selected column fixed.
Size to Fit Available for Fit to Window or Fit with Margins. Resizes the width of the selected column.
Minimum Height Global; sets minimum cell height.
Row Spacing Global; specifies the spacing between rows.
Column Spacing Global; sets the spacing between columns.
Vertically Align Specific to an individual cell. Choose from Top (the default), Center, and Bottom to position the cell contents within the cell.

When you create a table containing multiple columns, all columns are initially the same width. If you want to have complete control over the width of a table, either select a fixed-width table or change the Table Width field to Fixed Width. The width of individual columns can be changed without affecting the remaining cells. With Fit to Window or Fit to Margin set, when an individual cell is changed, the other cells adjust to fill the remaining width. Note that although a value in inches can be typed into the Cell Width field on the Layout tab, it is often far easier to use the ruler to resize the columns. To turn the ruler on or off, click the Ruler icon in the toolbar or press Ctrl+R. To resize a column of cells using the ruler, click the drag handle in the ruler for the right column of the cell. A thin black line appears when dragging the cell border and helps to visually position the cell borders.

Setting Cell Borders

The Cell Borders tab has two sections: Cell Border Style and Cell Border Thickness . The Style section applies to the entire table.

NOTE

Settings that are global to a table apply to the currently selected table. If a table is embedded within another table, global settings apply to the embedded table if that is the selected table, or to the parent table, if the parent table is selected. In other words, the table properties of embedded and parent tables are distinct from each other.



You can choose a border style from Solid (the default), Ridge, or Groove. The standard color picker is available for border color .

The settings for border thickness can be applied to individual cells, to a range of cells, or to the entire table. Cell thickness is controlled by spinners on all four sides. There are three buttons on the tab: Set All to 0, Set All to 1, and Outline. The two Set All buttons can apply to a single cell, a range of cells, or the entire table. To select a range of cells or the entire table, drag the mouse pointer with the left button held down until the cells that you want to affect are highlighted. When you release the mouse, the cells remain highlighted until you click elsewhere. The Outline button is available only when more than one cell is selected. The large spinner buttons on the right side of the tab apply to the current cell selection. If multiple cells are selected, clicking the up or down arrow increases /decreases the border thickness for all cells in the selected range. The Cell Borders tab provides a high degree of control over the appearance of the table's borders (see Figure 5.3).

Figure 5.3. The Cell Borders tab of the Table properties box has settings for the style and thickness of the cell borders.

graphics/05fig03.jpg

TIP

To make the cell borders of an entire table invisible, select all the cells and open the Table properties box to the Cell Borders tab. You can select all the cells by choosing Table, Select All from the menu. Click the Set All to 0 button. The table borders become invisible. Using an invisible table allows the text and fields to be tightly formatted without the extra clutter of cell borders.



Using the Table/Cell Background Tab

Colors of individual cells or of the entire table can be set from the Color tab, shown in Figure 5.4. This tab is essentially unchanged from R5. There are three sections on this tab: Table Color, Cell Color, and Cell Image.

Figure 5.4. The image and text in the Cell Image section of the Table/Cell Background tab indicates the order of precedence for color and images.

graphics/05fig04.jpg

The Table Color section has a drop-down list of Table Style settings that apply color schemes to the entire table. When you select a scheme other than the default of None, one or two color picker boxes appear in the Table Color section, depending upon your selection. If you choose a solid color, a single color picker appears. All other choices result in two color pickers.

The default color choices for a two-color scheme are dark gray and gray, but you can change them with the Domino color picker. See Figure 5.5. Following are the choices for table styles:

  • None (the default) ” No color style applied.
  • Solid ” All cells have the same color.
  • Alternating Rows ” The rows alternate between the two color choices.
  • Alternating Columns ” The columns alternate between the two color choices.
  • Left and Top ” The leftmost column and the top row are set to one color, and the remaining cells are set to the other color.
  • Left ” The leftmost column is set to one color, and the remaining cells are set to the other color.
  • Right and Top ” The rightmost column and the top row are set to one color, and the remaining cells are set to the other color.
  • Right ” The rightmost column is set to one color, and the remaining cells are set to the other color.
  • Top ” The top row is set to one color, and the remaining cells are set to the other color.

Figure 5.5. When table styles other than None or Solid are chosen , two color pickers appear.

graphics/05fig05.jpg

The Cell Color section can apply to a single cell, a range of cells, or, when the Apply to All button is clicked, to the entire table. Initially, the style is solid and only one color picker is available. If you switch from solid to a horizontal or vertical gradient, a second color picker appears. The second color picker is labeled To (see Figure 5.6).

Figure 5.6. The To color picker appears when either the vertical or the horizontal gradient button is clicked.

graphics/05fig06.jpg

When you use two different colors and choose one of the two gradient settings, the colors in the range between the From and To colors are displayed as a gradient. The cell gradient is applied only to individual cells. If you click the Apply to All button, the gradient is added to each cell but doesn't apply across all cells. This can make a rather choppy appearance, especially if the vertical gradient is used.

The Cell Image section enables you to select an image resource and to determine how the image is displayed. You can click the Browse Image button or enter a formula to choose an image resource. (For more information about shared image resources, see Chapter 7, "Using Shared Resources in Domino Applications.") Several Repeat styles are available, as shown in Figure 5.7.

Figure 5.7. The Cell Image section sets a Repeat style for the image.

graphics/05fig07.jpg

Working with Table Borders

The Table Borders tab (see Figure 5.8) sets border styles and colors. You can add a drop shadow and alter the thickness of the table borders. These settings apply only to the border of the table (the outside edges) and do not affect the cells inside the table.

Figure 5.8. A drop shadow with a width of 12 has been chosen for this table.

graphics/05fig08.jpg

For a border style, you can choose from the following border styles:

  • None
  • Solid
  • Double
  • Dotted
  • Dashed
  • Inset
  • Outset
  • Ridge
  • Groove
  • Picture (new to Notes and Domino 6)
  • Image (new to Notes and Domino 6)

Some of these styles are not readily apparent unless you change the settings for the thickness of the borders in the third section of this tab (discussed in the following section). To see the effects of the border styles, you can switch to a different color for the table borders than is used for the cell borders.

You can add a drop shadow to the table by checking Drop Shadow. The default width for a drop shadow is 12 pixels, but you can change this by clicking the spinner up or down, or by typing a value into the box.

The final section lets you control the width of the table borders. Three settings are available: Inside, Thickness (the default choice), and Outside. Each side of the table border has an individual spinner that sets the property in pixels. You can also click the large spinner control on the right side of the tab to affect all settings. The borders in Figure 5.9 were set uniformly by clicking the up arrow until a thickness setting of 8 pixels was reached.

Figure 5.9. This table has a border style of Outset and a thickness of 8.

graphics/05fig09.jpg

Working with Table Margins

The Table Margins tab has settings for Table Margins, Table Wrap, and R4 Compatibility (see Figure 5.10). The Table Margins section has settings for the left and right margins, which can be entered in inches or as a percent. The drop-down lists to the right of the settings have two choices: Absolute and Relative (%).

Figure 5.10. The Table Margins tab allows the right and left margins to be set by a percent or by a specific offset in inches.

graphics/05fig10.jpg

You can set word wrap around the table and inside the table in the Table Wrap section. The Outside Table check box is available only for fixed-width tables. Checking this setting causes text to wrap around the table. If you check Inside Table, a new field appears, At Height, which allows you to enter a height in inches at which text will wrap from one cell to the next. This is handy for setting up a table in "newspaper column" format.

Table Rows

The Table Rows tab enables you to switch among the five table styles. Basic tables display only a single radio button in the Special Table Row Display section. The choices are Show All Table Rows and Show Only One Row at a Time. If Show All Table Rows is selected, no other choices appear on the tab (see Figure 5.11). Once you select the second setting, the properties box expands to show several other sections (see Figure 5.12). You can choose the type of table in the Which Row to Display radio button, which has options for four types of tables. Each type of table ”tabbed, captioned, animated, and programmed ”has its own options, which appear when you click the radio button. The four nonbasic table types are listed here:

  • Tabbed ” Users Pick Row via Tab Buttons. Opens sections that let you label the tabs; choose font face, size, style, and color; size tabs equally; select the position of the tab (top, bottom, right, or left); and set an indent for the first tab.
  • Captioned ” Users Pick Row via Captions. Captioned tables are new to Notes and Domino 6. Opens sections that let you add text for the caption, and choose font face, size, style, and color for the caption.
  • Animated ” Switch Row Every n Milliseconds. Opens the Milliseconds field, which defaults to 2000, and opens a transition section, in which you choose the transition effect and how the rows cycle.
  • Programmed ” Switch Rows Programmatically. Creates a tabbed table and opens a check box, Also Show Tabs so User Can Pick Row. When you check Also Show Tabs, the sections for tabbed tables display.

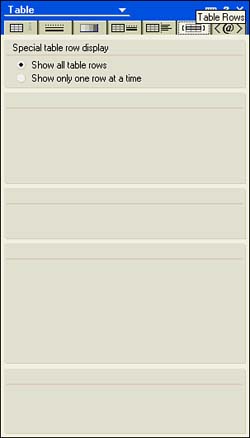

Figure 5.11. Basic tables show only one setting, Show All Table Rows, on the Table Rows tab.

graphics/05fig11.jpg

Figure 5.12. You can label the tab buttons in the last field on the properties box.

graphics/05fig12.jpg

Some of these styles are useful when designing forms, but others are more useful for documents or pages. For example, animating a table is not as useful for a form as it would be for a document or a page. A tabbed table, on the other hand, is very useful for form design. Using a tabbed table, you can reduce the length of a form significantly, displaying it on a single screen so that the users don't have to page down through line after line of information.

A good example of a tabbed table is found in the design of the location document for your local address book (see Figure 5.13). Each of the table rows has labels such as Basics, Servers, and Ports. Through the artful use of tabbed rows and tables within tables, this document can be presented in a visually appealing and much shorter format, reducing the need to scroll through a lengthy document to locate a setting.

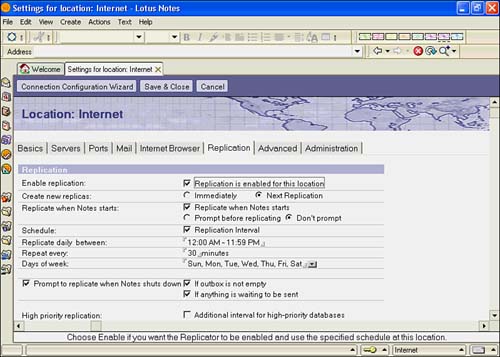

Figure 5.13. The tabbed table of the location document shows how a lengthy document can be condensed to a more usable size.

graphics/05fig13.jpg

NOTE

Tabbed tables do function on the Web. Each of the tabs becomes a hotspot, opening the row as a new HTML document.



Using the Table Programming Tab

The Table Programming tab, not to be confused with a programmable table, contains HTML settings for the entire table, for rows, and for settings for individual cells. With the exception of the Other fields and the Row Tags field, all settings are for use with Cascading Style Sheets. The table row container tag in HTML can take the following attributes: ALIGN , BGCOLOR , and VALIGN (horizontal alignment, background color, and vertical alignment, respectively ”see Figure 5.14).

Figure 5.14. The Table Programming tab contains HTML attributes for the table itself and for individual rows and cells.

graphics/05fig14.jpg

Using the Collapsed Table Properties Box

As with the Text properties box, when the Table properties box is collapsed, it displays several buttons, enabling you to change certain settings without fully expanding the properties box (see Figure 5.15). Table 5.3 lists the available buttons on the collapsed properties box from left to right.

Figure 5.15. The collapsed Table properties box becomes a toolbox for commonly used table-design functions.

graphics/05fig15.jpg

Table 5.3. The Collapsed Table Properties Box

Button Effect
Cell Color Picker Displays the color picker for the current cell or selection
Cell Borders On Turns borders on for the current cell or selection
Cell Borders Off Turns borders off for the current cell or selection
Split Cells Splits cells; available only for merged cells
Merge Cells Merges two or more selected cells
Insert Column Inserts a column before the current column
Delete Column Deletes the current column
Append Column Appends a column to the table
Insert Row Inserts a row before the current row
Delete Row Deletes the current row
Append Row Appends a row to the table

Merging and Splitting Cells

The capability to merge and split cells is available from the Table menu or from the collapsed Table properties box. To merge cells, highlight the cells with the mouse and choose Table, Merge Cells; or click the Merge Cells button on the collapsed Table properties box. To split cells that have been merged, position the cursor in the cell and choose Table, Split Cells from the menu, or click the Split Cells button. You can use this technique to create a multiple-column table that contains fields or labels of different widths.

TIP

Instead of using merged cells in a row to label blocks of information in a table, you can use a tabbed table and label the row tabs instead.



Using Tables to Format Data Entry

It is often very difficult to control the position and flow of text on a form. Creating a Notes form is much like creating a word-processing document ”except for layout regions , text such as a field label is not a discrete object. In a form, tabs can be set to present information, but fields can easily spill over the next tab stop and ruin the presentation. As you already know, when the form is presented to a Web client, any spaces or tabs basically vanish .

You can get around this limitation by placing fields, field labels, and graphics within a table in separate columns. Tables confine objects, text, and fields to cells. The width of these cells is set, and if the length of the field contents is greater than the width of the cell, the contents spill to the next line but remain within the cell borders.

For a simple data entry form, you can create a table with three columns and the appropriate number of rows. The leftmost column contains the field label, the middle column is a spacer, and the rightmost column contains the field itself. Because the contents of each cell can be controlled individually, advanced formatting can be applied to form design. One design standard places field labels flush right and fields flush left with a set space in between. Simply highlight the column for the field labels and change the alignment to flush right. Unless the alignment for the column containing the fields has been changed, it will already be flush left. By including a narrow separator column between the field labels and the fields themselves , you can then hide the table borders and give the form a very polished appearance.

You can change the alignment of a column by highlighting all the cells in the column and choosing the desired alignment from the appropriate Alignment icon on the toolbar, or by making a selection in the Paragraph tab of a Text properties box, or by choosing Text, Align Paragraph from the menu. A sample Contacts form is shown in Figure 5.16. Although the borders of rows containing fields and field labels have been made invisible, you can still see them in design mode as dashed lines.

Figure 5.16. This form uses a table to align the text labels flush right and the fields flush left, with a narrow spacer column in between. The cell borders are invisible.

graphics/05fig16.jpg

Using Tables with Web Forms

Because tables are supported on the Domino server, they are quite useful for presenting documents to Web browsers. In fact, tables are the preferred method of presenting information and fields to users of both Notes and Web clients . In general, when a table is displayed in a Web browser, the properties of a table are all taken from the first cell of the table. For example, if that cell has no border, all the cells in the table have no border. You can alter this by using HTML on the Programming tab of the Table properties box. HTML doesn't support items such as tabs, indents, and outdents, but a table can be used to simulate the effects by controlling the alignment of objects on the form. Figure 5.17 shows the Contact Information form in Figure 5.17 presented to a Web client.

Figure 5.17. The Contact Information form as it would appear presented to a Web client.

graphics/05fig17.jpg

Using Graphic Objects in Tables

Graphic objects can be embedded in a table's cells. This allows graphics and text to be placed alongside each other, a feat that cannot be accomplished any other way, except in a layout region. (Layout regions are discussed later, in the section "Using Layout Regions.") A number of methods exist for placing graphics into the cells of a table. You can import a graphic image such as a .GIF or .JPG file into a cell. You can also copy the image to the Clipboard, place the cursor in a cell of the table, and press Ctrl+V to paste it into the cell.

NOTE

Two commonly used formats for graphics are JPEG and GIF. JPEG is short for Joint Photographic Experts Group , and GIF stands for Graphical Interchange Format. Both of these are in widespread use on the Web because they compress well. In graphics terms, compress means to reduce the size of the image file; these two formats do that quite well without significant loss of image fidelity. Alternatively, a Windows bitmap (.BMP) may have a higher image quality, but it is also significantly larger. In general, the larger the image is, the longer it takes a client ”either a Notes or a Web client ”to load.



You can also use a shared image resource. Shared image resources can be added through the menu using Create, Image Resource. You can also add an image through the Table/Cell Background tab. When you add an image to a table through the properties box, it is a background object. As a result, although you have control over how the image repeats, you lose a lot of control over the image in other areas. You cannot resize it, wrap text, or attach hotspots to a background image. You can, however, add text atop the image.
