Configuration of Transparent Firewall

Table of contents:

Deployment Scenarios

The robust transparent firewall solution can be deployed in different ways. This section covers two design scenarios for ease of understanding:

  • SMTF deployment
  • MMTF deployment using security contexts

Note

These design scenarios are discussed here to enforce learning and thus they should be used for reference only.



SMTF Deployment

SecureMe has a remote location in Brussels that uses IP as the Layer 3 protocol. SecureMe wants to deploy an ASA in transparent firewall mode so that it does not have to modify the existing network addresses. Figure 10-6 shows SecureMe's new topology in Brussels after setting up an ASA.

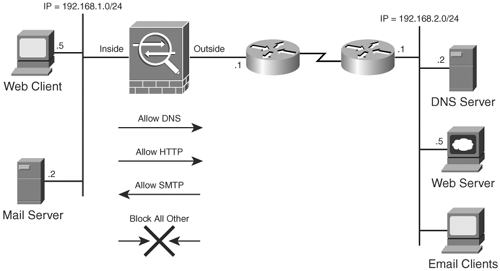

Figure 10-6. SecureMe Brussels Network Topology

Additionally, SecureMe wants to achieve the following goals:

  • Allow DNS traffic to query the DNS server
  • Allow HTTP clients to talk to the remote web server
  • Allow access to an email server for the remote client
  • Protect the email server from TCP SYN attacks by setting the embryonic connections to 200 and maximum connections to 300
  • Deny all other traffic

Example 10-11 shows the relevant configuration for the Cisco ASA in Brussels. SecureMe has set up an ACL that is applied to the inside interface to allow inbound DNS and HTTP traffic and filter out everything else. The security appliace is also configured with an ACL applied on the outside interface to allow SMTP traffic.

Example 10-11. ASA Relevant Configuration to Allow IP Traffic

Brussels# show running-config

! transparent firewall mode is enabled

firewall transparent

! outside interface

interface GigabitEthernet0/0

 nameif outside

 security-level 0

! inside interface

interface GigabitEthernet0/1

 nameif inside

 security-level 100

!

hostname Brussels

! Access-list entry to allow DNS packets to pass through the ASA.

access-list inside_in extended permit udp 192.168.1.0 255.255.255.0 host 192.168.2.2

 eq 53

! Access-list entry to allow HTTP packets to pass through the ASA.

access-list inside_in extended permit tcp 192.168.1.0 255.255.255.0 host 192.168.2.5

 eq 80

! Access-list entry to deny and log all other packets.

access-list inside_in extended deny ip any any log

! Access-list entry to allow SMTP traffic.

access-list outside_in extended permit tcp 192.168.2.0 255.255.255.0 host

 192.168.1.2 eq 25

! Global IP address

ip address 192.168.1.10 255.255.255.0

! Static command is used to specify the maximum and embryonic connection limit

static (inside,outside) 192.168.1.2 192.168.1.2 netmask 255.255.255.255 tcp 300 200

! Access-list is applied to the inside interface of the ASA

access-group inside_in in interface inside

! Access-list is applied to the outside interface of the ASA

access-group outside_in in interface outside

! Default gateway. It is used by the ASA for the traffic originating from it

route outside 0.0.0.0 0.0.0.0 192.168.1.1 1



MMTF Deployment with Security Contexts

SecureMe plans to provide firewall services to two different organizations at its Brussels office. These organizations not only use different Layer 3 protocols but also have unique sets of requirements that SecureMe needs to account for. Figure 10-7 shows SecureMe's new topology in Brussels to provide these services.

Figure 10-7. SecureMe Brussels Multimode Topology

Both customersCubs and Bearshave provided SecureMe with a list of requirements:

Cubs

  • Allow all IPX traffic to pass
  • Allow all BPDUs to pass
  • Deny all other traffic
  • Set L2F table timeout of 20 minutes

Bears

  • Allow Enhanced Interior Gateway Routing Protocol (EIGRP) updates to pass
  • Allow Virtual Router Redundancy Protocol (VRRP) updates to pass
  • Deny and log all other inbound traffic on the outside interface
  • Deny learning dynamic MAC address on the outside interface

Example 10-12 shows ASA's relevant configuration with three security contexts. The system execution space has been set up to allocate interfaces to customers' contexts. An admin context is configured to do the following:

  • Use a AAA server for SSH and telnet user authentication
  • Log all the system-generated messages to a syslog server

Additionally, there are two other contexts: Cubs and Bears. These security contexts are set up to meet the requirements of SecureMe's customers.

Example 10-12. ASA's Relevant Configuration in Transparent Mode with Multiple Contexts

 System Execution Space

Brussels# show run

! transparent firewall mode is enabled in the system context

firewall transparent

! Main GigabitEthernet0/0 interface

interface GigabitEthernet0/0

! Sub-interface assigned to the admin context as the inside interface. A VLAN ID is

! assigned to the interface

interface GigabitEthernet0/0.1

 vlan 5

! Sub-interface assigned to the Cubs context as the inside interface. A VLAN ID is

! assigned to the interface

interface GigabitEthernet0/0.2

 vlan 10

! Sub-interface assigned to the Bears context as the inside interface. A VLAN ID is

! assigned to the interface

interface GigabitEthernet0/0.3

 vlan 20

! Main GigabitEthernet0/1 interface

interface GigabitEthernet0/1

! Sub-interface assigned to the admin context as the outside interface. A VLAN ID is

! assigned to the interface

interface GigabitEthernet0/1.1

 vlan 101

! Sub-interface assigned to the Cubs context as the outside interface. A VLAN ID is

! assigned to the interface

interface GigabitEthernet0/1.2

 vlan 110

! Sub-interface assigned to the Bears context as the outside interface. A VLAN ID is

! assigned to the interface

interface GigabitEthernet0/1.3

 vlan 120

hostname Brussels

! context named "admin" is the designated Admin context

admin-context admin

! "admin" context definition along with the allocated interfaces.

context admin

 description admin Context for admin purposes

 allocate-interface GigabitEthernet0/0.1

 allocate-interface GigabitEthernet0/1.1

 config-url disk0:/admin.cfg

! "Cubs" context definition along with the allocated interfaces.

context Cubs

 description Cubs Customer Context

 allocate-interface GigabitEthernet0/0.2

 allocate-interface GigabitEthernet0/1.2

 config-url disk0:/Cubs.cfg

! "Bears" context definition along with the allocated interfaces.

context Bears

 description Bears Customer Context

 allocate-interface GigabitEthernet0/0.3

 allocate-interface GigabitEthernet0/1.3

 config-url disk0:/Bears.cfg

_____________________________________________________________________________

 Admin Context

Brussels/admin# show running

! transparent firewall mode is enabled in all contexts

firewall transparent

ASA Version 7.0(1)

! inside interface of the admin context with security level set to 100

interface GigabitEthernet0/0.1

 nameif inside

 security-level 100

! outside interface of the admin context with security level set to 0

interface GigabitEthernet0/1.1

 nameif outside

 security-level 0

!

hostname admin

! Global IP address

ip address 192.168.1.10 255.255.255.0

! configuration of a syslog server with logging level set to emergencies with

timestamp

logging enable

logging timestamp

logging trap emergencies

logging host inside 192.168.1.100

!

route outside 0.0.0.0 0.0.0.0 192.168.1.1

! configuration of a AAA server using RADIUS for authentication

aaa-server uauth protocol radius

aaa-server uauth host 192.168.1.20

 key cisco123

!Telnet and SSH using RADIUS for authentication

aaa authentication telnet console uauth

aaa authentication ssh console uauth

! Telnet to the admin context is allowed from the inside interface

telnet 192.168.1.0 255.255.255.0 inside

telnet timeout 5

! SSH to the admin context is allowed from the outside interface

ssh 0.0.0.0 0.0.0.0 outside

ssh timeout 5

_____________________________________________________________________________

 Security Context for Cubs

Brussels/Cubs# show running

! transparent firewall mode is enabled in all contexts

firewall transparent

ASA Version 7.0(1)

!inside interface of the Cubs context with security level set to 100

interface GigabitEthernet0/0.2

 nameif inside

 security-level 100

!outside interface of the Cubs context with security level set to 0

interface GigabitEthernet0/1.2

 nameif outside

 security-level 0

!

hostname Cubs

! Access-list entry to allow IPX and BPDU traffic

access-list layer2_acl ethertype permit ipx

access-list layer2_acl ethertype permit bpdu

access-list layer2_acl ethertype deny any

! Access-list is applied to the inside interface

access-group layer2_acl in interface inside

! Access-list is also applied to the outside interface

access-group layer2_acl in interface outside

! Management IP address

ip address 192.168.10.10 255.255.255.0

! Default route for management traffic

route outside 0.0.0.0 0.0.0.0 192.168.10.1 1

! L2F timeout is set to 20 minutes

mac-address-table aging-time 20

______________________________________________________________________________

 Security Context for Bears

Brussels/Bears# show running

! transparent firewall mode is enabled in all contexts

firewall transparent

ASA Version 7.0(1)

!inside interface of the Bears context with security level set to 100

interface GigabitEthernet0/0.3

 nameif inside

 security-level 100

!outside interface of the Bears context with security level set to 0

interface GigabitEthernet0/1.3

 nameif outside

 security-level 0

!

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname Bears

! Access-list entry to allow all IP traffic on the inside interface

access-list inside_in extended permit ip any any

! Access-list entry to only allow EIGRP and VRRP traffic on the outside interface

access-list outside_in extended permit eigrp any any

access-list outside_in extended permit 112 any any

access-list outside_in extended deny ip any any log

!

! Global IP address

ip address 192.168.20.10 255.255.255.0

! Access-list is applied to the inside interface

access-group inside_in in interface inside

! Access-list is applied to the outside interface

access-group outside_in in interface outside

route outside 0.0.0.0 0.0.0.0 192.168.20.1 1

! learning MAC address on the outside interface is not allowed

mac-learn outside disable

! Static L2F entry of outside router as dynamic learning is not allowed

mac-address-table static outside 00ff.fff0.003e
