DOS Partitions

The most commonly encountered partition system is the DOS-style partition. DOS partitions have been used with Intel IA32 hardware (i.e., i386 / x86) for many years, yet there is no official specification. There are many Microsoft and non-Microsoft documents that discuss the partitions, but there is no standard reference.

In addition to there being no standard reference, there is also no standard name. Microsoft now calls disks using this type of partition system Master Boot Record (MBR) disks. This is in comparison to a GUID Partition Table (GPT) disk that is used with the Extensible Firmware Interface (EFI) and the 64-bit Intel Itanium-based systems (IA64), which are discussed in the next chapter [Microsoft 2004a]. Starting with Windows 2000, Microsoft also differentiates between basic and dynamic disks. A basic disk refers to either an MBR or a GPT disk, and the partitions in the disk are independent and standalone. Dynamic disks, which are discussed in Chapter 7, "Multiple Disk Volumes," also can be either MBR or GPT disks, and the partitions can be combined and merged to form a single, large partition. Basic disks have traditionally been associated with DOS partitions, probably because GPT disks are not yet as common. Therefore, using the current terminology, this chapter covers basic MBR disks. However, we will use the simple term DOS partitions for this book.

DOS partitions are used with Microsoft DOS, Microsoft Windows, Linux, and IA32-based FreeBSD and OpenBSD systems. DOS partitions are the most common but also the most complex partitioning system. They were originally designed in the 1980s for small systems and have been improved (i.e., hacked) to handle large modern systems. In fact, there are two different partitioning methods that are used in this system. This section will give an overview of the partitioning system, show the data structures in the system, show what tools can list the layout, and discuss investigation considerations.

General Overview

In this section, we will examine the DOS partition concepts and boot code location. The data structures are discussed in the following section.

Basic MBR Concepts

A disk that is organized using DOS partitions has an MBR in the first 512-byte sector. The MBR contains boot code, a partition table, and a signature value. The boot code contains the instructions that tell the computer how to process the partition table and locate the operating system. The partition table has four entries, each of which can describe a DOS partition. Each entry has the following fields:

  • Starting CHS address
  • Ending CHS address
  • Starting LBA address
  • Number of sectors in partition
  • Type of partition
  • Flags

Each table entry describes the layout of a partition in both CHS and LBA addresses. Recall that the CHS addresses only work for disks less than 8 GB in size, but the LBA addresses allow disks to be terabytes (TB) in size.

The type field in the partition identifies what type of data should exist in the partition. Common examples include FAT, NTFS, and FreeBSD. The next section has a more comprehensive list of partition types. The type value is used differently by different OSes. Linux, for example, does not care about it. You can put a FAT file system inside of a partition that has a type of NTFS, and it will mount it as FAT. Microsoft Windows, on the other hand, relies on it. Windows will not try to mount a file system in a partition if it does not support the partition type. Therefore, if a disk has a FAT file system inside a partition with a Linux file system type, the user will not see the FAT file system from within Windows. This behavior can be used to hide partitions from Windows. For example, some tools will add a bit to a partition type that Windows supports so that it will not be shown when Windows boots again.

Each entry also contains a flag field that identifies which partition is the "bootable" one. This is used to identify where the operating system is located when the computer is booting. Using the four entries in the MBR, we can describe a simple disk layout with up to four partitions. Figure 5.1 shows such a simple disk with two partitions and the MBR in the first sector.

Figure 5.1. A basic DOS disk with two partitions and the MBR.



Extended Partition Concepts

The MBR is a simple method of describing up to four partitions. However, many systems require more partitions than that. For example, consider a 12GB disk that the user wants to divide into six 2GB partitions because he is using multiple operating systems. We cannot describe the six partitions by using the four partition table entries.

The solution to this design problem is what makes DOS partitions so complex. The basic theory behind the solution is to use one, two, or three of the entries in the MBR for normal partitions and then create an "extended partition" that will fill up the remainder of the disk. Before we move on, some definitions may be helpful. A primary file system partition is a partition whose entry is in the MBR and the partition contains a file system or other structured data. A primary extended partition is a partition whose entry is in the MBR, and the partition contains additional partitions. We can see this in Figure 5.2, which has three primary file system partitions and one primary extended partition.

Figure 5.2. A DOS disk with three primary file system partitions and one primary secondary partition.

To consider what goes inside a primary extended partition, you should basically forget about everything we have discussed so far. In the MBR, we saw a central partition table that described several partitions. Here we see a linked list of partitions. The basic theory is that we are going to precede every file system partition with data that describe how big the file system partition is and where we can find the next partition. All these partitions should be located inside of the primary extended partition, which is why it must be as large as possible.

A secondary file system partition, also called a logical partition in Windows, is located inside the primary extended partition bounds and contains a file system or other structured data. Secondary file system partitions are equivalent to the partitions that are described in the MBR except that they are in an extended partition. A secondary extended partition is a partition that contains a partition table and a secondary file system partition. The secondary extended partitions wrap around the secondary file system partitions and describe where the secondary file system partition is located and where the next secondary extended partition is located.

Figure 5.3 shows an example of how secondary partitions work. Secondary Extended #1 contains a partition table that points to Secondary File System #1 and Secondary Extended #2. Secondary Extended #2 contains a partition table that points to Secondary File System #2. It also could point to another secondary extended partition, and this process could repeat until we are out of disk space.

Figure 5.3. The basic theory and layout behind the secondary extended and file system partitions.



Putting the Concepts Together

Now let's put these two partitioning methods together. If we need one to four partitions, we can create them using only the MBR, and we do not need to worry about extended partitions. If we want more than four partitions, we must create up to three primary file system partitions in the MBR and then allocate the rest of the disk to a primary extended partition.

Inside the primary extended partition, we use the linked-list partitioning method. We can optimize the linked-list design that I described in the last section by not making the initial secondary extended partition. Instead, put a partition table at the beginning of the primary extended partition. It can describe one secondary file system and one secondary extended partition.

Consider an example. We have a 12GB disk and we want to break it up into six 2GB partitions. We create the first three 2GB partitions using the first three entries in the MBR, and the remaining 6GB is allocated to a primary extended partition, which spans from 6GB to 12GB.

We need to allocate three more partitions using the linked-list method. We use the partition table in the first sector of the primary extended partition, make a secondary file system partition that spans from 6GB to 8GB, and make a secondary extended partition that spans from 8GB to 10GB. A partition table is inside the secondary extended partition, and it has entries for a secondary file system partition that spans from 8GB to 10GB and an entry for another secondary extended partition that spans from 10GB to 12GB. A partition table is inside the last secondary extended partition, and it has an entry for the final file system partition, which spans from 10GB to 12GB. We see this in Figure 5.4.

Figure 5.4. The layout required for a disk with six file system partitions.

As I have described it and as most documents claim, an extended partition table should have, at most, one entry for a secondary file system partition and one entry for a secondary extended partition. In practice, most operating systems will not generate an error if more than two entries are being used. In fact, in July 2003, I released a 160 MB disk image [Carrier 2003] with six 25 MB DOS partitions to the CFTT Yahoo! Groups list (http://groups.yahoo.com/group/cftt/). The image had a primary extended partition table with two secondary file system partition entries and one secondary extended partition entry. Some forensic tools properly handled the third partition entry, while others ignored it or claimed that the 25 MB partition was a 1 TB partition. This example shows how something as common as DOS partitions can cause problems with analysis tools.

Extended partitions have special types that are used in their partition table entries. To make this confusing partition scheme even more confusing, there is more than one type of extended partition, and they do not differentiate between primary and secondary extended partitions. The common types of extended partitions are "DOS Extended," "Windows 95 Extended," and "Linux Extended."

Boot Code

The boot code in a DOS disk exists in the first 446 bytes of the first 512-byte sector, which is the MBR. The end of the sector contains the partition table. The standard Microsoft boot code processes the partition table in the MBR and identifies which partition has the bootable flag set. When it finds such a partition, it looks in the first sector of the partition and executes the code found there. The code in the start of the partition will be operating system-specific. Boot sector viruses insert themselves into the first 446 bytes of the MBR so that they are executed every time the computer is booted.

It is becoming much more common to have multiple operating systems on a computer. There are two ways to handle this. Windows handles this by having code in the bootable partition that allows a user to select which OS to load. In other words, the boot code in the MBR executes first and loads the Windows bootable code. The Windows bootable code allows a user to choose a different partition from which to boot.

The other method is to change the code in the MBR. The new MBR code presents the user with a list of options, and the user chooses which partition to boot from. This typically requires more code and uses some of the unused sectors that exist before the first partition starts.

Summary

The DOS partition system is complex because each partition table has only four entries in it. Other partition systems discussed later in this chapter and the next have larger partition tables and are, therefore, less complex. The following high-level steps are necessary to list the layout information of a disk with DOS partitions:

  1. The Master Boot Record is read from the first sector of the disk, and the four partition table entries are identified and processed.
  2. When an entry for an extended partition is processed, the first sector of the extended partition is read and its partition table entries are processed in the same manner as the MBR.
  3. When an entry for a non-extended partition is processed, its starting sector and size are displayed. The ending sector address can be determined by adding the starting sector address and the size together and subtracting one.

Data Structures

The previous section reviewed the DOS partition system. This section provides a detailed discussion of the structures that make the system work. If you are not interested in data structures, you can skip this; however, there is an interesting example of extended partitions. This section is organized into three subsections describing the MBR, extended partitions, and show tool output from an example image.

MBR Data Structure

DOS Partition tables exist in the MBR and in the first sector of each extended partition. Conveniently, they all use the same 512-byte structure. The first 446 bytes are reserved for assembly boot code. Code needs to exist in the MBR because it is used when the computer is started, but the extended partitions do not need it and could contain hidden data. The MBR layout in tabular form can be found in Table 5.1.

Table 5.1. Data structures for the DOS partition table.

Byte Range

Description

Essential

0445

Boot Code

No

446461

Partition Table Entry #1 (see Table 5.2)

Yes

462477

Partition Table Entry #2 (see Table 5.2)

Yes

478493

Partition Table Entry #3 (see Table 5.2)

Yes

494509

Partition Table Entry #4 (see Table 5.2)

Yes

510511

Signature value (0xAA55)

No

The partition table has four 16-byte entries. The entries' structures are given in Table 5.2. Note that the CHS addresses are essential for older systems that rely on them, but are not essential on newer systems.

Table 5.2. Data structure for DOS partition entries.

Byte Range

Description

Essential

00

Bootable Flag

No

13

Starting CHS Address

Yes

44

Partition Type (see Table 5.3)

No

57

Ending CHS Address

Yes

811

Starting LBA Address

Yes

1215

Size in Sectors

Yes

The bootable flag is not always necessary. The standard boot code for a system with only one OS looks for an entry whose flag is set to 0x80. For example, if a system has Microsoft Windows on it and the disk is partitioned into two partitions, the partition with the operating system on it (C:windows, for example) will have the bootable flag set. On the other hand, if the boot code prompts the user to choose which partition to boot from, the bootable flag is not necessary. Although, some boot programs will set the bootable flag after the user chooses to boot that partition.

The starting and ending CHS addresses have an 8-bit head value, a 6-bit sector value, and a 10-bit cylinder value. In theory, either the CHS addresses or the LBA addresses need to be set for each partition, but not both. It is up to the OS and the code that is used to boot the system to determine which values need to be set. For example, Windows 98 and ME use the CHS addresses for partitions in the first 7.8GB of the disk, but Windows 2000 and beyond always ignore the CHS addresses [Microsoft 2003]. Some partitioning tools set both when possible for backward compatibility. The usage of these fields is application-dependent.

The partition type field identifies the file system type that should be in the partition. A list of common partition types is given in Table 5.3. A more detailed list of partition types can be found in Partition types [Brouwer 2004].

Table 5.3. Some of the type values for DOS partitions.

Type

Description

0x00

Empty

0x01

FAT12, CHS

0x04

FAT16, 1632 MB, CHS

0x05

Microsoft Extended, CHS

0x06

FAT16, 32 MB2GB, CHS

0x07

NTFS

0x0b

FAT32, CHS

0x0c

FAT32, LBA

0x0e

FAT16, 32 MB2GB, LBA

0x0f

Microsoft Extended, LBA

0x11

Hidden FAT12, CHS

0x14

Hidden FAT16, 1632 MB, CHS

0x16

Hidden FAT16, 32 MB2GB, CHS

0x1b

Hidden FAT32, CHS

0x1c

Hidden FAT32, LBA

0x1e

Hidden FAT16, 32 MB2GB, LBA

0x42

Microsoft MBR. Dynamic Disk

0x82

Solaris x86

0x82

Linux Swap

0x83

Linux

0x84

Hibernation

0x85

Linux Extended

0x86

NTFS Volume Set

0x87

NTFS Volume Set

0xa0

Hibernation

0xa1

Hibernation

0xa5

FreeBSD

0xa6

OpenBSD

0xa8

Mac OSX

0xa9

NetBSD

0xab

Mac OSX Boot

0xb7

BSDI

0xb8

BSDI swap

0xee

EFI GPT Disk

0xef

EFI System Partition

0xfb

Vmware File System

0xfc

Vmware swap

Notice how many partition types exist for Microsoft file systems in the 0x01 to 0x0f range. The reason is that Microsoft operating systems use the partition type to determine how to read and write data from the partition. Recall from Chapter 2, "Computer Foundations," that Windows can use either INT 13h or the extended INT 13h BIOS routines. The extended INT 13h routines are needed for accessing disks larger than 8.1GB and use LBA addressing instead of CHS. Therefore, the FAT16 0x04 and 0x0E types are the same except that the OS should use the extended routines for the latter type. Similarly, 0x0B and 0x0C types are the normal and extended versions of FAT32 and 0x05, and 0x0F types are the normal and extended for extended partitions [Microsoft 2004b]. The "hidden" versions of these partition types have a 1 instead of a 0 in the upper nibble, and various tools create them.

To illustrate the MBR and the partition tables, we will extract the sectors from an actual system and parse the structures by hand. The system is a dual boot Microsoft Windows and Linux system, and it has eight file system partitions.

The first example is from the first sector of the disk. This output is from the xxd tool in Linux, but similar data can be found using a hex editor in Windows or UNIX. The following command was used in Linux:


# dd if=disk3.dd bs=512 skip=0 count=1 | xxd

The left column is the byte offset in decimal, the middle eight columns are the data in hexadecimal format, and the final column is the data translated into ASCII. The data are from an IA32-based system, which is little-endian and stores numbers with the least significant byte at the lowest address. Therefore, the order of the bytes in the middle columns may need to be reversed. The MBR of the disk is as follows:


# dd if=disk3.dd bs=512 skip=0 count=1 | xxd

0000000: eb48 9010 8ed0 bc00 b0b8 0000 8ed8 8ec0 .H..............

[REMOVED]

0000384: 0048 6172 6420 4469 736b 0052 6561 6400 .Hard Disk.Read.

0000400: 2045 7272 6f72 00bb 0100 b40e cd10 ac3c Error.........<

0000416: 0075 f4c3 0000 0000 0000 0000 0000 0000 .u..............

0000432: 0000 0000 0000 0000 0000 0000 0000 0001 ................

0000448: 0100 07fe 3f7f 3f00 0000 4160 1f00 8000 ....?.?...A`....

0000464: 0180 83fe 3f8c 8060 1f00 cd2f 0300 0000 ....?..`.../....

0000480: 018d 83fe 3fcc 4d90 2200 40b0 0f00 0000 ....?.M.".@.....

0000496: 01cd 05fe ffff 8d40 3200 79eb 9604 55aa .......@2.y...U.

The first 446 bytes contain boot code. The 0xAA55 signature value can be seen in the last two bytes of the sector (although they are reversed in the output because of the endian ordering). The partition table is in bold and starts with the 0x0001 at offset 446. Each line in the output has 16 bytes, and each table entry is 16 bytes. Therefore, the second entry begins one line below the first entry with 0x8000. Using the structure previously outlined, the four partition table entries are shown in Table 5.4. The values are shown in hexadecimal format with the decimal value in parenthesis of important values.

Table 5.4. The contents of the primary partition table in the example disk image.

#

Flag

Type

Starting Sector

Size

1

0x00

0x07

0x0000003f (63)

0x001f6041 (2,056,257)

2

0x80

0x83

0x001f6080 (2,056,320)

0x00032fcd (208,845)

3

0x00

0x83

0x0022904d (2,265,165)

0x000fb040 (1,028,160)

4

0x00

0x05

0x0032408d (3,293,325)

0x0496eb79 (76,999,545)

Using Table 5.4 and the partition type field in Table 5.3, we can guess what type of data are in each partition. The first partition should be for an NTFS file system (type 0x07), the second and third partitions should be for Linux file systems (0x83), and the fourth partition is an extended partition (0x05). The second entry is set to be bootable. The extended partition should have been expected because it was previously mentioned that there would be a total of eight partitions. The disk layout from this partition table is shown in Figure 5.5.

Figure 5.5. Disk layout after processing the first partition table in example (not to scale).



Extended Partition Data Structures

Recall that the extended partitions use the same structure in the first sector as the MBR does, but they use it to make a linked list. The partition table entries are slightly different, though, because the starting sector addresses are relative to other places on the disk besides the beginning of the disk. Furthermore, the starting sector of a secondary file system partition is relative to a different place than the starting sector of a secondary extended partition.

The starting address for a secondary file system entry is relative to the current partition table. This is intuitive because the secondary extended partitions work as wrappers around the file system partitions; therefore, they have the starting address relative to themselves. On the other hand, the starting address for a secondary extended partition entry is relative to the primary extended partition.

Let's step through the example shown in Figure 5.6. It has a primary extended partition that starts in sector 1,000 with a length of 11,000 sectors. Its partition table has two entries. The first is for a FAT file system with a starting sector of 63, which is added to the sector of the current partition table to get 1,063. The second entry is for an extended partition and its starting sector is 4,000. That is added to the start of the primary extended partition, which is sector 1,000, and we get sector 5,000.

Figure 5.6. Disk with three secondary extended partitions. Note that the starting location of the secondary extended partitions is relative to the start of the primary extended partition, sector 1000.

Now let's jump ahead to that secondary extended partition (in sector 5,000). The first partition table entry is for an NTFS file system, and its starting value is 63, which is added to the address of the current partition table and to get sector 5,063. The second entry is for an extended partition, and its starting value is 6,500, which is added to the sector of the primary extended partition and to get sector 7,500.

We'll do one more round to make sure it is clear. The next extended partition starts in sector 7,500. The first entry is for an EXT3FS file system with a starting value of 63, which is added to 7,500 to get sector 7,563. The second entry is for a secondary extended partition, and its starting value is 9,000, which is added to 1,000 to get sector 10,000.

Return to the actual system that we parsed by hand. The following are the contents of the first sector of the primary extended partition, which is located in sector 3,293,325:


# dd if=disk3.dd bs=512 skip=3293325 count=1 | xxd

[REMOVED]

0000432: 0000 0000 0000 0000 0000 0000 0000 0001 ................

0000448: 01cd 83fe 7fcb 3f00 0000 0082 3e00 0000 ......?.....>...

0000464: 41cc 05fe bf0b 3f82 3e00 40b0 0f00 0000 A.....?.>.@.....

0000480: 0000 0000 0000 0000 0000 0000 0000 0000 ................

0000496: 0000 0000 0000 0000 0000 0000 0000 55aa ..............U.

The four partition table entries are highlighted, and we see that the final two entries are empty. The first two partition table entries are parsed into the contents of Table 5.5 (the partition numbering is continued from Table 5.4):

Table 5.5. The contents of the primary extended partition table in the example disk image.

#

Flag

Type

Starting Sector

Size

5

0x00

0x83

0x0000003f (63)

0x003e8200 (4,096,572)

6

0x00

0x05

0x003e823f (4,096,575)

0x000fb040 (1,028,160)

Entry #5 has a type for a Linux file system (0x83), so it is a secondary file system partition, and its starting sector is relative to the start of the current extended partition (sector 3,293,325).


3,293,325 + 63 = 3,293,388

Entry #6 has a type for a DOS Extended partition, so its starting sector is relative to the start of the primary extended partition, which is the current partition.


3,293,325 + 4,096,575 = 7,389,900

The disk layout, as we know it, can be found in Figure 5.7. Before we continue, note the sizes of the two partitions. In the MBR, the primary extended partition had a size of 76,999,545 sectors. In this table, the size of the next secondary extended partition is only 1,028,160 sectors. Recall that the primary extended partition has a size of all the secondary file systems and secondary extended partitions, but the secondary extended partitions have a size that is equal to the size of only the next secondary file system partition plus the size needed for a partition table.

Figure 5.7. Disk layout after processing the second partition table (not to scale).

We can continue the example by examining the next secondary extended partition, which is located in sector 7,389,900. Its contents are shown in Table 5.6.

Table 5.6. The contents of the first secondary extended partition table in the example disk image.

#

Flag

Type

Starting Sector

Size

7

0x00

0x82

0x0000003f (63)

0x000fb001 (1,028,097)

8

0x00

0x05

0x004e327f (5,124,735)

0x000fb040 (1,028,160)

Entry #7 is for a Linux swap partition, so it is a secondary file system, and its starting sector address is relative to the current extended partition, which is sector 7,389,900.


7,389,900 + 63 = 7,389,963

Entry #8 is for a DOS Extended file system, so its starting sector address is relative to the primary extended partition, which is sector 3,293,325.


3,293,325 + 5,124,735 = 8,418,060

The disk layout with the information from this partition table can be found in Figure 5.8. The full contents of the example partition table are given in the next section when we look at tools that print the partition table contents.

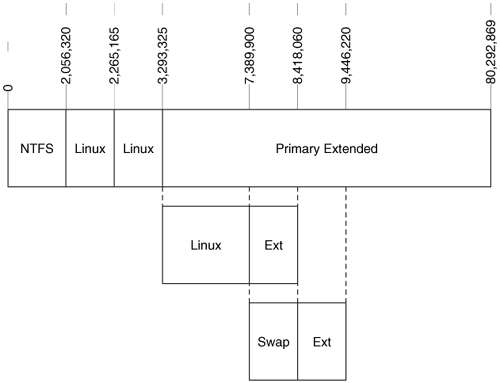

Figure 5.8. Disk layout after processing the third partition table (not to scale).



Example Image Tool Output

Now that the internal structure of the partition system is known, we will show how some of the analysis tools process them. For those who actually enjoy parsing the structure by hand and never use a tool, you can skip this section. Two Linux tools will be shown here. Other Windows tools, such as full forensic analysis tools and hex editors, also perform this function.

The fdisk command comes with Linux and is different from the tool with the same name that comes with Windows. fdisk can be run on a Linux device or a disk image file generated by dd. The -l flag forces it to list the partitions instead of going into interactive mode where the partitions could also be edited. The -u flag forces the output to be in sectors instead of cylinders. The output of the DOS Partitioned disk that we parsed by hand is as follows:


# fdisk lu disk3.dd

Disk disk3.dd: 255 heads, 63 sectors, 0 cylinders

Units = sectors of 1 * 512 bytes



 Device Boot Start End Blocks Id System

disk3.dd1 63 2056319 1028128+ 7 HPFS/NTFS

disk3.dd2 * 2056320 2265164 104422+ 83 Linux

disk3.dd3 2265165 3293324 514080 83 Linux

disk3.dd4 3293325 80292869 38499772+ 5 Extended

disk3.dd5 3293388 7389899 2048256 83 Linux

disk3.dd6 7389963 8418059 514048+ 82 Linux swap

disk3.dd7 8418123 9446219 514048+ 83 Linux

disk3.dd8 9446283 17639369 4096543+ 7 HPFS/NTFS

disk3.dd9 17639433 48371714 15366141 83 Linux

We can observe several things from this output. The output lists only the primary extended partition (disk3.dd4). The secondary extended partition in which the Linux swap partition is located is not displayed. This is acceptable for most circumstances because only the primary and secondary file system partitions are needed for an investigation, but it should be noted that you are not seeing all partition table entries.

The mmls tool in The Sleuth Kit provides slightly different information. Sectors that are unused by a partition are marked as such, the location of the partition tables is marked, and the extended partition locations are noted. Using the same disk as we used for the first fdisk example, the following is seen:


# mmls t dos disk3.dd

Units are in 512-byte sectors

 Slot Start End Length Description

00: ----- 0000000000 0000000000 0000000001 Table #0

01: ----- 0000000001 0000000062 0000000062 Unallocated

02: 00:00 0000000063 0002056319 0002056257 NTFS (0x07)

03: 00:01 0002056320 0002265164 0000208845 Linux (0x83)

04: 00:02 0002265165 0003293324 0001028160 Linux (0x83)

05: 00:03 0003293325 0080292869 0076999545 DOS Extended (0x05)

06: ----- 0003293325 0003293325 0000000001 Table #1

07: ----- 0003293326 0003293387 0000000062 Unallocated

08: 01:00 0003293388 0007389899 0004096512 Linux (0x83)

09: 01:01 0007389900 0008418059 0001028160 DOS Extended (0x05)

10: ----- 0007389900 0007389900 0000000001 Table #2

11: ----- 0007389901 0007389962 0000000062 Unallocated

12: 02:00 0007389963 0008418059 0001028097 Linux Swap (0x82)

13: 02:01 0008418060 0009446219 0001028160 DOS Extended (0x05)

14: ----- 0008418060 0008418060 0000000001 Table #3

15: ----- 0008418061 0008418122 0000000062 Unallocated

16: 03:00 0008418123 0009446219 0001028097 Linux (0x83)

17: 03:01 0009446220 0017639369 0008193150 DOS Extended (0x05)

18: ----- 0009446220 0009446220 0000000001 Table #4

19: ----- 0009446221 0009446282 0000000062 Unallocated

20: 04:00 0009446283 0017639369 0008193087 NTFS (0x07)

21: 04:01 0017639370 0048371714 0030732345 DOS Extended (0x05)

22: ----- 0017639370 0017639370 0000000001 Table #5

23: ----- 0017639371 0017639432 0000000062 Unallocated

24: 05:00 0017639433 0048371714 0030732282 Linux (0x83)

The 'Unallocated' entries are for the space in between partitions and for the space between the end of the partition table and the beginning of the first partition. The output of mmls gives both the ending address and the size, so it can be easily used to extract the partitions with dd.

The output of mmls is sorted by the starting sector of the partition, so the first column is only a counter for each entry and has no correlation to the partition table entry. The second column shows what partition table the partition was found in and which entry in the table. The first number shows which table, 0 being the primary table and 1 being the primary extended table, and the second number shows which entry in the table. The sorted output helps to identify sectors that are not partitioned. For example, consider this image:


# mmls t dos disk1.dd

Units are in 512-byte sectors

 Slot Start End Length Description

00: ----- 0000000000 0000000000 0000000001 Table #0

01: ----- 0000000001 0000000062 0000000062 Unallocated

02: 00:00 0000000063 0001028159 0001028097 Win95 FAT32 (0x0B)

03: ----- 0001028160 0002570399 0001542240 Unallocated

04: 00:03 0002570400 0004209029 0001638630 OpenBSD (0xA6)

05: 00:01 0004209030 0006265349 0002056320 NTFS (0x07)

In this output, we see that the NTFS partition is in a slot that is before the OpenBSD partition, but the NTFS partition starts after the OpenBSD partition. We can also see that there is no entry '00:02,' and the 1,542,240 sectors in between the FAT and OpenBSD partitions are also marked as unallocated.

Part I: Foundations

Digital Investigation Foundations

Computer Foundations

Hard Disk Data Acquisition

Part II: Volume Analysis

Volume Analysis

PC-based Partitions

Server-based Partitions

Multiple Disk Volumes

Part III: File System Analysis

File System Analysis

FAT Concepts and Analysis

FAT Data Structures

NTFS Concepts

NTFS Analysis

NTFS Data Structures

Ext2 and Ext3 Concepts and Analysis

Ext2 and Ext3 Data Structures

UFS1 and UFS2 Concepts and Analysis

UFS1 and UFS2 Data Structures

Summary

Bibliography

Bibliography



File System Forensic Analysis
File System Forensic Analysis
ISBN: 0321268172
EAN: 2147483647
Year: 2006
Pages: 184
Authors: Brian Carrier

Flylib.com © 2008-2020.
If you may any questions please contact us: flylib@qtcs.net
