C.2. RPC Definitions

graphics/cfig02.gif

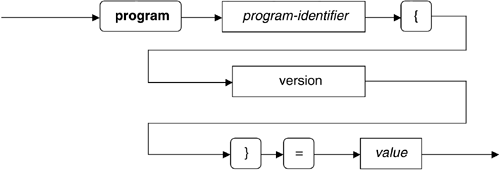

C.2.1 Program-Definition

graphics/cfig03.gif

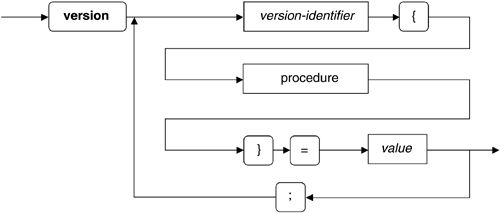

C.2.1.1 Version

graphics/cfig04.gif

C.2.1.2 Procedure

graphics/cfig05.gif

C.2.2 Const-Definition

graphics/cfig06.gif

C.2.3 Enum-Definition

graphics/cfig07.gif

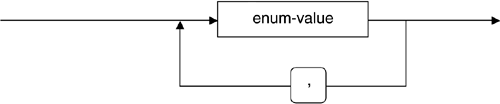

C.2.3.1 Enum-Value-List

graphics/cfig08.gif

C.2.3.2 Enum value

graphics/cfig09.gif

C.2.4 Typedef-Definition

graphics/cfig10.gif

C.2.4.1 Declaration [2]

[2] These are type declarations, not variable declarations (e.g., int my_number ), which are unsupported by rpcgen .

graphics/cfig11.gif

C.2.4.2 Simple Declaration

graphics/cfig12.gif

C.2.4.3 Fixed-Array Declaration

graphics/cfig13.gif

C.2.4.4 Variable-Array Declaration [3]

[3] The integer value in angle brackets indicates a maximum size or, if empty, an array of any size .

graphics/cfig14.gif

C.2.4.5 Pointer Declaration [4]

[4] Not actually an address. Technically called optional-data; often used for references to linked structures.

graphics/cfig15.gif

C.2.5 Structure-Definition

graphics/cfig16.gif

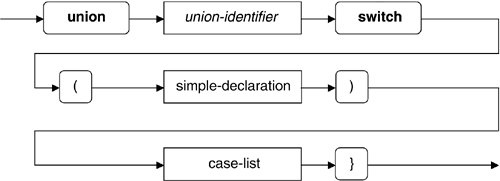

C.2.6 Union-Definition [5]

[5] In RPC, unions are closer in syntax (and spirit) to variant records in Pascal are than standard C/C++ unions.

graphics/cfig17.gif

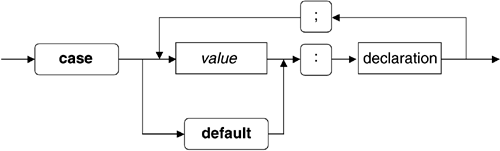

C.2.6.1 Case-List

graphics/cfig18.gif
