[Page 353 (continued)]12.1. Secure Hash Algorithm The Secure Hash Algorithm (SHA) was developed by the National Institute of Standards and Technology (NIST) and published as a federal information processing standard (FIPS 180) in 1993; a revised version was issued as FIPS 180-1 in 1995 and is generally referred to as SHA-1. The actual standards document is entitled Secure Hash Standard. SHA is based on the hash function MD4 and its design closely models MD4. SHA-1 is also specified in RFC 3174, which essentially duplicates the material in FIPS 180-1, but adds a C code implementation. SHA-1 produces a hash value of 160 bits. In 2002, NIST produced a revised version of the standard, FIPS 180-2, that defined three new versions of SHA, with hash value lengths of 256, 384, and 512 bits, known as SHA-256, SHA-384, and SHA-512 (Table 12.1). These new versions have the same underlying structure and use the same types of modular arithmetic and logical binary operations as SHA-1. In 2005, NIST announced the intention to phase out approval of SHA-1 and move to a reliance on the other SHA versions by 2010. Shortly thereafter, a research team described an attack in which two separate messages could be found that deliver the same SHA-1 hash using 269 operations, far fewer than the 280 operations previously thought needed to find a collision with an SHA-1 hash [WANG05]. This result should hasten the transition to the other versions of SHA. Table 12.1. Comparison of SHA Parameters| | SHA-1 | SHA-256 | SHA-384 | SHA-512 |
|---|
Message digest size | 160 | 256 | 384 | 512 | Message size | <264 | <264 | <2128 | <2128 | Block size | 512 | 512 | 1024 | 1024 | Word size | 32 | 32 | 64 | 64 | Number of steps | 80 | 64 | 80 | 80 | Security | 80 | 128 | 192 | 256 | Notes: 1. All sizes are measured in bits. 2. Security refers to the fact that a birthday attack on a message digest of size n produces a collision with a workfactor of approximately 2n/2 |
In this section, we provide a description of SHA-512. The other versions are quite similar. SHA-512 Logic The algorithm takes as input a message with a maximum length of less than 2128 bits and produces as output a 512-bit message digest. The input is processed in 1024-bit blocks. Figure 12.1 depicts the overall processing of a message to produce a digest.
[Page 354] Figure 12.1. Message Digest Generation Using SHA-512
This follows the general structure depicted in Figure 11.9. The processing consists of the following steps: - Step 1: Append padding bits. The message is padded so that its length is congruent to 896 modulo 1024 [length
 896 (mod 1024)]. Padding is always added, even if the message is already of the desired length. Thus, the number of padding bits is in the range of 1 to 1024. The padding consists of a single 1-bit followed by the necessary number of 0-bits.
- Step 2: Append length. A block of 128 bits is appended to the message. This block is treated as an unsigned 128-bit integer (most significant byte first) and contains the length of the original message (before the padding).
The outcome of the first two steps yields a message that is an integer multiple of 1024 bits in length. In Figure 12.1, the expanded message is represented as the sequence of 1024-bit blocks M1, M2,..., MN, so that the total length of the expanded message is N x 1024 bits.
- Step 3: Initialize hash buffer. A 512-bit buffer is used to hold intermediate and final results of the hash function. The buffer can be represented as eight 64-bit registers (a, b, c, d, e, f, g, h). These registers are initialized to the following 64-bit integers (hexadecimal values):
a = 6A09E667F3BCC908
b = BB67AE8584CAA73B
c = 3C6EF372FE94F82B
c = A54FF53A5F1D36F1
e = 510E527FADE682D1
f = 9B05688C2B3E6C1F
g = 1F83D9ABFB41BD6B
h = 5BE0CDI9137E2179
[Page 355]These values are stored in big-endian format, which is the most significant byte of a word in the low-address (leftmost) byte position. These words were obtained by taking the first sixty-four bits of the fractional parts of the square roots of the first eight prime numbers.
- Step 4: Process message in 1024-bit (128-word) blocks. The heart of the algorithm is a module that consists of 80 rounds; this module is labeled F in Figure 12.1. The logic is illustrated in Figure 12.2.

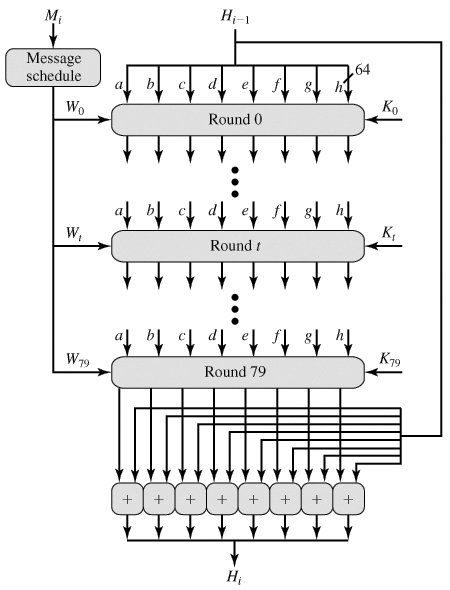

Figure 12.2. SHA-512 Processing of a Single 1024-Bit Block
Each round takes as input the 512-bit buffer value abcdefgh, and updates the contents of the buffer. At input to the first round, the buffer has the value of the intermediate hash value, Hi-1. Each round t makes use of a 64-bit value Wt derived from the current 1024-bit block being processed (Mi) These values are derived using a message schedule described subsequently. Each round also makes use of an additive constant Kt where 0  79 indicates one of the 80 rounds. These words represent the first sixty-four bits of the fractional parts of the cube roots of the first eighty prime numbers. The constants provide a "randomized" set of 64-bit patterns, which should eliminate any regularities in the input data.
The output of the eightieth round is added to the input to the first round (Hi-1)to produce Hi. The addition is done independently for each of the eight words in the buffer with each of the corresponding words in Hi-1 using addition modulo 264.
[Page 356]- Step 5: Output. After all N 1024-bit blocks have been processed, the output from the Nth stage is the 512-bit message digest.
We can summarize the behavior of SHA-512 as follows:
H0 | = IV | Hi | = SUM64(Hi-1, abcdefghi) | MD | = HN |
where
IV | = initial value of the abcdefgh buffer, defined in step 3 | abcdefghi | = the output of the last round of processing of the ith message block | N | = the number of blocks in the message (including padding and length fields) | SUM64 | = Addition modulo 264 performed separately on each word of the pair of inputs | MD | = final message digest value |
SHA-512 Round Function Let us look in more detail at the logic in each of the 80 steps of the processing of one 512-bit block (Figure 12.3). Each round is defined by the following set of equations:
where t | =step number; 0 79 | Ch(e, f, g) | = (e AND f)  (NOT g) the conditional function: If e then f else g | Maj(a, b, c) | = (a AND b) (c) (c) the function is true only of the majority (two or three) of the arguments are true. |
[Page 357]
ROTRn(x) | = circular right shift (rotation) of the 64-bit argument x by n bits | Wt | = a 64-bit word derived from the current 512-bit input block | Kt | = a 64-bit additive constant | + | = addition modulo 264 |

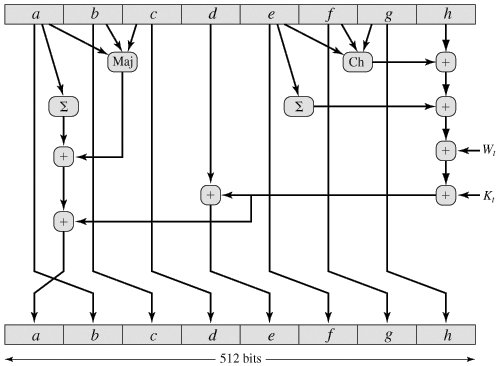

Figure 12.3. Elementary SHA-512 Operation (single round)
It remains to indicate how the 64-bit word values Wt are derived from the 1024-bit message. Figure 12.4 illustrates the mapping. The first 16 values of Wt are taken directly from the 16 words of the current block. The remaining values are defined as follows:
where
ROTRn(x) | = circular right shift (rotation) of the 64-bit argument x by n bits | SHRn(x) | = left shift of the 64-bit argument x by n bits with padding by zeros on the right |
Figure 12.4. Creation of 80-word Input Sequence for SHA-512 Processing of Single Block (This item is displayed on page 358 in the print version)
Thus, in the first 16 steps of processing, the value of Wt is equal to the corresponding word in the message block. For the remaining 64 steps, the value of Wt consists of the circular left shift by one bit of the XOR of four of the preceding values of Wt, with two of those values subjected to shift and rotate operations. This introduces a great deal of redundancy and interdependence into the message blocks that are compressed, which complicates the task of finding a different message block that maps to the same compression function output.
