Distributed Computing


When many similar systems are on a network, it is often desirable to share common files and utilities among them. For example, a system administrator might choose to keep a copy of the system documentation on one computer's disk and to make those files available to remote systems. In this case, the system administrator configures the files so users who need to access the online documentation are not aware that the files are stored on a remote system. This type of setup, which is an example of distributed computing, not only conserves disk space but also allows you to update one central copy of the documentation rather than tracking down and updating copies scattered throughout the network on many different systems.

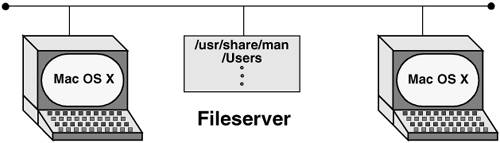

Figure 10-2 illustrates a fileserver that stores the system manual pages and users' home directories. With this arrangement, a user's files are always available to that userno matter which system the user logs in on. Each system's disk might contain a directory to hold temporary files as well as a copy of the operating system. Apple encourages the use of Apple Filing Protocol (AFP) instead of NFS for file sharing.

Figure 10-2. A fileserver


The Client/Server Model

Mainframe model

The client/server model was not the first computational model. First came the mainframe, which follows a one-machine-does-it-all model. That is, all the intelligence is in one system, including the data and the program that manipulates and reports on the data. Users connect to a mainframe using terminals.

File-sharing model

With the introduction of PCs, file-sharing networks became available. Data was downloaded from a shared location to a user's PC, where a program then manipulated the data. The file-sharing model ran into problems as networks expanded and more users needed access to the data.

Client/server model

In the client/server model, a client uses a protocol, such as FTP, to request services, and a server provides the services that the client requests. Rather than providing data files as the file-sharing model does, the server in a client/server relationship is a database that provides only those pieces of information that the client needs or requests.

The client/server model dominates UNIX and Mac OS X system networking and underlies most of the network services described in this book. FTP, NFS, DNS, email, and HTTP (the Web browsing protocol) all rely on the client/server model. Some servers, such as Web servers and browser clients, are designed to interact with specific utilities. Other servers, such as those supporting DNS, communicate with one another, in addition to answering queries from a variety of clients. Clients and servers can reside on the same or different systems running the same or different operating systems. The systems can be proximate or thousands of miles apart. A system that is a server to one system can turn around and act as a client to another. A server can reside on a single system or, as is the case with DNS, be distributed among thousands of geographically separated systems running many different operating systems.

Peer-to-peer model

Contrast the client/server model to the peer-to-peer (PTP) model, in which either program can initiate a transaction. PTP protocols are common on small networks. Microsoft's Network Neighborhood and Apple's AppleTalk both rely on broadcast-based PTP protocols for browsing and automatic configuration. The Zeroconf multicast DNS protocol is a PTP alternative DNS for small networks. The highest-profile PTP networks are those used for file sharing, such as Kazaa and GNUtella. Many of these networks are not pure PTP topologies. Pure PTP networks do not scale well, so networks such as Napster and Kazaa employ a hybrid approach.

DNS: Domain Name Service

DNS is a distributed service: Nameservers on thousands of machines around the world cooperate to keep the database up-to-date. The database itself, which contains the information that maps hundreds of thousands of alphanumeric hostnames to numeric IP addresses, does not exist in one place. That is, no system has a complete copy of the database. Instead, each system that runs DNS knows about the hosts that are local to that site and understands how to contact other nameservers to learn about other, nonlocal hosts.

Like the Mac OS X filesystem, DNS is organized hierarchically. Each country has an ISO (International Organization for Standardization) country code designation as its domain name. (For example, AU represents Australia, IL is Israel, and JP is Japan; see www.iana.org/cctld/cctld.htm for a complete list.) Although the United States is represented in the same way (US) and uses the standard two-letter Postal Service abbreviations to identify the next level of the domain, only governments and a few organizations use these codes. Schools in the US domain are represented by a third- (and sometimes second-) level domain: k12. For example, the domain name for Myschool in New York state could be www.myschool.k12.ny.us.

Following is a list of the six original top-level domains. These domains are used extensively within the United States and, to a lesser degree, by users in other countries:

COM

Commerical enterprises

EDU

Educational institutions

GOV

Nonmilitary government agencies

MIL

Military government agencies

NET

Networking organizations

ORG

Other (often nonprofit) organizations


As this book was being written, the following additional top-level domains had been approved for use:

AERO

Air-transport industry

BIZ

Business

COOP

Cooperatives

INFO

Unrestricted use

MUSEUM

Museums

NAME

Name registries


Like Internet addresses, domain names were once assigned by the Network Information Center (NIC, page 393). Now they are assigned by several companies. A system's full name, referred to as its fully qualified domain name (FQDN), is unambiguous in the way that a simple hostname cannot be. The system okeeffe.berkeley.edu at the University of California at Berkeley (Figure 10-3) is not the same as one named okeeffe.moma.org, which might represent a host at the Museum of Modern Art. The domain name not only tells you something about where the system is located but also adds enough diversity to the namespace to avoid confusion when different sites choose similar names for their systems.

Figure 10-3. Top-level domains


Unlike the filesystem hierarchy, the top-level domain name appears last (reading from left to right). Also, domain names are not case sensitive. The names okeeffe.berkeley.edu, okeeffe.Berkeley.edu, and okeeffe.Berkeley.EDU refer to the same computer. Once a domain has been assigned, the local site is free to extend the hierarchy to meet local needs.

With DNS, mail addressed to user@example.com can be delivered to the computer named example.com that handles the corporate mail and knows how to forward messages to user mailboxes on individual machines. As the company grows, the site administrator might decide to create organizational or geographical subdomains. The name delta.ca.example.com might refer to a system that supports California offices, with alpha.co.example.com dedicated to Colorado. Functional subdomains might be another choice, with delta.sales.example.com and alpha.dev.example.com representing the sales and development divisions, respectively.

BIND

On Mac OS X systems, the lookupd daemon handles lookup requests, often delegating them to other servers. A system that is acting as a nameserver will run BIND (Berkeley Internet Name Domain). BIND follows the client/server model. On any given local network, one or more systems may be running a nameserver, supporting all the local hosts as clients. When it wants to send a message to another host, a system queries the nearest nameserver to learn the remote host's IP address. The client, called a resolver, may be a process running on the same computer as the nameserver, or it may pass the request over the network to reach a server. To reduce network traffic and accelerate name lookups, the local nameserver has some knowledge of distant hosts. If the local server must contact a remote server to pick up an address, when the answer comes back, the local server adds that address to its internal table and reuses it for a while. The nameserver deletes the nonlocal information before it can become outdated. Refer to "TTL" on page 958.

How the system translates symbolic hostnames into addresses is transparent to most users; only the system administrator of a networked system needs to be concerned with the details of name resolution. Systems that use DNS for name resolution are generally capable of communicating with the greatest number of hostsmore than would be practical to maintain in a /etc/hosts file or private NetInfo database (page 441).

Three common sources are referenced for hostname resolution: NetInfo, DNS, and system files (such as /etc/hosts). The default behavior is to check the system files first, then Netinfo, then DNS. This behavior is controlled by the lookupd daemon. The lookupd man page explains how you can change the behavior.

Ports

Ports are logical channels on a network interface and are numbered from 1 to 65,535. Each network connection is uniquely identified by the IP address and port number of each endpoint.

In a system that has many network connections open simultaneously, the use of ports keeps packets (page 946) flowing to and from the appropriate programs. A program that needs to receive data binds to a port and then uses that port for communication.

Privileged ports

Services are associated with specific ports, generally with numbers less than 1,024. These ports are called privileged (or reserved) ports. For security reasons, only root can bind to privileged ports. A service run on a privileged port provides assurance that the service is being provided by someone with authority over the system, except that any user on Windows 98 and earlier Windows systems can bind to any port. Commonly used ports include 22 (SSH), 23 (TELNET), 80 (HTTP), 111 (Sun RPC), and 201208 (AppleTalk).

NFS: Network Filesystem

The NFS (Network Filesystem) protocol allows a server to share selected local directory hierarchies with client systems on a heterogeneous network. Files on the remote fileserver appear as if they are present on the local system.

Optional: Internet Services

Mac OS X Internet services are provided by daemons that run continuously or by a daemon that is started automatically by launchd (page 460). Under OS X version 10.3 and earlier, daemons are started by xinetd (page 459). The xinetd and launchd daemons are called superservers (page 456). The /etc/services file lists network services (for example, telnet, ftp, ssh) and their associated numbers. Any service that uses TCP/IP or UDP/IP has an entry in this file. IANA (Internet Assigned Numbers Authority) maintains a database of all permanent, registered services. The /etc/services file usually lists a small, commonly used subset of services. Visit www.rfc.net/rfc1700.html for more information and a complete list of registered services.

Most of the daemons (the executable files) are stored in /usr/sbin or /usr/libexec. By convention, the names of many daemons end with the letter d to distinguish them from utilities (one common daemon whose name does not end in d is sendmail). The prefix rpc. is often used for daemon names. Look at /usr/sbin/*d to see a list of many of the daemon programs on the local system. Refer to "Startup Scripts" on page 436 for information about starting and stopping these daemons.

As an example of how a daemon works, consider what happens when you run ssh. The local system contacts the ssh daemon (sshd) on the remote system to establish a connection. The two systems negotiate the connection according to a fixed protocol. Each system identifies itself to the other, and then they take turns asking each other specific questions and waiting for valid replies. Each network service follows its own protocol.

In addition to the daemons that support the utilities described up to this point, many other daemons support system-level network services that you will not typically interact with. Some of these daemons are listed in Table 10-4. Not all of these daemons are enabled by default under Mac OS X. Some must be enabled from the command line; they cannot be enabled using the graphical system administration tools.

Table 10-4. Common daemons

Daemon

Used for or by

Function

cron

Run at system startup

Used for periodic execution of tasks, this daemon looks in the /var/cron/tabs directory for files with filenames that correspond to users' login names. It also looks at the /etc/crontab file. When a task comes up for execution, cron executes it as the user who owns the file that describes the task.

fingerd

finger

Handles requests for user information from the finger utility. Launched by launchd.

ftpd

FTP

Handles FTP requests. Refer to "ftp: Transfers Files over a Network" on page 405. Launched by launchd.

httpd

HTTP

The Web server daemon (Apache).

launchd

Internet superserver

Listens for service requests on network connections and starts up the appropriate daemon to respond to any particular request. Because of launchd, a system does not need the daemons running all the time to handle various network requests. For more information refer to "The launchd Superserver" on page 456. In Mac OS X 10.3 and earlier, daemons are launchd by xinetd.

ntpd

NTP

Synchronizes time on network computers. It requires a /etc/ntp.conf file. For more information go to www.ntp.org. The Date & Time preferences in System Preferences can configure ntpd automatically through the Set date & time automatically check box.

portmap

RPC

Maps incoming requests for RPC service numbers to TCP or UDP port numbers on the local system. Refer to "RPC Network Services" on page 417.

postfix

Mail programs

Replaces the sendmail daemon and does the same things sendmail does on other systems. The postfix daemon always listens on port 25 for incoming mail connections and then calls a local delivery agent, such as /bin/mail.

rexecd

rexec

Allows a remote user with a valid username and password to run programs on a system. Its use is generally deprecated for security reasons, but certain programs, such as PC-based X servers, may still have it as an option. Launched by launchd, but normally disabled.

smbd, nmbd

Samba

Allow Windows PCs to share files and printers with Mac OS X computers.

sshd

ssh, scp

Enables secure logins between remote systems.

syslogd

System log

Transcribes important system events and stores them in files and/or forwards them to users or another host running the syslogd daemon. This daemon is configured with /etc/syslog.conf and used with the syslog or logger utilities.

talkd

talk

Allows you to have a conversation with another user on the same or a remote system. The talkd daemon handles the connections between the systems. The talk utility on each system contacts the talkd daemon on the other system to set up a bidirectional conversation. Launched by the superserver.

telnetd

TELNET

One of the original Internet remote access protocols (page 404). Launched by launchd, but normally disabled.

xinetd

Internet superserver

Listens for service requests on network connections and starts up the appropriate daemon to respond to any particular request. Because of xinetd, a system does not need the daemons running all the time to handle various network requests. For more information refer to "The xinetd Superserver" on page 459. Under Mac OS X 10.4 and later, xinetd is replaced by launchd.


PROXY SERVERS

A proxy is a network service that is authorized to act for a system while not being part of that system. A proxy server or proxy gateway provides proxy services; it is a transparent intermediary, relaying communications back and forth between an application, such as a browser and a server, usually outside of a LAN and frequently on the Internet. When more than one process uses the proxy gateway/server, it must keep track of which processes are connecting to which hosts/servers so that it can route the return messages to the proper process. The most common proxies you will encounter are email and Web proxies.

A proxy server/gateway insulates the local computer from all other computers or from specified domains by using at least two IP addresses: one to communicate with your local computer and one to communicate with a server. The proxy server/gateway examines and changes the header information on all packets it handles so that it can encode, route, and decode them properly. The difference between a proxy gateway and a proxy server is that the proxy server usually includes cache (page 925) to store frequently used Web pages so that the next request for that page is available locally and quickly; a proxy gateway usually does not use cache. The terms proxy server and proxy gateway are frequently interchanged.

Proxy servers/gateways are available for such common Internet services as HTTP, HTTPS, FTP, SMTP, and SNMP. When an HTTP proxy sends queries from local systems, it presents a single organizationwide IP address (the external IP address of the proxy server/gateway) to all servers. It funnels all user requests to servers and keeps track of them. When the responses come back, it fans them out to the appropriate applications by using each system's unique IP address, thereby protecting local addresses from remote/specified servers.

Proxy servers/gateways are generally just one part of an overall firewall strategy to prevent intruders from stealing information or damaging an internal network. Other functions that can be combined with or kept separate from the proxy server/gateway include packet filtering, which blocks traffic based on origin and type, and user activity reporting, which helps management learn how the Internet is being used.

RPC NETWORK SERVICES

Much of the client/server interaction over a network is implemented using the RPC (Remote Procedure Call) protocol, which is implemented as a set of library calls that make network access transparent to the client and server. RPC specifies and interprets messages and does not concern itself with transport protocols; it runs on top of TCP/IP and UDP/IP. Services that use RPC include NFS and NIS. RPC was developed by Sun as ONC RPC (Open Network Computing Remote Procedure Calls) and differs from Microsoft RPC.

In the client/server model, a client contacts a server on a specific port (page 414) to avoid any mixup between services, clients, and servers. To avoid maintaining a long list of port numbers and to enable new clients/servers to start up without registering a port number with a central registry, when a server that uses RPC starts, it specifies the port it expects to be contacted on. Common RPC servers have port numbers that are defined by Sun. If a server does not use a predefined port number, it picks an arbitrary number.

The server then registers this port with the RPC portmapper (the portmap daemon) on the local system. The server tells the daemon which port number it is listening on and which RPC program numbers it serves. As a result of these exchanges, the portmap daemon knows the location of every registered port on the host and the programs that are available on each port. The portmap daemon, which always listens on port 111 for both TCP and UDP, must be running to make RPC calls. The portmap daemon is started automatically when RPC-based services are enabled through the system's GUI.

Files

The /etc/rpc file (page 446) maps RPC services to RPC numbers. The /etc/services file (page 446) lists system services.

RPC client/server communication

The sequence of events for communication between an RPC client and server is as follows:

  1. The client program on the client system makes an RPC call to obtain data from a (remote) server system. (The client issues a read record from a file request.)

  2. If RPC has not yet established a connection with the server system for the client program, it contacts portmap on port 111 of the server and asks which port the desired RPC server is listening on (for example, rpc.nfsd).

  3. The portmap daemon on the remote server looks in its tables and returns a UDP or TCP port number to the local system, the client (typically 2049 for nfs).

  4. The RPC libraries on the server system receive the call from the client and pass the request to the appropriate server program. The origin of the request is transparent to the server program. (The filesystem receives the read record from file request.)

  5. The server responds to the request. (The filesystem reads the record.)

  6. The RPC libraries on the remote server return the result over the network to the client program. (The read record is returned to the calling program.)

Because standard RPC servers are normally started by xinetd (page 459) on systems running Mac OS 10.3 and earlier, the portmap daemon must be started before the xinetd daemon is invoked if any RPC servers are enabled. Under Mac OS X 10.4 and later, the portmap daemon is started automatically if the system can determine that it is required. If the portmap daemon stops, you must restart all RPC servers on the local system.
