The Electromagnetic Spectrum

When electrons move, they create electromagnetic waves that can propagate through free space. This phenomenon was first predicted to exist by James Maxwell, in 1865, and it was first produced and observed by Heinrich Hertz in 1887. All modern communication depends on manipulating and controlling signals within the electromagnetic spectrum.

The electromagnetic spectrum ranges from extremely low-frequency radio waves of 30Hz, with wavelengths of nearly the earth's diameter, to high-frequency cosmic rays of more than 10 million trillion Hz, with wavelengths smaller than the nucleus of an atom. The electromagnetic spectrum is depicted as a logarithmic progression: The scale increases by multiples of 10, so the higher regions encompass a greater span of frequencies than do the lower regions.

Although the electromagnetic spectrum represents an enormous range of frequencies, not all the frequencies are suitable to purposes of human communications. At the very low end of the spectrum are signals that would be traveling at 30Hz (that is, at 30 cycles per second). One of the benefits of a very low frequency is that it can travel much farther than a high frequency before it loses power (that is, attenuates). So a 30Hz signal provides the benefit of being able to travel halfway around the world before it requires some form of amplification. For example, one defense agency uses 30Hz to communicate with its submarines by using telemetry (for example, a message that says "We're still here. We're still here" is sent, and the subs know that if they don't get that message, they better see what's going on). Again, the benefit of very-low-frequency signals is that they can travel a very long distance before they attenuate.

At the high end of the electromagnetic spectrum, signals travel over a band of 10 million trillion Hz (that is, 10²²Hz). This end of the spectrum has phenomenal bandwidth, but it has its own set of problems. The wave forms are so miniscule that they're highly distorted by any type of interference, particularly environmental interference such as precipitation. Furthermore, higher-frequency wave forms such as x-rays, gamma rays, and cosmic rays are not very good to human physiology and therefore aren't available for us to use for communication at this point.

Infrasound and the Animal World

The universe is full of infrasound the frequencies below the range of human hearing. Earthquakes, wind, thunder, volcanoes, and ocean storms massive movements of earth, air, fire, and water generate infrasound. In the past, very-low-frequency sound has not been thought to play much of a role in animals' lives. However, we know now that sound at the lowest frequencies of elephant rumbles (14Hz to 35Hz) has remarkable properties. It is little affected by passage through forests and grasslands, and male and female elephants use it to find one another for reproduction. It seems that elephants communicate with one another by using calls that are too low-pitched for human beings to hear, and because of the properties of the infrasound range, these communications can take place over very long distances. Intense infrasonic calls have also been recorded from finback whales.

Because of the problems with very low and very high frequencies, we primarily use the middle of the electromagnetic spectrum for communication the radio, microwave, infrared, and visible light portions of the spectrum. We do this by modulating the amplitudes, the frequencies, and the phases of the electromagnetic waves. Bandwidth is actually a measure of the difference between the lowest and highest frequencies being carried. Each of these communications bands offers differing amounts of bandwidth, based on the range of frequencies they cover. The higher up in the spectrum you go, the greater the range of frequencies involved.

Figure 2.6 shows the electromagnetic spectrum and where some of the various transmission media operate. Along the right-hand side is the terminology that the International Telecommunication Union (ITU) applies to the various bands: Extremely low, very low, low, medium, high, very high (VHF), ultrahigh (UHF), superhigh (SHF), extremely high (EHF), and tremendously high frequencies (THF) are all various forms of radio bands. And then we move into the light range, with infrared and visible light. You can see just by the placement of the various transmission media that not all are prepared to face the high-bandwidth future that demanding advanced applications (such as streaming media, e-learning, networked interactive games, interactive TV, telemedicine, metacomputing, and Web agents) will require.

Figure 2.6. The electromagnetic spectrum

The radio, microwave, infrared, and visible light portions of the spectrum can all be used for transmitting information by modulating various measurements related to electromagnetic waves (see Figure 2.7):

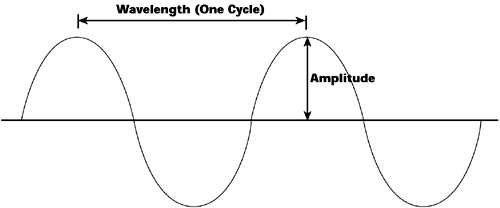

Figure 2.7. An electromagnetic wave

         Frequency The number of oscillations per second of an electromagnetic wave is called its frequency.

         Hertz Frequency is measured in Hertz (Hz), in honor of Heinrich Hertz.

         Wavelength The wavelength is the distance between two consecutive maxima or minima of the wave form.

         Amplitude Amplitude is a measure of the height of the wave, which indicates the strength of the signal.

         Phase Phase refers to the angle of the wave form at any given moment.

         Bandwidth The range of frequencies (that is, the difference between the lowest and highest frequencies carried) that make up a signal is called bandwidth.

You can manipulate frequency, amplitude, and phase in order to distinguish between a one and a zero. Hence, you can represent digital information over the electromagnetic spectrum. One way to manipulate frequency is by sending ones at a high frequency and zeros at a low frequency. Devices that do this are called frequency-modulated devices. You can also modulate amplitude by sending ones at a high amplitude or voltage and zeros at a low amplitude. A complementary receiving device could then determine whether a one or a zero is being sent. As yet another example, because the phase of the wave form refers to shifting where the signal begins, you could have ones begin at 90 degrees and zeros begin at 270 degrees. The receiving device could discriminate between these two bit states (zero versus one) based on the phase of the wave as compared to a reference wave.

Twisted-pair, which was the original foundation of the telecommunications network, has a maximum usable bandwidth of about 1MHz. Coax, on the other hand, has greater capacity, offering a total of 1GHz of frequency spectrum. The radio range, particularly microwave, is the workhorse of the radio spectrum. It gives us 100GHz to operate with. In comparison, fiber optics operates over a band of more than 200THz (terahertz). So, as we see increasingly more bandwidth-hungry applications, we'll need to use fiber optics to carry the amount of traffic those applications generate. Twisted-pair will see little use with the future application set. Figure 2.8 plots various telecommunications devices on the electromagnetic spectrum.

Figure 2.8. Telecommunications devices and the electromagnetic spectrum

Bandwidth

As mentioned earlier, bandwidth is the range of frequencies that make up a signal. There are three major classes of bandwidth that we refer to in telecommunications networks: narrowband, wideband, and broadband.

Narrowband

Narrowband means that you can accommodate up to 64Kbps, which is also known as the DS-0 (Digital Signal level 0) channel. This is the fundamental increment on which digital networks were built. Initially, this metric of 64Kbps was derived based on our understanding of what it would take to carry voice in a digital manner through the network. If we combine these 64Kbps channels together, we can achieve wideband transmission rates.

Wideband

Wideband is defined as being n x 64Kbps, up to approximately 45Mbps. A range of services are provisioned to support wideband capabilities, including T-carrier, E-carrier, and J-carrier services. These are the services on which the first generation of digital hierarchy was built.

T-1 offers 1.544Mbps, and because the T-carrier system is a North American standard, T-1 is used in the United States. It is also used in some overseas territories, such as South Korea and Hong Kong. E-1, which provides a total of 2.048Mbps, is specified by the ITU. It is the international standard used throughout Europe, Africa, most of Asia-Pacific, the Middle East, and Latin America. J-carrier is the Japanese standard, and J-1 offers 1.544Mbps.

Not every office or application requires the total capacity of T-1, E-1, or J-1, so you can subscribe to fractional services, which means you subscribe to bundles of channels that offer less than the full rate. Fractional services are normally provided in bundles of 4, so you can subscribe to 4 channels, 8 channels, 12 channels, and so on. Fractional services are also referred as n x 56Kbps/64Kbps in the T-carrier system and n x 64Kbps under E-carrier. High-bandwidth facilities include T-3, E-3, and J-3. T-3 offers 45Mbps, E-3 offers 34Mbps, and J-3 supports 32Mbps. (T-, E-, and J-carrier services are discussed in more detail in Chapter 5.)

Broadband

The future hierarchy, of course, rests on broadband capacities, and broadband can be defined in different ways, depending on what part of the industry you're talking about. Technically speaking, the ITU has defined broadband as being anything over 2Mbps. But this definition was created in the 1970s, when 2Mbps seemed like a remarkable capacity.

The Impact of Fiber Optics on Bandwidth

So far this chapter has used a lot of bits-per-second measurements. It can be difficult to grasp what these measurements really mean. So, here's a real-world example. Today, fiber optics very easily accommodates 10Gbps (that is, 10 billion bits per second). But what does that really mean? At 10Gbps you'd be able to transmit all 32 volumes of the Encyclopedia Britannica in 1/10 second the blink of an eye. That is an incredible speed. Not many people have a computer capable of capturing 10Gbps.

Keep in mind that underlying all the various changes in telecommunications technologies and infrastructures, a larger shift is also occurring the shift from the electronic to the optical, or photonic, era. To extract and make use of the inherent capacity that fiber optics affords, we will need an entire new generation of devices that are optical at heart. Otherwise, we'll need to stop a signal, convert it back into an electrical form to process it through the network node, and then convert it back into optics to pass it along, and this will not allow us to exercise the high data rates that we're beginning to envision.

Given today's environment, for wireline facilities, it may be more appropriate to think of broadband as starting where the optical network infrastructure starts. Synchronous Digital Hierarchy (SDH) and Synchronous Optical Network (SONET) are part of the second generation of digital hierarchy, which is based on fiber optics as the physical infrastructure. (SDH and SONET are discussed in detail in Chapter 5.) The starting rate (that is, the lowest data rate supported) on SDH/SONET is roughly 51Mbps. So, for the wireline technologies those used in the core or backbone network 51Mbps is considered the starting point for broadband. In the wireless realm, though, if we could get 2Mbps to a handheld today, we'd be extremely happy and would be willing to call it broadband. So, remember that the definition of broadband really depends on the situation. But we can pretty easily say that broadband is always a multichannel facility that affords higher capacities than the traditional voice channel, and in the local loop, 2Mbps is a major improvement.
