The Monitor Application task is useful for watching high-level statistics as your application runs. The Monitor Application task does not do any instrumentation and therefore imposes no profiling overhead. To choose it, click Monitor Application (shown in Figure 15-4). Figure 15-4. Monitor Application optionsThe Monitor Application task will display basic information about your application: heap memory allocated, heap memory in use, percentage of time spent doing garbage collection, and number of threads that are running. These values are displayed in both the Profiler Control Panel and in the VM Telemetry Overview window (shown in Figure 15-5). Figure 15-5. VM Telemetry Overview windowThe VM Telemetry Overview window also displays the surviving generations on the heap. For an explanation of surviving generations, refer to the Surviving Generations and Memory Leaks section later in this chapter. By default, detailed information about the state of each thread is also monitored. It is displayed in the Threads window (shown in Figure 15-6). Figure 15-6. Threads windowThe thread states are shown with color coding:

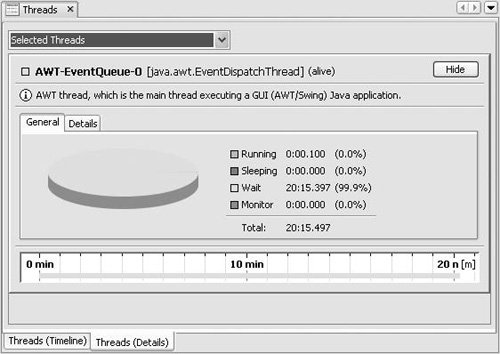

The scroll bar can be used to scroll through time, allowing you to examine thread state going all the way back to when your application started. Click the Zoom In and Zoom Out icons () to control the level of detail displayed by the Threads window. Double-clicking a thread will switch the Threads window to its Details tab, where more information about the selected thread is displayed (shown in Figure 15-7). Figure 15-7. Thread Details |
