A big driver of interest in VPNs is that customers increasingly need to communicate with people outside their enterprise, not just those inside the enterprise. As mentioned in Chapter 6, "Data Communications Basics," in the 1980s, about 80% of the information that was used within a given address of a business came from within that address. Only 20% was exchanged outside the walls of that location. Today, the relationship has reversed. As much as 80% of information exchanged is with points outside a given business address.

Another reason for interest in VPNs is that customers want to quickly and securely change their access points and needs as changes occur in their businesses. Many strategic alliances and partnerships require companies to exchange messages quickly. Some of these are temporary assignments for example, a contractor building out a fiber-optic loop or an applications developer building a new billing system that might last a few months, during which time the individuals involved need to be incorporated into the network. Leased lines are infamous for requiring long waits for provisioning often 6 months to 18 months! VPNs allow rapid provisioning of capacity where and when needed.

What we see emerging is a requirement for networks that can be very quickly provisioned and changed in relationship to organizational structures. This results in a steady migration of traffic away from the traditional networks, based on leased lines (see Figure 11.1), to public networks. As a result, we're seeing a steady growth in the pseudoprivate realm of the VPN (see Figure 11.2). A VPN is a logical network that isolates customer traffic on shared service provider facilities. In other words, the enterprise's traffic is aggregated with the traffic of other companies. VPNs have been around for quite some time since X.25 closed user groups on the packet-switched network, and with the AT&T Software-Defined Network (SDN) on the circuit-switched networks. A VPN looks like a private network, but it runs across either the public circuit-switched network or public packet-switched data networks. Thus, VPNs are not just a solution within the IP realm a VPN is a concept, not a specific set of technologies, and it can be deployed over a wide range of network technologies, including circuit-switched networks, X.25, IP, Frame Relay, and ATM.

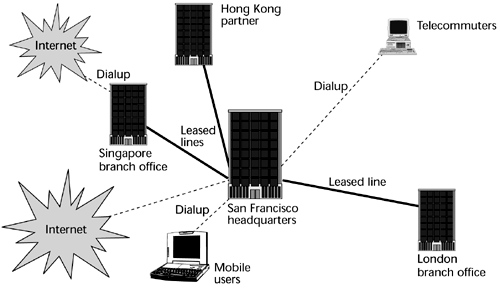

Figure 11.1. An enterprise network based on leased lines

Figure 11.2. An enterprise network using a VPN

A VPN uses a shared carrier infrastructure. It can provide additional bandwidth on demand, which is an incredible feat, as compared to the weeks that it normally takes to add bandwidth to dedicated networks. Carriers build VPNs with advanced survivability and restoration capabilities, as well as network management tools and support, so that QoS can be considered and service-level agreements (SLAs) can be administered and met.

Two basic VPN deployment models exist: customer based and network based. In customer-based VPNs, carriers install gateways, routers, and other VPN equipment on the customer premises. This is preferred when customers want to have control over all aspects of security. In network-based VPNs, the carrier houses all the necessary equipment at a point of presence (POP) near the customer's location. Customers that want to take advantage of the carrier's VPN economies of scale prefer this type of VPN.

VPN Frameworks

Contemporary VPNs can be described as belonging to one of two categories: the Internet-based VPN and the provisioned VPN.

Internet-Based VPNs

In an Internet-based VPN (see Figure 11.3), smaller ISPs provide local access services in defined geographical regions, requiring an enterprise to receive end-to-end services from multiple suppliers. An Internet-based VPN uses encryption to create a form of closed user group, thereby isolating the enterprise traffic and providing acceptable security for the enterprise across the public shared packet network. However, because it involves multiple ISPs in the delivery of the VPN, the performance is unpredictable. The biggest problem of having multiple suppliers is the inability to define and meet consistent end-to-end bandwidth or performance objectives.

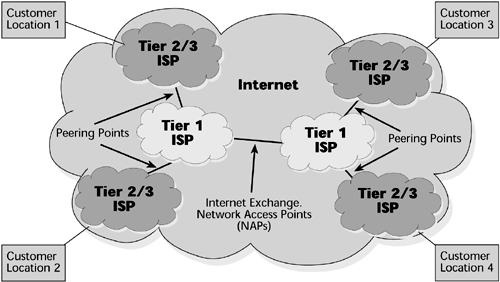

Figure 11.3. An Internet-based VPN

Figure 11.4 shows what is involved in providing an Internet-based VPN. The customer would have on the premises a wide variety of servers that dish up the corporate content, the finance systems, the customer service systems, and so on. A VPN is responsible for the encapsulation of the information and hence the security aspects. Remote Authentication Dial-in User Services (RADIUS), an authentication and access control server, is used for purposes of authenticating whether a user is allowed access into the corporate resources. The RADIUS server connects to a firewall, which is used to determine whether traffic is allowed into or out of the network. The router selects the optimum path for the messages to take, and the circuit physically terminates on a channel service unit/data service unit (CSU/DSU). A private line interfaces with the Internet provider's POP. From that point, the VPN either uses the public Internet that's comprised of multiple ISPs, or it relies on IP backbones provided by a smaller group of providers. Users who are working on mobile devices would have laptops equipped with the client and VPN services necessary for encapsulation and the administration of security.

Figure 11.4. The parts of an Internet-based VPN

Provisioned VPNs

VPNs rely on the capability to administer preferential treatment to applications, to users, and so on. The public Internet does not support preferential treatment because it is subject to delay, jitter, and loss; it is therefore unsuitable for next-generation services that require high performance. In most cases, to accommodate business customers that are interested in such advanced services and who demand SLAs, the underlying transport is really Frame Relay or ATM. These Frame Relay and ATM VPNs offer greater levels of QoS and can fulfill the SLAs that customers and vendors agree to. They do, however, require that the customer acquire an integrated access device (IAD) to have on the premises, which can increase the deployment cost significantly. IADs enable the enterprise to aggregate voice, data, and video traffic at the customer edge.

A provisioned VPN (see Figure 11.5) is a packet-switched VPN that runs across the service provider's backbone, generally using Frame Relay or ATM. This type of VPN is built on OSI model Layer 2 virtual circuits, such as those used by Frame Relay, ATM, or Multiprotocol Label Switching (MPLS), and it is provisioned based on customer orders. Virtual circuits based on predetermined locations create closed user groups and work well to carve out a VPN in a public shared network, by limiting access and usage to the provisioned VPN community. However, encryption is still required to securely protect the information from theft or modification by intruders.

Figure 11.5. A provisioned VPN

The provisioned VPN is differentiated from the IP VPN by its ability to support multiple protocols and by the fact that it offers improved performance and management. These VPNs are characterized as having excellent performance and security, but the negative is that a single vendor offers both reach and breadth in terms of service offerings.

Figure 11.6 shows what the equipment would like look at a customer premise in support of a Frame Relay- or an ATM-based VPN. The customer would have an IAD that would allow voice and data to be converged at the customer premise. The IAD would feed into the data communications equipment, over which a circuit would go to the service provider's POP. At the service provider's POP would be a multiservice access device that enables multiple protocols and interfaces to be supported and that provides access into the service provider's core network, which would be based on the use of Frame Relay or ATM. To differentiate Frame Relay- and ATM-based VPNs from Internet-based VPNs, service providers stress that multiple protocols are supported and that they rely on the use of virtual circuits or MPLS labels to facilitate the proper path, thereby ensuring better performance and providing traffic management capabilities.

Figure 11.6. A Frame Relay- or ATM-based provisioned VPN

To further differentiate Frame Relay- or ATM-based VPNs from regular Frame Relay or ATM services, additional functions such as packet classification and traffic isolation, the capability to handle multiple separate packet-forwarding tables and instances of routing protocols for each customer reside at the edge.

VPN Applications

A VPN is an architecture, a series of products and software functions that are tied together and tightly calibrated. Managing a VPN entails dealing primarily with two issues: security policies and parameters and making sure that applications function within the latency requirements.

VPN applications provide maximum opportunities to save money and to make money by substituting leased lines with Internet connectivity, by reducing costs of dialup remote access, and by stimulating new applications, using extranets. These savings can be substantial. According to TeleChoice (www.telechoice.com), in the realm of remote access, savings over customer-owned and maintained systems can range from 30% to 70%; savings over traditional Frame Relay services can range from 20% to 60%; savings over leased lines or private lines can range from 50% to 70%; and savings over international private lines can be up to 90%.

It is important to be able to effectively and easily manage the VPN environment. You need to consider the capability to track the tunnel traffic, the support for policy management, the capability to track QoS, the capability to track security infractions, and the support for public key certificate authorities (CAs).

The one-stop-shopping approach to VPNs managed VPN services is designed to lock in users and to reduce costly customer churn, but with this approach, interoperability is very restricted. Managed VPNs provide capabilities such as IP connection and transport services, routers, firewalls, and a VPN box at the customer site. Benefits of this approach include the fact that it involves a single service vendor, SLAs, guaranteed latency and bandwidth, and the security of traffic being confined to one network. Approximately one-third of VPN users opt for such a managed service.

There are three major applications of VPNs intranets (that is, site-to-site VPNs) remote access, and extranets which are examined in the following sections.

Intranet VPNs

Intranet VPNs are site-to-site connections (see Figure 11.7). The key objective of an intranet VPN is to replace or reduce the use of leased-line networks, traditional routers, and Frame Relay services. The cost savings in moving from private networks to Internet-based VPNs can be very high, in the neighborhood of 50% to 80% per year. Remember that Internet-based VPNs allow less control over the quality and performance of applications than do provisioned VPNs; this is a bit of a deterrent, and many clients still want to consider the Frame Relay- or ATM-based ATMs, which would provide better QoS. The savings might drop a bit, but the cost of a provisioned VPN would be substantially less than the cost of using leased lines.

Figure 11.7. An intranet-based VPN

There are a few key barriers to building out more intranets based on VPNs:

         No standardized approach to encryption

         Variance between vendors' products, which leads to interoperability problems

         Lack of standards regarding public key management

         Inability of today's Internet to provide end-to-end QoS

Remote Access VPNs

The most interesting and immediate VPN solution for most customers is the replacement of remote access servers. VPN remote access implementations can save customers from 30% to 70% over traditional dialup remote access server deployment. Remote access servers provide access to remote users, generally via analog plain old telephone service (POTS) lines, or, perhaps, ISDN connections, including dialup protocols and access control for authentication (administered by the servers). However, a remote access server requires that you maintain racks of modems, the appropriate terminal adapters for ISDN services, or DSL-type modems for DSL services. You also need remote access routers, which connect remote sites via a private line or public carriers and provide protocol conversion between the LANs and WANs. To have an internal implementation of remote access, you have to acquire all these devices, as well as the talent to maintain them.

If an enterprise needs remote access connections outside local calling areas, and/or if it needs encrypted communications, it is generally fairly easy to justify a VPN service over an enterprise-based remote access server. The initial cost of hardware for a VPN approach is about 33% less than the cost of hardware for a traditional dialup remote-access server deployment. The customer also saves on charges for local access circuits, and costly toll and international charges are eliminated.

By virtue of supporting a greater range of customers, a service provider that offers VPN-based remote access is more likely to support a wider variety of broadband access options, including xDSL, cable modems, and broadband wireless. VPN-based remote access also reduces the management and maintenance required with modem banks and remote client dial-in problems. For these reasons, remote access represents the primary application for which customers turn to VPNs. Figure 11.8 shows an example of remote access VPN.

Figure 11.8. A remote-access VPN

Extranet VPNs

Extranet VPNs allow an external organization to have defined access into an enterprise's internal networks and resources (see Figure 11.9). There are three major categories of extranets: supplier extranets, which focus on speeding communications along the supply chain; distributor extranets, which focus on the demand side and provide great access to information; and peer extranets, which create increased intraindustry competition.

Figure 11.9. An extranet-based VPN

The key applications for extranets include distribution of marketing and product information, online ordering, billing and account history, training policy and standards, inventory management, collaborative research and development, and e-mail, chat, news, and content.

A prime example of an extranet is the Automotive Industry Action Group's Automatic Network Exchange (ANX). This extranet comprises some 50,000 members worldwide. In many ways ANX is producing de facto standards for how extranets should be deployed. Check with ANX (www.anxo.com) for the latest information on how extranets are evolving and how one of the world's largest extranets is performing.

VPN Gateway Functions

The main purpose of the VPN gateways that are required to enable VPNs is to set up and maintain secure logical connections, called tunnels, through the Internet. Key functions of VPN gateways include packet encapsulation, authentication, message integrity, encryption, key exchange and key management, as well as firewalling, network address translation, access control, routing, and bandwidth management. The following sections describe these functions in detail.

Tunneling Protocols

Tunneling is a method of encapsulating a data packet within an IP packet so that it can be transmitted securely over the public Internet or a private IP network. The remote ends of the tunnel can be in one of two places: They can both be at the edges of the service provider's network, or one can be at the remote user's PC and the other at the corporate boundary router. Between the two ends of the tunnel, Internet routers route encrypted packets as they do all other IP traffic.

Three key tunneling protocols are needed in VPNs:

         Point-to-Point Tunneling Protocol (PPTP) PPTP was developed by Microsoft, 3Com, and Ascend, and it is included in Windows 95, Windows 98, Windows Me, Windows NT, Windows 2000, and Windows XP. PPTP is a Layer 2 protocol that can work in a non-IP enterprise environment, which is one of its strengths for customers that use multiple protocols rather than using only IP. PPTP provides low packet overhead and good compression, but its weaknesses are on the security front: It does not provide encryption or key management in the published specification, and it essentially relies on the user password to generate keys. But all implementations of PPTP include Microsoft Point-to-Point Encryption (MPPE).

         Layer 2 Tunneling Protocol (L2TP) The IETF promotes L2TP, which is a merger between PPTP and Cisco's Layer 2 Forwarding (L2F) protocol. L2TP is another Layer 2 protocol that can work in a non-IP enterprise environment. L2TP is used primarily by service providers to encapsulate and carry VPN traffic through their backbones. Like PPTP, it does not provide encryption or key management in the published specification (although it does recommend IPSec for encryption and key management).

         IP Security (IPSec) IPSec is an IETF protocol suite that addresses basic data integrity and security. It covers encryption, authentication, and key exchange. IPSec involves a 168-bit encryption key, although the key size can vary, depending on the capabilities of each end of the connection. Recent drafts address encapsulating the secured payload, the key management protocol, and key creation. IPSec emphasizes security by authenticating both ends of the tunnel connection, negotiating the encryption protocol and key for the encrypted session, and encrypting and decrypting the session establishment data. However, IPSec is restricted to IP environments, each user is required to have a well-defined public IP address, and IPSec cannot run on networks that use network address translation.

Benefits and Evolution of VPNs

The main benefit of VPNs as compared to leased lines or Frame Relay is cost savings. VPNs also optimize environments with IP; they have less overhead than Frame Relay, and tunneling protocols may eliminate the need for proprietary encapsulation of protocols. Provisioned VPNs also have the additional benefits of Frame Relay and ATM in the administration of virtual circuits and QoS. VPNs also provide the capability to support dialup access, and greater redundancy is achieved in the network by virtue of meshed nets. Also, VPNs do not necessarily demand a digital fiber infrastructure end-to-end.

VPNs are undergoing an evolution, and various parameters still need to be addressed. Among those are the QoS guarantees. Effective traffic prioritization is at the heart of QoS, and current mechanisms that are available include Differentiated Services (DiffServ), Class-Based Queuing, Common Open Policy Service (COPS), and Multiprotocol Label Switching (MPLS). (These mechanisms are covered in Chapter 10, "Next-Generation Networks.") Other areas of evolution in VPNs are tiering of VPN services (that is, bandwidth tiering and different policy management), the capability to support autoprovisioning, and the emphasis on security.

QoS and security are the two most important considerations in administering VPNs, so uptimes, delays, and SLAs need to be structured. For example, QoS guarantees could be structured to promise 100% premises-to-premises network availability and a maximum latency guarantee of 80 milliseconds. Some vendors offer separate SLAs for dedicated and remote access. For dedicated access, the SLA offers an availability guarantee of 99.9% and a maximum latency guarantee of 125 milliseconds. On remote access SLAs, a busy-free dial availability guarantee of 97% is stipulated, and the latency guarantee specifies an initial modem connection speed of 26.4Kbps at 99%.
