Create an InfoPackage to Load Transaction Data

Now we are ready to create an InfoPackage to load the transaction data. In this InfoPackage, we will specify how and when to load data.

Work Instructions

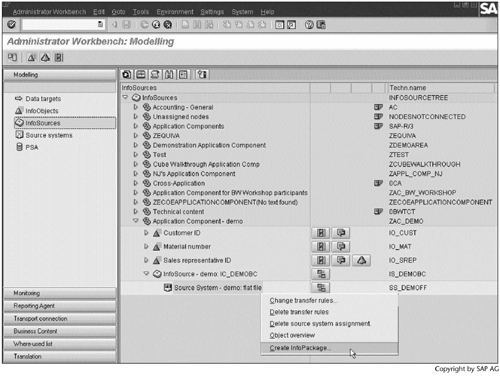

Step 1. Right-click Source System demo: flat file, and then select Create InfoPackage….





SCREEN 3.66

graphics/03fig66.gif

Step 2. Select DataSource InfoSource Demo: IC_DEMOBC, enter a description for the InfoPackage, and then click graphics/continue.gif to continue.





SCREEN 3.67

graphics/03fig67.gif

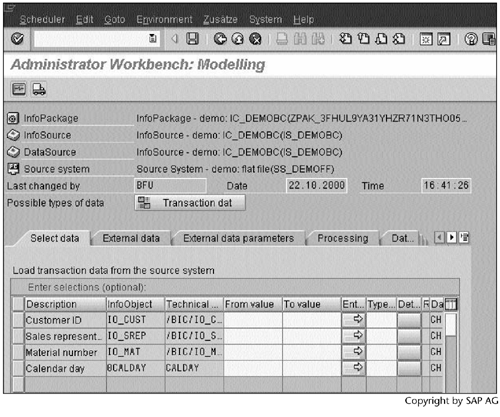

Step 3. Under the Select data tab, note the fields we selected in Screen 3.56. We can use the selection condition on 0CALDAY to load 1999 data first, 2000 data second, and 2001 data last. If we do not enter anything, all of the data will be loaded together in one data load request. Because we do not have a large volume of data, we load them all together.





SCREEN 3.68

graphics/03fig68.gif

Note

0CALDAY (Calendar day) is the characteristic in Screen 2.28 that represents the Transaction Date in Table 1.4. We also included it in the InfoSource definition.

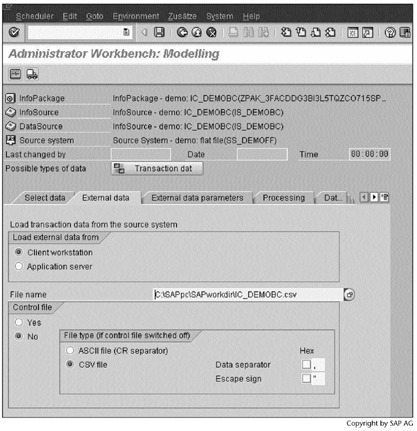

Step 4. Under the External data tab, select options as shown in the screen, and enter a file name with a path. The file contains the data from Table 3.3.





SCREEN 3.69

graphics/03fig69.gif

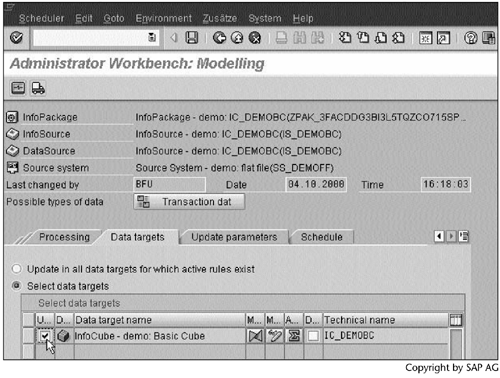

Step 5. Under the Data targets tab, select the option Select data targets, and then select the first row for our InfoCube IC_DEMOBC.





SCREEN 3.70

graphics/03fig70.gif

Note

If the InfoSource appears in the update rules for other InfoCubes, all of the InfoCubes will be listed in the table. We can then specify into which InfoCubes we want to load the data.

Step 6.

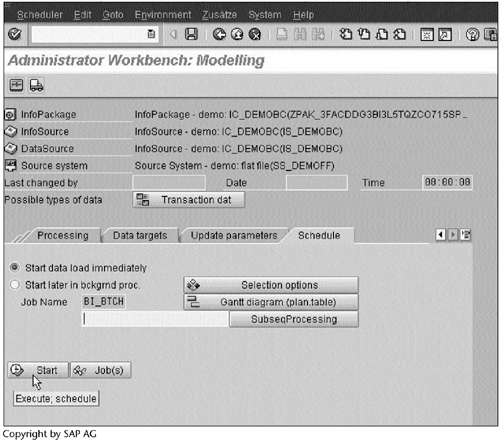

Under the Schedule tab, select the option Start data load immediately, and then click graphics/clock.gif to load the data.

SCREEN 3.71

graphics/03fig71.gif

Result

A status message Data was requested will appear at the bottom of Screen 3.71.

Note

We can check whether the data were loaded successfully by using BW Monitor as shown in Screen 3.22. Section 4.1, "Checking InfoCube Contents," and Section 12.2.1, "InfoCube Contents," both describe techniques for checking the InfoCube contents to confirm that the data loading process worked correctly.

Table 3.3 shows the sales data for our example. In the table, CS, EA, and DZ are abbreviations for Case, Each, and Dozen, respectively. The IO_REV column will hold the sales revenue data, which will be calculated by the transfer rule.

Table 3.3. SALES DATA

IO_CUST IO_SREP IO_MAT IO_PRC 0UNIT IO_QUAN IO_REV 0CALDAY
CUST001 SREP01 MAT001 2 CS 1   19980304
CUST002 SREP02 MAT002 2 CS 2   19990526
CUST002 SREP02 MAT003 5 CS 3   19990730
CUST003 SREP03 MAT003 5 CS 4   20000101
CUST004 SREP04 MAT004 50 EA 5   19991023
CUST004 SREP04 MAT005 100 EA 6   19980904
CUST004 SREP04 MAT005 100 EA 7   19980529
CUST005 SREP05 MAT006 200 EA 8   19991108
CUST006 SREP06 MAT007 20 EA 9   20000408
CUST007 SREP07 MAT008 3 DZ 10   20000901
CUST007 SREP07 MAT008 3 DZ 1   19990424
CUST008 SREP08 MAT008 3 DZ 2   19980328
CUST008 SREP08 MAT009 2 CS 3   19980203
CUST008 SREP08 MAT010 1 LB 4   19991104
CUST009 SREP09 MAT011 1.5 LB 5   20000407
CUST010 SREP10 MAT011 1.5 LB 6   20000701
CUST010 SREP10 MAT011 1.5 LB 7   19990924
CUST010 SREP10 MAT012 2 LB 8   19991224
CUST010 SREP10 MAT013 3 CS 9   20000308
CUST011 SREP10 MAT014 1 LB 10   19980627
CUST012 SREP11 MAT014 2 LB 1   19991209
CUST012 SREP11 MAT015 3 CS 2   19980221
CUST012 SREP11 MAT015 2 CS 3   20000705
CUST012 SREP11 MAT015 3.5 CS 4   20001225
