Table 6-3 lists the standard validators that are provided with JSF. You saw the string length validator in the preceding section. To validate numerical input, you use a range validator. For example,
<h:inputText value="#{payment.amount}"> <f:validateLongRange minimum="10" maximum="10000"/> </h:inputText>
Table 6-3. Standard Validators
JSP Tag | Validator Class | Attributes | Validates |
---|
f:validateDoubleRange | DoubleRangeValidator | minimum, maximum | a double value within an optional range |
f:validateLongRange | LongRangeValidator | minimum, maximum | a long value within an optional range |
f:validateLength | LengthValidator | minimum, maximum | a String with a minimum and maximum number of characters |
The validator checks that the supplied value is 10 and 10000.
All the standard validator tags have minimum and maximum attributes. You need to supply one or both of these attributes.
Checking for Required Values
To check that a value is supplied, you do not nest a validator inside the input component tag. Instead, you supply the attribute required="true":
<h:inputText value="#{payment.date}" required="true"/>
All JSF input tags support the required attribute. You can combine the required attribute with a nested validator:
<h:inputText value="#{payment.card}" required="true"> <f:validateLength minimum="13"/> </h:inputText>
CAUTION
| If the required attribute is not set and a user supplies a blank input, then no validation occurs at all! Instead, the blank input is interpreted as a request to leave the existing value unchanged. |
Displaying Validation Errors
Validation errors are handled in the same way as conversion errors. A message is added to the component that failed validation, the component is invalidated, and the current page is redisplayed immediately after the "Process Validations" phase has completed.
You use the h:message or h:messages tag to display the validation errors. For details see the section on displaying conversion errors on page 211.
You can override the default validator messages shown in Table 6-4. Define a message bundle for your application, and supply messages with the appropriate keys, as shown on page 213.
Table 6-4. Standard Validation Error Messages
Resource ID | Default Text | Reported by |
---|
javax.faces.component.UIInput.REQUIRED | Validation Error: Value is required. | UIInput with required attribute when value is missing |
javax.faces.validator.NOT_IN_RANGE | Validation Error: Specified attribute is not between the expected values of {0} and {1}. | DoubleRangeValidator and LongRangeValidator when value is out of range and both minimum and maximum are specified |
javax.faces.validator.DoubleRangeValidator.MAXIMUM javax.faces.validator.LongRangeValidator.MAXIMUM | Validation Error: Value is greater than allowable maximum of '{0}'. | DoubleRangeValidator or LongRangeValidator when value is out of range and only maximum is specified |
javax.faces.validator.DoubleRangeValidator.MINIMUM javax.faces.validator.LongRangeValidator.MINIMUM | Validation Error: Value is less than allowable minimum of '{0}'. | DoubleRangeValidator or LongRangeValidator when value is out of range and only minimum is specified |
javax.faces.validator.DoubleRangeValidator.TYPE javax.faces.validator.LongRangeValidator.TYPE | Validation Error: Value is not of the correct type. | DoubleRangeValidator or LongRangeValidator when value cannot be converted to double or long |
javax.faces.validator.LengthValidator.MAXIMUM | Validation Error: Value is greater than allowable maximum of ''{0}''. | LengthValidator when string length is greater than maximum |
javax.faces.validator.LengthValidator.MINIMUM | Validation Error: Value is less than allowable minimum of ''{0}''. | LengthValidator when string length is less than minimum |
Bypassing Validation
As you saw in the preceding examples, validation errors (as well as conversion errors) force a redisplay of the current page. This behavior can be problematic with certain navigation actions. Suppose, for example, you add a "Cancel" button to a page that contains required fields. If the user simply clicks Cancel, leaving a required field blank, then the validation mechanism kicks in and forces the current page to be redisplayed.
It would be unreasonable to expect your users to fill in required fields before they are allowed to cancel their input. Fortunately, a bypass mechanism is available. If a command has the immediate attribute set, then the command is executed during the "Apply Request Values" phase.
Thus, you would implement a Cancel button like this:
<h:commandButton value="Cancel" action="cancel" immediate="true"/>
A Complete Validation Example
The following sample application shows a form that employs all of the standard JSF validation checks: required fields, string length, and numeric limits. The application makes sure that values are entered in all fields, the amount is between $10 and $10,000, the credit card number has at least 13 characters, and the PIN is a number between 1000 and 9999. Figure 6-6 shows typical validation error messages. A Cancel button is also provided to demonstrate the validation bypass.

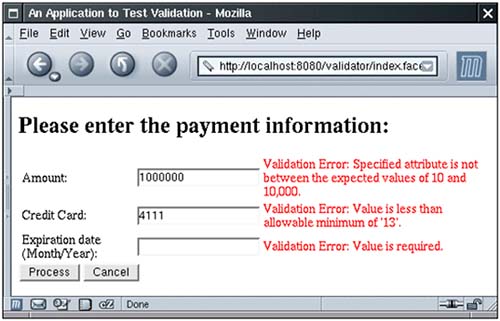

Figure 6-6. Typical Validation Error Messages
Figure 6-7 shows the directory structure of the application. Listing 6-5 contains the JSF page with the validators.
Listing 6-5. validator/index.jsp
1. <html> 2. <%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %> 3. <%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %> 4. <f:view> 5. <head> 6. <link href="styles.css" rel="stylesheet" type="text/css"/> 7. <f:loadBundle basename="com.corejsf.messages" var="msgs"/> 8. <title><h:outputText value="#{msgs.title}"/></title> 9. </head> 10. <body> 11. <h:form> 12. <h1><h:outputText value="#{msgs.enterPayment}"/></h1> 13. <h:panelGrid columns="3"> 14. <h:outputText value="#{msgs.amount}"/> 15. <h:inputText value="#{payment.amount}" 16. required="true"> 17. <f:convertNumber minFractionDigits="2"/> 18. <f:validateDoubleRange minimum="10" maximum="10000"/> 19. </h:inputText> 20. <h:message for="amount" style/> 21. 22. <h:outputText value="#{msgs.creditCard}"/> 23. <h:inputText value="#{payment.card}" 24. required="true"> 25. <f:validateLength minimum="13"/> 26. </h:inputText> 27. <h:message for="card" style/> 28. 29. <h:outputText value="#{msgs.expirationDate}"/> 30. <h:inputText value="#{payment.date}" 31. required="true"> 32. <f:convertDateTime pattern="MM/yyyy"/> 33. </h:inputText> 34. <h:message for="date" style/> 35. </h:panelGrid> 36. <h:commandButton value="Process" action="process"/> 37. <h:commandButton value="Cancel" action="cancel" immediate="true"/> 38. </h:form> 39. </body> 40. </f:view> 41. </html>
Figure 6-7. Directory Structure of the Validation Example
