B.4 Bridge pattern tags

B.4 Bridge pattern tags

Figure B.4 shows the static structure of the Builder pattern (Gamma et al. 1995) annotated with UML-F tags. Table B.4 summarizes the Builder pattern UML-F tags. Builder is based on the Separation construction principle.

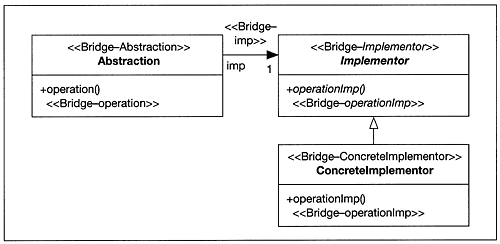

Figure B.4. Structure of the Bridge pattern annotated with UML-F tags.

Table B.4. Definition of the UML-F Bridge pattern tags.

Tags	Bridge Abstraction , Bridge Implementor , Bridge ConcreteImplementor , Bridge operation , Bridge operationImp , Bridge operationImp , Bridge imp
Apply to	As shown in Fig. B.3: Class ( Bridge Abstraction , Bridge Implementor , Bridge ConcreteImplementor ) Method ( Bridge operation , Bridge operationImp , Bridge operationImp ) Interface ( Bridge Abstraction , Bridge Implementor ) Association ( Bridge imp )
Type	String.
Expansion	The Bridge pattern is based on the Separation principle and therefore its tags expand as follows: Bridge Abstraction to Sep T , Bridge operation to Sep t , Bridge Implementor to Sep H , and Bridge operationImp to Sep h .
