Cluster Terminology

In simple terms, a query comes into a standard MySQL daemon and is then sent to a background daemon (that is, a "storage node"). This daemons decides whether to answer the query alone or with other storage nodes (for greater speed) if the query is read-only, or if the query is a write or update query, it initiates the write as part of a transaction on all storage nodes and undergoes a two-phase commit process to ensure that all the other storage nodes have received and acted on the write.

Different Parts of a Cluster in MySQL Cluster

MySQL Cluster has three separate types of nodes (that is, services that form part of a cluster): storage nodes, SQL nodes, and management nodes. Nodes run on servers, and you can run multiple nodes on one physical server, subject to the limitations discussed later in this introduction.

Storage Nodes

Storage nodes store the fragments of data that make up the tables held in a cluster and do the early work in processing queries. Storage nodes require a large amount of RAM and relatively high-performance machines. The bulk of the processing is done on the storage nodes, and these are the nodes that an administrator spends most of his or her time tweaking. They are completely controlled from the management node via the configuration file and management client.

SQL Nodes

SQL nodes, which run on standard MySQL servers, are the nodes that applications can connect to. In small, simple clusters, these nodes are often run on the same physical servers as the storage nodes. Essentially, SQL nodes provide the "face" to the cluster and operate exactly as standard MySQL servers. They then connect to the storage nodes behind, which do the early processing on the queries and return the results for final processing at the SQL nodes. The amount of processing done on the SQL and storage nodes changes from query to query.

Management Nodes

Management nodes have two important roles: First, in most setups, they act as arbitrators if there are any networking problems between cluster nodes to decide which part of the cluster should remain alive . Second, they also are required when starting any other node in a cluster (they hold the configuration that each cluster node requires each time it starts), and they manage online backups . You can stop and restart storage and management nodes by issuing a signal from the management console, and you use the management server to get information about the current status of the cluster. You also use the management client as a central log of what is going on with the cluster. A cluster typically has one management node, although it is possible to have multiple management nodes.

The MySQL Cluster Storage Engine

You may be familiar with the classic storage engines of MySQL: MyISAM and InnoDB. MyISAM is very good at read-heavy environments, and InnoDB has transaction and other advanced feature support. MySQL Cluster uses neither of these; instead, it uses a transaction engine called Network Database (NDB). NDB was designed specifically for MySQL Cluster and for distribution over multiple storage nodes. It is in-memory (RAM) and so is very fast because it does not have the traditional bottlenecks of disk I/O.

MyISAM Versus NDB

Table IN.1 shows the key differences between MyISAM, the default storage engine in MySQL, and NDB, the only available storage engine with MySQL Cluster.

Table IN.1. MyISAM Versus NDB

InnoDB Versus NDB

Table IN.2 shows the key differences between InnoDB, the storage engine used by those requiring transactions within MySQL, and NDB, the only available storage engine with MySQL Cluster. InnoDB is in many ways more similar to NDB than MyISAM.

Table IN.2. InnoDB Versus NDB

Limitations of NDB

NDB has many limitations that are very easy to forget. Some databases cannot convert to NDB without significant modification, and often while importing a large existing database, you meet one of these limitations. Typically, as long as you can work out what limitation you have hit, there are ways around whatever problem you have met, but you should be aware that this is not always the case. The following are some of the possibilities:

• Database names, table names, and attribute names cannot be as long in NDB tables as with other table handlers. In NDB, attribute names are truncated to 31 characters , and if they are not unique after truncation , errors occur. Database names and table names can total a maximum of 122 characters

• NDB does not support prefix indexes; only entire fields can be indexed.

• A big limitation is that in MySQL 4.1 and 5.0, all cluster table rows are of fixed length. This means, for example, that if a table has one or more VARCHAR fields containing only relatively small values, more memory and disk space will be required when using the NDB storage engine than would be for the same table and data using the MyISAM engine. This issue is on the "to-fix" list for MySQL Cluster 5.1.

• In NDB, the maximum number of metadata objects is limited to 20,000, including database tables, system tables, indexes, and BLOBs (binary large objects). This is a hard-coded limit that you cannot override with a configuration option.

• The maximum permitted size of any one row in NDB is 8KB, not including data stored in BLOB columns (which are actually stored in a separate table internally).

• The maximum number of attributes per key in NDB is 32.

• Autodiscovery of databases is not supported in NDB for multiple MySQL servers accessing the same cluster in MySQL Cluster. (You have to add each database manually on each SQL node.)

• MySQL replication does not work correctly in NDB if updates are done on multiple MySQL servers; replication between clusters is on the feature list for MySQL 5.1.

• ALTER TABLE is not fully locking in NDB when you're running multiple MySQL servers.

• All storage and management nodes within a cluster in NDB must have the same architecture. This restriction does not apply to machines simply running SQL nodes or any other clients that may be accessing the cluster.

• It is not possible to make online schema changes in NDB, such as those accomplished using ALTER TABLE or CREATE INDEX . (However, you can import or create a table that uses a different storage engine and then convert it to NDB by using ALTER TABLE tbl_name ENGINE=NDBCLUSTER; .) ALTER TABLE works on occasions, but all it does is create a new table with the new structure and then import the data. This generally causes an error as NDB hits a limit somewhere. It is strongly recommended that you not use ALTER TABLE to make online schema changes.

• Adding or removing nodes online is not possible in NDB. (The cluster must be restarted in such cases.)

• The maximum number of storage nodes within an NDB cluster is 48.

• The total maximum number of nodes in a cluster in MySQL Cluster is 63. This number includes all MySQL servers (that is, SQL nodes), storage nodes, and management servers.

Data Partitioning

Data partitioning is an important concept in MySQL Cluster because it explains how a cluster splits up the data that is fed into it among the various storage nodes to achieve high performance and redundancy. Full partitioning, as described here, is available only in MySQL Cluster 5.1. MySQL Cluster 5.0 data is partitioned between storage node groups in a fairly random way.

A partitioned table is an abstract table that implements a table by making use of one stored table for each partition in the table (that is, it splits up one large table into lots of smaller tables). A partition function is a nonconstant and nonrandom function (typically a hash function) of one or more fields in the table; in MySQL Cluster, it is always the primary key. It cannot contain a query but can contain any scalar expression. Currently, the function needs to return an integer result. In addition, the partition function should be relatively simple because it will be evaluated very often in queries.

It is worth bearing in mind that MySQL Cluster automatically adds a primary key to any table that does not have one because it requires one for partitioning.

Benefits of Partitioning

Partitioning is essential in all clusters except clusters where the number of replicas is equal to the number of storage nodes because somehow the cluster must split the data equally across all the node groups. For example, if there are four nodes and two copies of every piece of data (that is, replicas), each node holds half the total data, and a partitioning function is required to decide where each piece of data can be found.

Certain queries can therefore be much more efficient. For example, consider the following query:

SELECT field1 FROM table1 WHERE id = 46;

If id were the primary key, the cluster would know immediately after running the partitioning function on the integer 46 which node group to send this query to for fast processing because the other node groups could never contain any records that would satisfy the WHERE clause.

Partitioning in general lays a foundation for parallel query support (that is queries executed on multiple nodes at the same time). For example, it is very simple to parallelize the query:

SELECT SUM(some_data) WHERE some_data > 100;

This query can be executed in parallel on each node, and the total sum is the sum of the query executed against each individual partition, resulting in the same answer being returned to the application much more quickly.

Synchronous Replication

Synchronous replication means that queries do not complete until the changes have been applied to all the servers involved. This has the benefit of guaranteeing that all servers have consistent copies of the data, but it can be a real performance problem, even though it eliminates the time-consuming operation of re-creating and replaying log files required by shared-disk architectures to fail over successfully.

This effectively means that when a MySQL Cluster node receives a write query (that is, a query that requires it to change its fragment of data), it issues the query on both itself and the other node(s) that holds this fragment of data. A transaction coordinator , chosen randomly from all the storage nodes, waits for the other node(s) to confirm acceptance of the transaction before issuing a commit and also confirming to the SQL node that issued the query that the transaction completed successfully.

Node Groups

MySQL Cluster automatically splits nodes into node groups. The size of each node group is determined by the number of copies of each fragment of data that the cluster holds (which is configurable but is typically set to 2 ). So, if you have two copies of data, each node group has two nodes in it. As long as one node within each node group survives, the cluster will survive. Each node within a node group has identical data; consequently, as long as one node in each node group is alive, the cluster remains up because it has a complete set of data.

A Practical Example of Partitioning and Node Groups

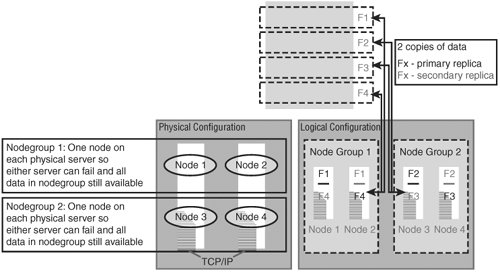

Figure IN.1 shows two servers running four storage nodes on two physical machines. Physical Machine 1 is running Storage Node 1 and Storage Node 3, and Physical Machine 2 is running Storage Node 2 and Storage Node 4.

The four storage nodes are split into two node groups, with Storage Nodes 1 and 2 making up Node Group 1 and Storage Nodes 3 and 4 making up Node Group 2.

Already, you can see that each physical server has one node from each node group on itso a failure of either server still leaves one complete node group working on the other server.

Four items of data, F1 through to F4 (Fragments 1 through 4) are stored on this simple cluster. Each fragment of data has two copieswithin the same node group. So Data Fragment 1 has a copy on Storage Node 1 (which is on Physical Server 1) and also a copy on Storage Node 2 (which is on Physical Server 2). You should notice how this is redundant: Either physical server could die, and the piece of data would remain available. You can put your finger over any one node in Figure IN.1 to convince yourself.

Network Partitioning and Arbitration

There is a fundamental problem with all clusters: If they get split in half, one half must shut down (or at least enter read-only mode) to prevent the two remaining halves from continuing to work and getting separate copies of the database, which would be difficult or impossible to merge at a later date. This problem is known as the " split-brain " problem.

MySQL solves this problem in a very simple way. First, as mentioned earlier, you must always have at least three physical servers in a cluster in MySQL Cluster for your cluster to be highly available; it is not possible to set up a highly available cluster with two (because otherwise , the cluster would be subject to the split-brain problem). A simplified explanation of how MySQL solves this problem goes like this: When nodes go down in a cluster, you have either majority rules (that is, if more than half of the nodes can see each other, they are the cluster) or, in a case in which you have an even number of nodes (such as 4) and only two nodes can see each other, it's whoever has the arbitrator. Note that the arbitrator is typically the management node. Note that we refer to a highly available cluster here: It is technically possible to set up a cluster with two or even one node, but doing so is pointless because it means you miss out on the main benefit of MySQL Clusterhigh availabilityand yet suffer all the overheads of a cluster.

A more complicated explanation of split-brain scenarios is required when you consider that the cluster is split into node groups. When all nodes in at least one node group are alive, it is not possible to get network partitioning. In this case, no other cluster half can form a functional cluster (because it would be missing the set of data that is in the node group that can still see the other). The problem comes when no node group has all its nodes alive because in that case, network partitioning is technically possible. In this situation, an arbitrator is contacted. The nodes in the cluster select the arbitrator before the node failure (during the startup process) so that all nodes will contact the same arbitrator. Normally the arbitrator would be the management server, but it can also be configured to be any of the MySQL servers in the cluster. The arbitrator will accept only the first cluster half to contact to survive. The second half will be told to die. Nodes that cannot connect to the arbitrator after a certain period of time automatically die, thus preventing a split-brain scenario.

The problem with network partitioning is that a highly available cluster can be formed only if at least three computers are involved in the cluster. One of those computers is needed only to handle the arbitrator function, so there is no need for high performance of any kind in this computer. This is because if you have only two nodes and they are unable to contact each other, which half should die? How does one node know if the other node has crashed or suffered a hardware failure or if there is a networking problem between them? It can't, so in such a cluster, both nodes die.

A Brief History of MySQL Cluster

The initial design, prototypes , and research for MySQL Cluster were completed between 1991 and 1996 by a company called Alzato that was started by Ericcson. Most of the code today originates from 1996. The first demo of MySQL Cluster came in 1997, and since then, the feature set and reliability have increased massively. Version 1.0 came out in April 2001, with Perl DBI support. In version 1.4, in 2002, work on node recovery was completed. 2003 brought ODBC, online backup, unique indexes, and more. The most recent features include online upgrades and ordered indexes.

MySQL Cluster is now included with the MySQL-Max package and is also available as a separate package to download from www.mysql.com.

What's New in MySQL Cluster 5.0

All the following features are included in MySQL Cluster version 5.0:

• Push-down conditions A query such as the following:

  SELECT * FROM t1 WHERE non_indexed_attribute = 1;


  uses a full table scan, which under older versions of MySQL Cluster would result in the entire non_indexed_attribute field in the t1 table being sent over the network to the SQL node and then each row being compared with 1. In Cluster 5.0 and later, the condition will be evaluated in the cluster's data nodes. Thus it is not necessary to send the records across the network for evaluation, which clearly increases performance significantly. This feature is disabled by default and can be enabled with the command SET engine-condition- pushdown =On.

• Decreased IndexMemory usage (compared to earlier versions) In MySQL 5.0, each record consumes approximately 25 bytes of index memory, and every unique index uses 25 bytes per record of index memory because there is no storage of the primary key in the index memory. You should be aware that unique indexes also consume DataMemory , as explained in more detail later on.

• New caches and optimizations The query cache has now been enabled, and many new optimizations have been introduced since version 4.1.

• An increase in some hard limits Some hard limits have been increased. For example, there has been a significant increase in the limit on number of metadata objects from 1,600 to more than 20,000.

What's New in MySQL Cluster 5.1

All the following features are planned for release in MySQL Cluster 5.1:

• Parallel processing for greater performance The amount of parallel processing that takes place on each node will be increased, and users will have the ability to define their own partitions and subpartitions.

• Correct handling of variable-width fields In version 5, a column defined as VARCHAR(255) uses 260 bytes of storage, independent of what is stored in any particular record. In MySQL 5.1 Cluster tables, only the portion of the field actually taken up by the record will be stored. In many cases, this will make possible a reduction in space requirements for such columns by a factor of five.

• Replication between clusters MySQL also hopes to integrate replication into clustering so you will be able to have replication slaves within a cluster.

• Disk-based tables Disk-based tables are planned and are in early testing at the time of this writing; they will remove the current limitation that you must have at least 2.1 times your database size in RAM to run MySQL Cluster. However, you will still need indexes in RAM, and disk-based tables will likely reduce performance significantly.
