The following sections detail the specific mobile processors that Intel has introduced, starting with the SL Enhanced 486 processors, all the way up through the latest Mobile Pentium 4, Mobile Pentium 4-M, and Pentium M processors. SL-Enhanced 486 Processors The Intel486SL and SL-enhanced SX, DX2, and DX4 processors (with SL technology) were used in a number of laptop and other portable systems during the 1990s. The DX2 and DX4 versions are clock-doubled and -tripled versions, respectively, greatly adding to the speed and performance of the chip. The following is a summary of features for the 486: 32-Bit RISC (reduced instruction set computer) integer core 8KB (SL/SX, DX2) or 16KB (DX4) on-die unified L1 cache Support for 4GB of physical memory Support for 64TB of virtual memory On-chip floating-point unit (math coprocessor) One cycle per instruction execution 33MHz 32-bit CPU bus (133MBps throughput) SL technology System Management Mode (SMM) 32-bit external data bus address range The 486 uses a 32-bit wide (4-byte) processor data bus, which means that it moves 4 bytes per cycle on the processor bus. With a bus speed of 33MHz, that equates to 133MBps total throughput. The 486 also has a 32-bit address bus, which means that it can address 232 bytes of memory, which is 4GB. However, most chipsets used with the 486 limit maximum memory to 64MB or less. See "SL Technology," p. 136. Mobile Pentium The main idea with most mobile processors is to shrink them as small as possible, which then lets them run at lower voltages; this saves power. The 200MHz and 233MHz Mobile Pentium processors with MMX technology (code-named Tillamook) were the first products manufactured using 0.25-micron process technology. Intel also made 300MHz, 266MHz, and 166MHz Mobile Pentium/MMX processors on the 0.25-micron process. The 0.25-micron manufacturing process and Intel's voltage-reduction technology decreased the core voltage from 2.45V to 1.8V (2.0V for the 266MHz version), and the I/O interface from 3.3V to 2.5V, relative to previous-generation processors. The 0.25-micron manufacturing process increased chip speed up to 60%, while reducing power consumption (up to 53%) when compared to 166MHz Mobile Pentium processors with MMX technology on the 0.35-micron process. This reduction in voltages allows for higher speeds with less battery power use and less heat production. Typical power consumption can be reduced from 7.7W for 166MHz Mobile Pentium processors with MMX technology on the 0.35 process to 3.9W for the 233MHz processor. These improvements represent nearly a 50% decrease in power consumption. Although Intel has largely replaced its Mobile Pentium processors with Mobile Pentium II/III/4/M and Mobile Celeron processors, the power and heat savings pioneered in the Mobile Pentium line live on in improved form in these newer processors for portable systems. Intel also manufactured regular (non-MMX) Pentium chips at speeds of 75, 100, 120, 133, and 150MHz for use in low-end portable systems. These chips used voltage-reduction technology (VRT), which means that they draw the standard 3.3V from the motherboard, but internally they operate on only 2.9V (3.1V for the 150MHz model). Although this is not as dramatic of a reduction as that evidenced in the 0.25-micron process chips, VRT still reduces the overall power consumption and heat production of these processors. These processors are no longer being manufactured, but they will appear in older laptop computers that you might have or encounter. Mobile Pentium II and III In April 1998, Intel announced the first Mobile Pentium II processors. Running at 233MHz and 266MHz, these processors were also manufactured using the same 0.25-micron process used by the Mobile Pentium MMX. With a core voltage of 1.7V and an I/O buffer voltage of 1.8V, they run at even lower voltage levels than their Pentium MMX counterparts. Although at 8.6W, a 266MHz Pentium II consumes more power overall than a Pentium MMX running at the same speed, you must take into account that the Pentium II includes an integrated L2 cache, whereas the Pentium MMX, at 4.5W, does not. To reduce power consumption and heat buildup while preserving speed, Intel redesigned the Mobile Pentium II in late 1998 to use a different method for accessing the L2 cache. The original Mobile Pentium II used a 512KB L2 cache running at half CPU speed, just like the desktop Pentium II processor, but the revised design changed to an integrated on-die L2 cache of just 256KB, but running at the same speed as the CPU. Because this cache is manufactured directly on the processor die, it runs at the same speed as the processor core and uses less power than slower external cache. The Mobile Pentium III is an improved version of the Mobile Pentium II, also using an on-die 256KB L2 cache, but with several design improvements, including the use of the .18-micron architecture, core voltages ranging from 1.7V (for the 1GHz and 900MHz versions) to as low as 1.1V (for the 500MHz versions), and SpeedStep power-saving technology for the 600MHz and faster versions. To reduce size, most versions of the Mobile Pentium III use the BGA-2 and micro-PGA2 packaging. The Mobile Pentium III also supports seven clock states for a wider range of power-saving modes than on earlier mobile processors. Table 4.3 lists the speed, manufacturing process, and voltage specifications for the Mobile Pentium II and III and Mobile Celeron CPUs manufactured by Intel. Table 4.3. Intel Mobile Processor SpecificationsProcessor Voltage | Core Speed | Bus Speed | Manufacturing Process | Core Voltage | I/O Buffer |
---|
Pentium | 75MHz | 50MHz | 0.35 micron | 2.9V | 3.3V | Pentium | 100MHz | 66MHz | 0.35 micron | 2.9V | 3.3V | Pentium | 120MHz | 60MHz | 0.35 micron | 2.9V | 3.3V | Pentium | 133MHz | 66MHz | 0.35 micron | 2.9V | 3.3V | Pentium | 150MHz | 60MHz | 0.35 micron | 3.1V | 3.3V | Pentium/MMX | 120MHz | 60MHz | 0.35 micron | 2.45V | 3.3V | Pentium/MMX | 133MHz | 66MHz | 0.35 micron | 2.45V | 3.3V | Pentium/MMX | 150MHz | 60MHz | 0.35 micron | 2.45V | 3.3V | Pentium/MMX | 166MHz | 66MHz | 0.35 micron | 2.45V | 3.3V | Pentium/MMX | 166MHz | 66MHz | 0.25 micron | 1.8V | 2.5V | Pentium/MMX | 200MHz | 66MHz | 0.25 micron | 1.8V | 2.5V | Pentium/MMX | 233MHz | 66MHz | 0.25 micron | 1.8V | 2.5V | Pentium/MMX | 266MHz | 66MHz | 0.25 micron | 2.0V | 2.5V | Pentium/MMX | 300MHz | 66MHz | 0.25 micron | 2.0V | 2.5V | Pentium II | 233MHz | 66MHz | 0.25 micron | 1.7V | 1.8V | Pentium II | 266MHz | 66MHz | 0.25 micron | 1.7V | 1.8V | Pentium II | 300MHz | 66MHz | 0.25 micron | 1.6V | 1.8V | Pentium II | 333MHz | 66MHz | 0.25 micron | 1.6V | 1.8V | Pentium II | 366MHz | 66MHz | 0.25 micron | 1.6V | 1.8V | Pentium II | 400MHz | 66MHz | 0.25 micron | 1.6V | 1.8V | Celeron | 266MHz-LV | 66MHz | 0.25 micron | 1.5V | 1.8V | Celeron | 266MHz | 66MHz | 0.25 micron | 1.6V | 1.8V | Celeron | 300MHz | 66MHz | 0.25 micron | 1.6V | 1.8V | Celeron | 333MHz | 66MHz | 0.25 micron | 1.6V | 1.8V | Celeron | 366MHz | 66MHz | 0.25 micron | 1.6V | 1.8V | Celeron | 400MHz | 66MHz | 0.25 micron | 1.6V | 1.8V | Celeron | 433MHz | 66MHz | 0.25 micron | 1.9V | 1.8V | Celeron | 466MHz | 66MHz | 0.25 micron | 1.9V | 1.8V | Celeron | 400MHz-LV | 100MHz | 0.18 micron | 1.35V | 1.5V | Celeron | 450MHz | 100MHz | 0.18 micron | 1.6V | 1.5V | Celeron | 500MHz-LV | 100MHz | 0.18 micron | 1.35V | 1.5V | Celeron | 500MHz | 100MHz | 0.18 micron | 1.6V | 1.5V | Celeron | 550MHz | 100MHz | 0.18 micron | 1.6V | 1.5V | Celeron | 600MHz | 100MHz | 0.18 micron | 1.6V | 1.5V | Celeron | 650MHz | 100MHz | 0.18 micron | 1.6V | 1.5V | Celeron | 700MHz | 100MHz | 0.18 micron | 1.6V | 1.5V | Celeron | 750MHz | 100MHz | 0.18 micron | 1.6V | 1.5V | Pentium III | 400MHz | 100MHz | 0.18 micron | 1.35V | 1.5V | Pentium III | 450MHz | 100MHz | 0.18 micron | 1.6V | 1.5V | Pentium III | 500MHz | 100MHz | 0.18 micron | 1.6V | 1.5V | Pentium III | 500MHz-ULV | 100MHz | 0.18 micron | 1.1/0.975V[1] | 1.5V | Pentium III | 600MHz-LV | 100MHz | 0.18 micron | 1.35/1.1V[1] | 1.5V | Pentium III | 600MHz | 100MHz | 0.18 micron | 1.6/1.35V[1] | 1.5V | Pentium III | 650MHz | 100MHz | 0.18 micron | 1.6/1.35V[1] | 1.5V | Pentium III | 700MHz | 100MHz | 0.18 micron | 1.6/1.35V[1] | 1.5V | Pentium III | 700MHz-LV | 100MHz | 0.18 micron | 1.35/1.1V[1] | 1.5V | Pentium III | 750MHz | 100MHz | 0.18 micron | 1.6/1.35V[1] | 1.5V | Pentium III | 800MHz | 100MHz | 0.18 micron | 1.6/1.35V[1] | 1.5V | Pentium III | 850MHz | 100MHz | 0.18 micron | 1.6/1.35V[1] | 1.5V | Pentium III | 900MHz | 100MHz | 0.18 micron | 1.7/1.35V[1] | 1.5V | Pentium III | 1GHz | 100MHz | 0.18 micron | 1.7/1.35V[1] | 1.5V | LV = Low Voltage | ULV = Ultra Low Voltage |
[1] Uses Intel SpeedStep technology, optionally switching to lower speed and voltage to conserve battery life Mobile Pentium Processor Steppings As with Intel's desktop processor, the chips of the mobile processor line undergo continual development and are modified in the form of steppings that incorporate corrections and refinements into the hardware-manufacturing process. Note The Mobile Pentium, Mobile Pentium MMX, and Mobile Pentium II processors are no longer being produced, but you might still encounter them in the field. Tables 4.4 and 4.5 list various versions and steppings for the Mobile Pentium and Mobile Pentium MMX processors. Table 4.4. Mobile Pentium Processor Versions and SteppingsType | Family | Model | Stepping | Mfg. Stepping | Core/Bus | Spec. Number | Comments |
---|
0 | 5 | 2 | 1 | B1 | 75/50 | Q0601 | TCP | 0 | 5 | 2 | 2 | B3 | 75/50 | Q0606 | TCP | 0 | 5 | 2 | 2 | B3 | 75/50 | SX951 | TCP | 0/2 | 5 | 2 | 4 | B5 | 75/50 | Q0704 | TCP | 0 | 5 | 2 | 4 | B5 | 75/50 | SX975 | TCP | 0 | 5 | 2 | 5 | C2 | 75/50 | Q0725 | TCP | 0 | 5 | 2 | 5 | C2 | 75/50 | SK079 | TCP | 0 | 5 | 2 | 5 | mA1 | 75/50 | Q0686 | VRT, TCP | 0 | 5 | 2 | 5 | mA1 | 75/50 | Q0689 | VRT | 0 | 5 | 2 | 5 | mA1 | 90/60 | Q0694 | VRT, TCP | 0 | 5 | 2 | 5 | mA1 | 90/60 | Q0695 | VRT | 0 | 5 | 2 | 5 | mA1 | 75/50 | SK089 | VRT, TCP | 0 | 5 | 2 | 5 | mA1 | 75/50 | SK091 | VRT | 0 | 5 | 2 | 5 | mA1 | 90/60 | SK090 | VRT, TCP | 0 | 5 | 2 | 5 | mA1 | 90/60 | SK092 | VRT | 0 | 5 | 2 | B | mcB1 | 100/66 | Q0884 | VRT, TCP | 0 | 5 | 2 | B | mcB1 | 120/60 | Q0779 | VRT, TCP | 0 | 5 | 2 | B | mcB1 | 120/60 | Q0808 | | 0 | 5 | 2 | B | mcB1 | 100/66 | SY029 | VRT, TCP | 0 | 5 | 2 | B | mcB1 | 120/60 | SK113 | VRT, TCP | 0 | 5 | 2 | B | mcB1 | 120/60 | SK118 | VRT, TCP | 0 | 5 | 2 | B | mcB1 | 120/60 | SX999 | | 0 | 5 | 7 | 0 | mA4 | 75/50 | Q0848 | VRT, TCP | 0 | 5 | 7 | 0 | mA4 | 75/50 | Q0851 | VRT | 0 | 5 | 7 | 0 | mA4 | 90/60 | Q0849 | VRT, TCP | 0 | 5 | 7 | 0 | mA4 | 90/60 | Q0852 | VRT | 0 | 5 | 7 | 0 | mA4 | 100/66 | Q0850 | VRT, TCP | 0 | 5 | 7 | 0 | mA4 | 100/66 | Q0853 | VRT | 0 | 5 | 7 | 0 | mA4 | 75/50 | SK119 | VRT, TCP | 0 | 5 | 7 | 0 | mA4 | 75/50 | SK122 | VRT | 0 | 5 | 7 | 0 | mA4 | 90/60 | SK120 | VRT, TCP | 0 | 5 | 7 | 0 | mA4 | 90/60 | SK123 | VRT | 0 | 5 | 7 | 0 | mA4 | 100/66 | SK121 | VRT, TCP | 0 | 5 | 7 | 0 | mA4 | 100/66 | SK124 | VRT | 0 | 5 | 2 | C | mcC0 | 100/66 | Q0887 | VRT, TCP | 0 | 5 | 2 | C | mcC0 | 120/60 | Q0879 | VRT, TCP | 0 | 5 | 2 | C | mcC0 | 120/60 | Q0880 | 3.1V | 0 | 5 | 2 | C | mcC0 | 133/66 | Q0881 | VRT, TCP | 0 | 5 | 2 | C | mcC0 | 133/66 | Q0882 | 3.1V | 0 | 5 | 2 | C | mcC0 | 150/60 | Q024 | VRT, TCP | 0 | 5 | 2 | C | mcC0 | 150/60 | Q0906 | TCP, 3.1V | 0 | 5 | 2 | C | mcC0 | 150/60 | Q040 | VRT | 0 | 5 | 2 | C | mcC0 | 75/50 | SY056 | VRT/TCP | 0 | 5 | 2 | C | mcC0 | 100/66 | SY020 | VRT/TCP | 0 | 5 | 2 | C | mcC0 | 100/66 | SY046 | 3.1V | 0 | 5 | 2 | C | mcC0 | 120/60 | SY021 | VRT, TCP | 0 | 5 | 2 | C | mcC0 | 120/60 | SY027 | 3.1V | 0 | 5 | 2 | C | mcC0 | 120/60 | SY030 | | 0 | 5 | 2 | C | mcC0 | 133/66 | SY019 | VRT, TCP | 0 | 5 | 2 | C | mcC0 | 133/66 | SY028 | 3.1V | 0 | 5 | 2 | C | mcC0 | 150/60 | SY061 | VRT, TCP | 0 | 5 | 2 | C | mcC0 | 150/60 | SY043 | TCP, 3.1V | 0 | 5 | 2 | C | mcC0 | 150/60 | SY058 | VRT | 0 | 5 | 2 | 6 | E0 | 75/50 | Q0846 | TCP | 0 | 5 | 2 | 6 | E0 | 75/50 | SY009 | TCP |
Table 4.5. Mobile Pentium MMX Processor Versions and SteppingsType | Family | Model | Stepping | Mfg. Stepping | Core/Bus | Spec. Number | Comments |
---|
0 | 5 | 4 | 4 | mxA3 | 150/60 | Q016 | ES, TCP, 2.285V | 0 | 5 | 4 | 4 | mxA3 | 150/60 | Q061 | ES, PPGA, 2.285V | 0 | 5 | 4 | 4 | mxA3 | 166/66 | Q017 | ES, TCP, 2.285V | 0 | 5 | 4 | 4 | mxA3 | 166/66 | Q062 | ES, PPGA, 2.285V | 0 | 5 | 4 | 4 | mxA3 | 150/60 | SL22G | TCP, 2.285V | 0 | 5 | 4 | 4 | mxA3 | 150/60 | SL246 | PPGA, 2.285V | 0 | 5 | 4 | 4 | mxA3 | 166/66 | SL22F | TCP, 2.285V | 0 | 5 | 4 | 4 | mxA3 | 166/66 | SL23Z | PPGA, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 120/60 | Q230 | ES, TCP, 2.2V | 0 | 5 | 4 | 3 | mxB1 | 133/66 | Q130 | ES, TCP, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 133/66 | Q129 | ES, PPGA, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 150/60 | Q116 | ES, TCP, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 150/60 | Q128 | ES, PPGA, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 166/66 | Q115 | ES, TCP, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 166/66 | Q127 | ES, PPGA, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 133/66 | SL27D | TCP, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 133/66 | SL27C | PPGA, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 150/60 | SL26U | TCP, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 150/60 | SL27B | PPGA, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 166/66 | SL26T | TCP, 2.285V | 0 | 5 | 4 | 3 | mxB1 | 166/66 | SL27A | PPGA, 2.285V | 0 | 5 | 8 | 1 | myA0 | 166/66 | Q255 | TCP, 1.8V | 0 | 5 | 8 | 1 | myA0 | 200/66 | Q146 | TCP, 1.8V | 0 | 5 | 8 | 1 | myA0 | 233/66 | Q147 | TCP, 1.8V | 0 | 5 | 8 | 1 | myA0 | 200/66 | SL28P | TCP, 1.8V | 0 | 5 | 8 | 1 | myA0 | 233/66 | SL28Q | TCP, 1.8V | 0 | 5 | 8 | 1 | myA0 | 266/66 | Q250 | TCP, 2.0V | ES = Engineering Sample. These chips were not sold through normal channels but were designed for development and testing purposes. | STP = The cB1 stepping is logically equivalent to the C2 step but on a different manufacturing process. The mcB1 step is logically equivalent to the cB1 step (except that it does not support DP, APIC, or FRC). The mcB1, mA1, mA4, and mcC0 steps also use Intel's VRT (voltage-reduction technology) and are available in the TCP or SPGA package, primarily to support mobile applications. The mxA3 is logically equivalent to the xA3 stepping (except that it does not support DP or APIC). | TCP = tape carrier package | PPGA = Plastic PGA | VRT = voltage-reduction technology | 2.285V = This is a Mobile Pentium processor with MMX technology with a core operating voltage of 2.285V2.665V. | 1.8V = This is a Mobile Pentium processor with MMX technology with a core operating voltage of 1.665V1.935V and an I/O operating voltage of 2.375V2.625V. | 2.2V = This is a Mobile Pentium processor with MMX technology with a core operating voltage of 2.10V2.34V. | 2.0V = This is a Mobile Pentium processor with MMX technology with a core operating voltage of 1.850V2.150V and an I/O operating voltage of 2.375V2.625V. |
Table 4.6 lists the steppings for Mobile Pentium II processors in the Mobile Module, mobile minicartridge, and other forms. Table 4.6. Mobile Pentium II Processor SteppingsFamily | Model | Core Stepping | L2 Cache Size (KB) | L2 Cache Speed | S-Spec | Core/Bus | Notes |
---|
6 | 5 | mdA0 | 512 | 1/2 core | SL2KH | 233/66 | MC, 1.7V | 6 | 5 | mdA0 | 512 | 1/2 core | SL2KJ | 266/66 | MC, 1.7V | 6 | 5 | mmdA0 | 512 | 1/2 core | PMD233 | 233/66 | MMO, 1.7V | 6 | 5 | mmdA0 | 512 | 1/2 core | PMD266 | 266/66 | MMO, 1.7V | 6 | 5 | mdB0 | 512 | 1/2 core | SL2RS | 300/66 | MC, 1.6V1 | 6 | 5 | mdB0 | 512 | 1/2 core | SL2RR | 266/66 | MC, 1.6V1 | 6 | 5 | mdB0 | 512 | 1/2 core | SL2RQ | 233/66 | MC, 1.6V1 | 6 | 5 | mdxA0 | 256 | core | SL32M | 266/66 | MC, 1.6V1 | 6 | 5 | mdxA0 | 256 | core | SL32N | 300/66 | MC, 1.6V1 | 6 | 5 | mdxA0 | 256 | core | SL32P | 333/66 | MC, 1.6V1 | 6 | 5 | mdxA0 | 256 | core | SL36Z | 366/66 | MC, 1.6V1 | 6 | 5 | mdbA0 | 256 | core | SL32Q | 266/66 | BG, 1.6V2 | 6 | 5 | mdbA0 | 256 | core | SL32R | 300/66 | BG, 1.6V2 | 6 | 5 | mdbA0 | 256 | core | SL32S | 333/66 | BG, 1.6V2 | 6 | 5 | mdbA0 | 256 | core | SL3AG | 366/66 | BG, 1.6V2 | 6 | 5 | mdbA0 | 256 | core | SL3DR | 266/66 | BG, 1.5V | 6 | 5 | mdbA0 | 256 | core | SL3HH | 266/66 | PG, 1.6V2 | 6 | 5 | mdbA0 | 256 | core | SL3HJ | 300/66 | PG, 1.6V2 | 6 | 5 | mdbA0 | 256 | core | SL3HK | 333/66 | PG, 1.6V2 | 6 | 5 | mdbA0 | 256 | core | SL3HL | 366/66 | PG, 1.6V2 | 1.7V = Core processor voltage is 1.7V for these Mobile Pentium processors. | 1.6V1 = Core processor voltage is 1.6V +/ 120mV for these processors. | 1.6V2 = Core processor voltage is 1.6V +/ 135mV for these processors. | 1.5V = Core processor voltage is 1.6V +/ 135mV for this processor. | MC = Mobile Pentium II processor mounted in a minicartridge. | MMO = Mobile Pentium II processor mounted in a Mobile Module, including the 440BX North Bridge. | BG = Mobile Pentium II processor in BGA packaging for low-profile surface mounting. | PG = Mobile Pentium II processor in a micro-PGA1 package. |
Mobile Pentium III Processors and Steppings The Mobile Pentium III has also been available in a number of models and steppings, which can be distinguished by their specification numbers and other details (see Table 4.7). Table 4.7. Mobile Pentium III Processor Models and RevisionsSpeed (MHz) | Speed Step (MHz) | S-Spec | Stepping | CPUID | L2 Cache | Power (W) | Speed Step (W) | Voltage | Form Factor |
---|
400 | | SL3DU | BA2 | 0681 | 256K | 10.1 | | 1.35V | BGA2 | 400 | | SL43K | BB0 | 0683 | 256K | 10.1 | | 1.35V | BGA2 | 400 | | SL4JN | BC0 | 0686 | 256K | 10.1 | | 1.35V | BGA2 | 450 | | SL3KX | PA2 | 0681 | 256K | 15.5 | | 1.6V | BGA2 | 450 | | SL43L | BB0 | 0683 | 256K | 15.5 | | 1.6V | BGA2 | 450 | | SL4JA | BC0 | 0686 | 256K | 15.5 | | 1.6V | BGA2 | 450 | | SL4JQ | PC0 | 0686 | 256K | 15.5 | | 1.6V | PGA2 | 450 | | SL3RF | PA2 | 0681 | 256K | 15.5 | | 1.6V | PGA2 | 450 | | SL3LG | PA2 | 0681 | 256K | 15.5 | | 1.6V | PGA2 | 450 | | SL43N | PB0 | 0683 | 256K | 15.5 | | 1.6V | PGA2 | 450 | | PML45 | MA2 | 0681 | 256K | 14.1 | | 1.6/ | MMC-2 | | | 00200 | | | | | | 1.35V | | | | 1AA | | | | | | | | 450 | | PML45 | MB0 | 0683 | 256K | 14.1 | | 1.6/ | MMC-2 | | | 00210 | | | | | | 1.35V | | | | 1AB | | | | | | | | 450 | | PML45 | MC0 | 0686 | 256K | 14.1 | | 1.6V | MMC-2 | | | 00220 | | | | | | | | | | 1AC | | | | | | | | 500 | | SL3DT | BA2 | 0681 | 256K | 16.8 | | 1.6V | BGA2 | 500 | | SL43M | BB0 | 0683 | 256K | 16.8 | | 1.6V | BGA2 | 500 | | SL3PK | BA2 | 0681 | 256K | 10.1 | | 1.35V | BGA2 | 500 | | SL43Z | BB0 | 0683 | 256K | 10.1 | | 1.35V | BGA2 | 500 | | SL4JB | BC0 | 0686 | 256K | 15.5 | | 1.6V | BGA2 | 500 | | SL4JP | BC0 | 0686 | 256K | 10.1 | | 1.35V | BGA2 | 500 | 300 | SL4ZH | BC0 | 0686 | 256K | 8.1 | 4.5 | 1.1/ | BGA2 | | | | | | | | | 0.975V | | 500 | | SL4JR | PC0 | 0686 | 256K | 16.8 | | 1.6V | PGA2 | 500 | | SL3RG | PA2 | 0681 | 256K | 16.8 | | 1.6V | PGA2 | 500 | | SL3DW | PA2 | 0681 | 256K | 16.8 | | 1.6V | PGA2 | 500 | | SL43P | PB0 | 0683 | 256K | 16.8 | | 1.6V | PGA2 | 500 | | PML50 | MA2 | 0681 | 256K | 15.0 | | 1.6V | MMC-2 | | | 00200 | | | | | | | | | | 1AA | | | | | | | | 500 | | PML50 | MB0 | 0683 | 256K | 15.0 | | 1.6V | MMC-2 | | | 00210 | | | | | | | | | | 1AB | | | | | | | | 500 | | PML50 | MC0 | 0686 | 256K | 15.0 | | 1.6V | MMC-2 | | | 00220 | | | | | | | | | | 1AC | | | | | | | | 600 | 500 | SL3PM | PA2 | 0681 | 256K | 20.0 | 12.2 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 600 | 500 | SL43Y | BA2 | 0683 | 256K | 20.0 | 12.2 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 600 | 500 | SL4GH | BB0 | 0683 | 256K | 14.4 | 8.1 | 1.35/ | BGA2 | | | | | | | | | 1.1V | | 600 | 500 | SL4JH | BC0 | 0686 | 256K | 15.8 | 8.7 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 600 | 500 | SL4JM | BC0 | 0686 | 256K | 14.4 | 8.1 | 1.35/ | BGA2 | | | | | | | | | 1.1V | | 600 | 500 | SL4JX | PC0 | 0686 | 256K | 20.0 | 12.2 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 600 | 500 | SL3TP | PA2 | 0681 | 256K | 20.0 | 12.2 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 600 | 500 | SL3PM | PA2 | 0681 | 256K | 20.0 | 12.2 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 600 | 500 | SL443 | PB0 | 0683 | 256K | 20.0 | 12.2 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 600 | 500 | PML60 | MA2 | 0681 | 256K | 16.6 | 12.2 | 1.6/ | MMC-2 | | | 00200 | | | | | | 1.35V | | | | 1AA | | | | | | | | 600 | 500 | PML60 | MB0 | 0683 | 256K | 16.6 | 12.2 | 1.6/ | MMC-2 | | | 00210 | | | | | | 1.35V | | | | 1AB | | | | | | | | 600 | 500 | PMM60 | MC0 | 0686 | 256K | 16.6 | 12.2 | 1.6/ | MMC-2 | | | 00220 | | | | | | 1.35V | | | | 1AC | | | | | | | | 650 | 500 | SL3PG | BA2 | 0681 | 256K | 21.5 | 12.2 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 650 | 500 | SL43X | BB0 | 0683 | 256K | 21.5 | 12.2 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 650 | 500 | SL4JJ | BC0 | 0686 | 256K | 21.5 | 12.2 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 650 | 500 | SL4JY | PC0 | 0686 | 256K | 21.5 | 12.2 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 650 | 500 | SL3TQ | PA2 | 0681 | 256K | 21.5 | 12.2 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 650 | 500 | SL3PL | PA2 | 0681 | 256K | 21.5 | 12.2 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 650 | 500 | SL442 | PB0 | 0683 | 256K | 21.5 | 12.2 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 650 | 500 | PML65 | MA2 | 0681 | 256K | 17.8 | 12.2 | 1.6/ | MMC-2 | | | 00200 | | | | | | 1.35V | | | | 1AA | | | | | | | | 650 | 500 | PMM65 | MB0 | 0683 | 256K | 17.8 | 12.2 | 1.6/ | MMC-2 | | | 00210 | | | | | | 1.35V | | | | 1AB | | | | | | | | 650 | 500 | PMM65 | MC0 | 0686 | 256K | 17.8 | 12.2 | 1.6/ | MMC-2 | | | 00210 | | | | | | 1.35V | | | | 1AC | | | | | | | | 700 | 500 | SL56R | BC0 | 0686 | 256K | 16.1 | 8.1 | 1.35/ | BGA2 | | | | | | | | | 1.1V | | 700 | 550 | SL3Z7 | BB0 | 0683 | 256K | 22.0 | 13.2 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 700 | 550 | SL4JK | BC0 | 0686 | 256K | 22.0 | 13.2 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 700 | 550 | SL4JZ | PC0 | 0683 | 256K | 22.0 | 13.2 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 700 | 550 | SL4DL | PB0 | 0683 | 256K | 22.0 | 13.4 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 700 | 550 | SL3Z8 | PB0 | 0683 | 256K | 22.0 | 13.4 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 700 | 550 | PMM70 | MB0 | 0683 | 256K | 19.1 | 13.4 | 1.6/ | MMC-2 | | | 00210 | | | | | | 1.35V | | | | 1AA | | | | | | | | 700 | 550 | PMM70 | MC0 | 0686 | 256K | 19.1 | 13.4 | 1.6/ | MMC-2 | | | 00220 | | | | | | 1.35V | | | | 1AB | | | | | | | | 750 | 600 | SL4JL | BC0 | 0686 | 256K | 24.6 | 14.4 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 750 | 600 | SL54A | BD0 | 068A | 256K | 24.6 | 14.4 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 750 | 600 | SL4K2 | PC0 | 0686 | 256K | 24.6 | 14.4 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 750 | 600 | SL53P | PD0 | 068A | 256K | 24.6 | 14.4 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 750 | 600 | SL4DM | MB0 | 0683 | 256K | 24.6 | 14.4 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 750 | 600 | SL44T | MB0 | 0683 | 256K | 24.6 | 14.4 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 750 | 600 | SL4AS | MB0 | 0683 | 256K | 24.6 | 14.4 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 750 | 600 | PMM75 | MB0 | 0683 | 256K | 24.6 | 14.4 | 1.6/ | MMC-2 | | | 00210 | | | | | | 1.35V | | | | 1AB | | | | | | | | 750 | 600 | PMM75 | MB0 | 0683 | 256K | 24.6 | 14.4 | 1.6/ | MMC-2 | | | 00210 | | | | | | 1.35V | | | | 1AA | | | | | | | | 750 | 600 | PMM75 | MC0 | 0686 | 256K | 24.6 | 14.4 | 1.6/ | MMC-2 | | | 00220 | | | | | | 1.35V | | | | 1AB | | | | | | | | 800 | 650 | SL4AK | BC0 | 0686 | 256K | 25.9 | 15.1 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 800 | 650 | SL548 | BD0 | 068A | 256K | 25.9 | 15.1 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 800 | 650 | SL4GT | PC0 | 0686 | 256K | 25.9 | 15.1 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 800 | 650 | SL53M | PD0 | 068A | 256K | 25.9 | 15.1 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 800 | 650 | PMM80 | MC0 | 0686 | 256K | 24.6 | 14.4 | 1.6/ | MMC-2 | | | 00220 | | | | | | 1.35V | | | | 1AA | | | | | | | | 850 | 700 | SL4AG | BC0 | 0686 | 256K | 27.5 | 16.1 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 850 | 700 | SL547 | BD0 | 068A | 256K | 27.5 | 16.1 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 850 | 700 | SL4AH | PC0 | 0686 | 256K | 27.5 | 16.1 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 850 | 700 | SL53L | PD0 | 068A | 256K | 27.5 | 16.1 | 1.6/ | PGA2 | | | | | | | | | 1.35V | | 850 | 700 | PMM85 | MC0 | 0686 | 256K | 24.6 | 14.4 | 1.6/ | MMC-2 | | | 00220 | | | | | | 1.35V | | | | 1AA | | | | | | | | 900 | 700 | SL59H | BC0 | 0686 | 256K | 30.7 | 16.1 | 1.6/ | BGA2 | | | | | | | | | 1.35V | | 900 | 700 | SL59J | PC0 | 0686 | 256K | 30.7 | 16.1 | 1.7/ | BGA2 | | | | | | | | | 1.35V | | 1000 | 700 | SL54F | BD0 | 068A | 256K | 34.0 | 16.1 | 1.7/ | BGA2 | | | | | | | | | 1.35V | | 1000 | 700 | SL53S | PD0 | 068A | 256K | 34.0 | 16.1 | 1.7/ | PGA2 | | | | | | | | | 1.35V | | PGA2 = 495-pin micro-PGA2 (pin grid array 2) form factor | BGA2 = 495-pin BGA2 (ball grid array 2) form factor | MMC-2 = Mobile Module Connector 2 form factor | SpeedStep = Technology that optionally runs the processor at a lower speed and voltage in a battery-optimized mode |

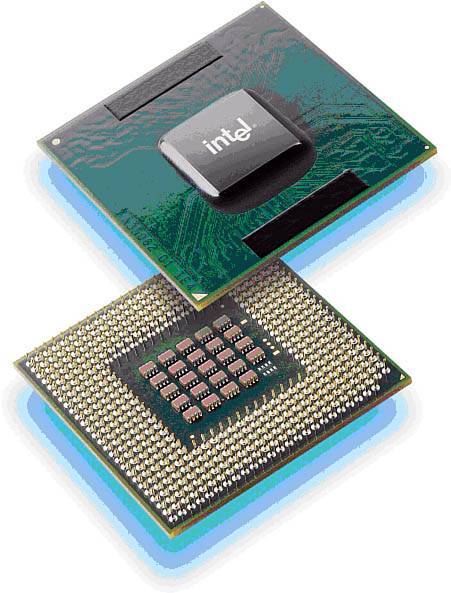

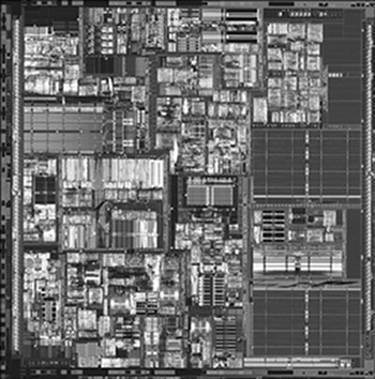

Mobile Pentium 4 and Pentium 4-M Processors The mobile Pentium 4-M, introduced in March 2002, represents a new generation in processors. If this one had a number instead of a name, it might be called the 786 because it represents a generation beyond the previous sixth-generation or 686-class processors. The Mobile Pentium 4-M utilizes a 478-pin, micro flip chip pin grid array (micro-FCPGA) package and plugs into a micro-479 PGA mobile (mPGA479M) socket (see Figure 4.15). Figure 4.15. Mobile Pentium 4-M micro-FCPGA processor. The main technical details for the Pentium 4-M include these: Speeds that range from 1.4GHz to 2.6GHz 55 million transistors, 0.13-micron process, 131mm2 die (Northwood, see Figure 4.16) or 125 million transistors, 112mm2 die, on the 0.09-micron process (Prescott) Figure 4.16. Pentium 4 Northwood die (0.13-micron process, 55 million transistors, 131mm2). (Photograph used by permission of Intel Corporation.) Software compatible with previous Intel 32-bit processors Processor (front-side) bus that runs at 400MHz Arithmetic logic units (ALUs) that run at twice the processor core frequency Hyperpipelined (up to 20-stage) technology Very deep out-of-order instruction execution Enhanced branch prediction 20KB L1 cache (12KB L1 execution trace cache plus 8KB L1 data cache) 512KB of on-die, full-core speed 128-bit L2 cache with eight-way associativity (Northwood) or 1MB on-die, full-core speed 128-bit L2 cache with eight-way associativity (Prescott) L2 cache that can handle up to 4GB RAM and that supports ECC SSE2144 new SSE2 instructions for graphics and sound processing (Northwood) SSE313 new SIMD instructions to supplement SSE2 (Prescott) Enhanced floating-point unit Multiple low-power states Intel has abandoned Roman numerals for a standard Arabic numeral 4 designation. Internally, the Pentium 4-M introduces a new architecture that Intel calls NetBurst microarchitecture, which is a marketing term, not a technical term. Intel uses NetBurst to describe hyperpipelined technology, a rapid-execution engine, a high-speed (400MHz) system bus, and an execution trace cache. The hyperpipelined technology doubles the instruction pipeline depth as compared to the Pentium III, meaning that more and smaller steps are required to execute instructions. This might seem less efficient, but it enables much higher clock speeds to be more easily attained. The rapid-execution engine enables the two integer arithmetic logic units (ALUs) to run at twice the processor core frequency, which means that instructions can execute in half a clock cycle. The 400MHz system bus is a quad-pumped bus running off a 100MHz system clock transferring data four times per clock cycle. The execution trace cache is a high-performance Level 1 cache that stores approximately 12KB decoded micro-operations. This removes the instruction decoder from the main execution pipeline, increasing performance. Of these, the high-speed processor bus is most notable. Technically, the processor bus is a 100MHz quad-pumped bus that transfers four times per cycle (4x), for a 400MHz effective rate. Because the bus is 64 bits (8 bytes) wide, this results in a throughput rate of 3200MBps. In the new 20-stage pipelined internal architecture, individual instructions are broken down into many more substages, making this almost like a RISC processor. Unfortunately, this can add to the number of cycles taken to execute instructions if they are not optimized for this processor. Early benchmarks running existing software showed that existing Pentium III or AMD Athlon processors could easily keep pace with or even exceed the Pentium 4 in specific tasks; however, this is changing now that applications are being recompiled to work smoothly with the Pentium 4's deep pipelined architecture. When used in conjunction with the requisite Intel SpeedStep technology driver, the Mobile Pentium 4-M supports Enhanced SpeedStep technology, which enables real-time dynamic switching of the voltage and frequency between two performance modes. This allows switching of the bus ratios, core operating voltage, and core processor speeds without resetting the system. Table 4.8 lists the various models of the Pentium 4-M processors that Intel has released. Table 4.8. Pentium 4-M Processor Models and RevisionsSpeed | Bus Speed | S-Spec | Stepping | CPUID | L2-Cache | Thermal Design Power (W) |
---|
1.40GHz | 400MHz | SL5ZX | PB0 | 0F24 | 512KB | 25.8 | 1.50GHz | 400MHz | SL5ZY | PB0 | 0F24 | 512KB | 26.9 | 1.60GHz | 400MHz | SL5ZY | PB0 | 0F24 | 512KB | 30.0 | | 400MHz | SL5YU | PB0 | 0F24 | 512KB | 30.0 | 1.70GHz | 400MHz | SL5ZZ | PB0 | 0F24 | 512KB | 30.0 | | 400MHz | SL5YT | PB0 | 0F24 | 512KB | 30.0 | 1.80GHz | 400MHz | SL69D | PB0 | 0F24 | 512KB | 30.0 | 1.90GHz | 400MHz | SL6DE | PB0 | 0F24 | 512KB | 32.0 | 2.00GHz | 400MHz | SL6DF | PB0 | 0F24 | 512KB | 32.0 | 2.20GHz | 400MHz | SL6LR | PC1 | 0F27 | 512KB | 35.0 | 2.40GHz | 400MHz | SL6K5 | PC1 | 0F27 | 512KB | 35.0 | 2.50GHz | 400MHz | SL6P2 | PC1/PD1 | 0F29 | 512KB | 35.0 | 2.60GHz | 400MHz | SL6WZ | PD1 | 0F29 | 512KB | 35.0 |
In June 2003, Intel introduced the Mobile Pentium 4, which is different from the Mobile Pentium 4-M. The main differences between the Mobile Pentium 4 and the Mobile Pentium 4-M are shown Table 4.9. Table 4.9. Mobile Pentium 4-M and Mobile Pentium 4 Processor DifferencesFeature | Mobile Pentium 4-M | Mobile Pentium 4 |
---|
Bus speed | 400MHz | 533MHz | CPU speed | Up to 2.6GHz | Up to 3.2GHz | SpeedStep | Yes | Yes | Hyperthreading | No | Optional | Voltage | 1.3/1.2V | 1.5/1.2V | Power | 35W | 70W |
In essence, the Mobile Pentium 4 is based on the desktop Pentium 4 processor but is designed to run on a marginally lower voltage and with the addition of enhanced SpeedStep. This processor is designed for high-powered laptops that are used more as transportable desktop systems, in which battery life is not a big concern. Hence, this processor is meant for laptops used around the office that are more often plugged into the power socket than not, and not so much for use on the road. Although the Pentium 4 is close to being a desktop chip, it still offers power-management and reduced voltage operation features that make it much more suitable for use in a laptop than the full desktop version of the Pentium 4. Table 4.10 shows the specifications for the Mobile Pentium 4 processors. Table 4.10. Mobile Pentium 4 Processor SpecificationsCPU Max Speed | CPU Min Speed | CPU Bus Speed | S-Spec | Power (Watts) |
---|
3.06GHz | 1.6GHz | 533MHz | SL726 | 70 | 2.80GHz | 1.6GHz | 533MHz | SL725 | 68.4 | 2.66GHz | 1.6GHz | 533MHz | SL724 | 66.1 | 2.40GHz | 1.6GHz | 533MHz | SL723 | 59.8 |
Pentium M The Pentium M is the first Intel processor designed exclusively for mobile use. The Pentium M processor (code-named Banias) was officially introduced in March 2003 along with the 855 chipset family and the PRO/Wireless 2100 Mini PCI network adapter, which fall under what Intel calls the Centrino brand name when combined in a single system. Today, these components have been updated to offer either the Intel PRO/Wireless 2200BG or Intel PRO/Wireless 2915ABG network adapter, able to connect to 802.11b/g or 802.11a/ b/g wireless networks, respectively. The 855 chipset has been superseded by the Mobile Intel 915 PCI Express chipset, offering DDR2 SDRAM and PCI Express support. Figure 4.17 shows all of the components that make up the Centrino brand. Figure 4.17. Pentium M and Centrino components. (Photograph used by permission of Intel Corporation.) The core of Centrino is the Pentium M processor, which, in many ways, seems to be a combination of the best features of both the Pentium III and Pentium 4 processor cores, with a Pentium 4 bus and other major enhancements and features added. The major enhancements come in the form of several new internal architectural features, including the following: Micro-operation fusion. Micro-operations derived from the same instruction or macro-operation are fused together, resulting in greater throughput using less power. Extended Stack Pointer (ESP) Folding. High-level code often requires intensive stack manipulation. ESP Folding eliminates ESP-manipulation micro-operations in stack-related operations, enabling faster execution. 32KB L1 cache. Massive 1MB (Banias) or 2MB (Dothan) on-die L2 cache (twice as large as the Pentium 4 cache). Wider queues and translation lookaside buffers (TLBs). 128 entries in TLBs. Improved branch prediction. The Pentium M offers performance equal to or even greater than that of the Pentium 4, while consuming much less power and generating much less heat. Other features include these: 77 million transistors, 0.13-micron process, and 84mm2 die (Banias, see Figure 4.18) or 140 million transistors, 0.09-micron process, 84mm2 die (Dothan) Figure 4.18. Pentium M Die, 0.09 micron Dothan core. (Photograph used by permission of Intel Corporation.) Software compatible with previous Intel 32-bit processors Processor (front-side) bus that runs at 400MHz SSE2144 new SSE2 instructions for graphics and sound processing (Banias) SSE313 new SIMD instructions to supplement SSE2 (Dothan) Enhanced floating-point unit Multiple low-power states, including the capability to power off portions of the processor and cache that aren't being used The Pentium M processor with the Banias core contains 77 million transistors and is manufactured using 0.13-micron process technology. It is available in speeds ranging from 1.3GHz to 1.7GHz. A new version of the Pentium M, code-named Dothan, manufactured with a 0.09-micron process, was introduced in May 2004, offering higher clock speeds, 1.8GHz and up, as well as even lower power consumption and better performance. Dothan increased the transistor count to 140 million, largely due to the 2MB L2 cache that takes up about 56% of the die. Despite the higher transistor count and doubling in size of the cache, power consumption of the Dothan was lower, clock for clock, than the previous Pentium M. The Pentium M includes Enhanced SpeedStep technology with multiple voltage and frequency operating points to conserve power and Streaming SIMD Extensions 2 (SSE2), which is the latest version of MMX technology also included with the Pentium 4. The Pentium M die is shown in Figure 4.18. Notice that the Pentium M die is dominated by the huge 1MB L2 cache, which takes up nearly half the space on the chip. The large cache is responsible for the high transistor count because, in general, it takes about six transistors for each bit of cache memory. Table 4.11 lists the various models of the Pentium M processors that Intel has released. Table 4.11. Pentium M Processor Models and Revisions Processor Number | Speed | Bus Speed | Process | S-Spec | Stepping | CPUID | L2-Cache | Power (W) |
---|
N/A | 1.30GHz | 400MHz | 0.13u | SL6N4 | PB1 | 0695 | 1MB | 22.0 | N/A | 1.40GHz | 400MHz | 0.13u | SL6F8 | PB1 | 0695 | 1MB | 22.0 | N/A | 1.50GHz | 400MHz | 0.13u | SL6F9 | PB1 | 0695 | 1MB | 24.5 | N/A | 1.60GHz | 400MHz | 0.13u | SL6FA | PB1 | 0695 | 1MB | 24.5 | N/A | 1.70GHz | 400MHz | 0.13u | SL6N5 | PB1 | 0695 | 1MB | 24.5 | 715 | 1.50GHz | 400MHz | 0.09u | SL7GL | PB1 | 06D6 | 2MB | 21.0 | 725 | 1.60GHz | 400MHz | 0.09u | SL7EG | PB1 | 06D6 | 2MB | 21.0 | 730 | 1.60GHz | 533MHz | 0.09u | SL86G | PC0 | 06D8 | 2MB | 27.0 | 735 | 1.70GHz | 400MHz | 0.09u | SL7EP | PB1 | 06D6 | 2MB | 21.0 | 740 | 1.73GHz | 533MHz | 0.09u | SL7SA | PC0 | 06D8 | 2MB | 27.0 | 745 | 1.80GHz | 400MHz | 0.09u | SL7EN | PB1 | 06D6 | 2MB | 21.0 | 750 | 1.86GHz | 533MHz | 0.09u | SL7S9 | PC0 | 06D8 | 2MB | 27.0 | 755 | 2GHz | 400MHz | 0.09u | SL7EM | PB1 | 06D6 | 2MB | 21.0 | 760 | 2GHz | 533MHz | 0.09u | SL7SM | PC0 | 06D8 | 2MB | 27.0 | 765 | 2.1GHz | 400MHz | 0.09u | SL7V3 | PB1 | 06D6 | 2MB | 21.0 | 770 | 2.13GHz | 533MHz | 0.09u | SL7SL | PC0 | 06D8 | 2MB | 27.0 | 780 | 2.26GHz | 533MHz | 0.09u | SL7VB | PC0 | 06D8 | 2MB | 27.0 |
Mobile Celeron Processors The mobile Celeron processor is available in several versions, including those based on Pentium III, Pentium 4, and Pentium M processors. Currently, the 1.10GHz and faster versions of the Celeron processor are based on the Mobile Pentium 4-M design. They are essentially identical to Mobile Pentium 4-M processors, except that they include only half the amount of L2 cache and clock speed has been reduced slightly. Most of these processors, like the Mobile Pentium 4, utilize a 478-pin, micro-FCPGA package and plug into a micro-479 PGA mobile (mPGA479M) socket. The Pentium 4-Mbased Celeron is designed for low-cost, high-value portable systems. Features of the processor are the same as the Pentium 4, with the exception of cache size and, in some cases, bus speed. Table 4.12 lists the various models of the Celeron processors that Intel has released. Table 4.12. Celeron Processor Models and RevisionsProcessor Number | Speed Thermal | Process | S-Spec | Stepping | CPUID | L2-Cache | Power (W) |
---|
N/A | 1.10GHz | 0.013u | SL5XR | cD0 | 068A | 128KB | 33.0 | N/A | 1.10A GHz | 0.013u | SL5ZE | tA1 | 06B1 | 256KB | 28.9 | | | 0.013u | SL6JR | tB1 | 06B4 | 256KB | 28.9 | N/A | 1.20GHz | 0.013u | SL5Y5 | tA1 | 06B1 | 256KB | 29.9 | | | 0.013u | SL68P | tA1 | 06B1 | 256KB | 32.1 | | | 0.013u | SL6JS | tB1 | 06B4 | 256KB | 32.1 | N/A | 1.30GHz | 0.013u | SL5ZJ | tA1 | 06B1 | 256KB | 33.4 | | | 0.013u | SL6JT | tB1 | 06B4 | 256KB | 33.4 | N/A | 1.40GHz | 0.013u | SL68G | tA1 | 06B1 | 256KB | 38.8 | | | 0.013u | SL6JU | tB1 | 06B4 | 256KB | 38.8 | N/A | 1.70GHz | 0.013u | SL69Z | E0 | 0F13 | 128KB | 63.5 | N/A | 1.80GHz | 0.013u | SL6A2 | E0 | 0F13 | 128KB | 66.1 | N/A | 1.80A GHz | 0.013u | SL7RU | T0 | 0F29 | 128KB | 59.1 | N/A | 2.00GHz | 0.013u | SL6LC | C1 | 0F27 | 128KB | 52.8 | N/A | 2.10GHz | 0.013u | SL6SY | B1 | 0F27 | 128KB | 55.5 | N/A | 2.20GHz | 0.013u | SL6SX | B1 | 0F27 | 128KB | 57.1 | N/A | 2.30GHz | 0.013u | SL6T5 | C1 | 0F27 | 128KB | 58.3 | 315 | 2.26GHz | 0.09u | SL7XY | D0 | 0F34 | 256KB | 73 | 320 | 2.40GHz | 0.09u | SL7KX | D0 | 0F34 | 256KB | 73 | N/A | 2.40GHz | 0.013u | SL6XG | C1 | 0F27 | 128KB | 59.8 | N/A | 2.50GHz | 0.013u | SL72B | D1 | 0F29 | 128KB | 61.0 | 325 | 2.53GHz | 0.09u | SL7KY | D0 | 0F34 | 256KB | 73 | 325J | 2.53GHz | 0.09u | SL7VR | E0 | 0F41 | 256KB | 84 | N/A | 2.60GHz | 0.13u | SL6W5 | D1 | 0F29 | 128KB | 62.6 | 330 | 2.66GHz | 0.09u | SL7KZ | D0 | 0F34 | 256KB | 73 | 330J | 2.66GHz | 0.09u | SL7VS | E0 | 0F41 | 256KB | 84 | N/A | 2.70GHz | 0.09u | SL77U | D1 | 0F29 | 128KB | 66.8 | 335 | 2.80GHz | 0.09u | SL7L2 | D0 | 0F34 | 256KB | 73 | 335J | 2.80GHz | 0.09u | SL7VT | E0 | 0F41 | 256KB | 84 | N/A | 2.80GHz | 0.013u | SL77V | D1 | 0F29 | 128KB | 68.4 | 340 | 2.93GHz | 0.09u | SL7RN | D0 | 0F34 | 256KB | 73 | 340J | 2.93GHz | 0.09u | SL7VU | E0 | 0F41 | 256KB | 84 |
Mobile Celeron processors from 450MHz through 1.2GHz are built on a 0.18-micron process, available in both 478-pin micro-FCPGA and 495-pin micro-PGA2 packages, and use the same core as the Mobile Pentium III. As with the Pentium III, these processors include Streaming SIMD instructions, an advanced transfer cache architecture, and a processor system bus speed of 100 or 133MHz. These features are offered in micro-FCPGA and micro-PGA2 packages. Table 4.13 lists the various models of the mobile Celeron processors that Intel has released. Table 4.13. Mobile Celeron Processor Models and RevisionsSpeed | Bus Speed | S-Spec | Stepping | CPUID | L2-Cache | Power (W) | Package |
---|
450MHz | 100MHz | SL3TM | PA2 | 0681 | 128KB | 15.5 | Micro-PGA2 | | 100MHz | SL46X | PB0 | 0683 | 128KB | 15.5 | Micro-PGA2 | | 100MHz | SL4PT | PC0 | 0686 | 128KB | 15.5 | Micro-PGA2 | 500MHz | 100MHz | SL3TN | PA2 | 0681 | 128KB | 16.8 | Micro-PGA2 | | 100MHz | SL46Y | PB0 | 0683 | 128KB | 16.8 | Micro-PGA2 | | 100MHz | SL4PU | PC0 | 0686 | 128KB | 16.8 | Micro-PGA2 | 550MHz | 100MHz | SL4MT | PB0 | 0683 | 128KB | 18.4 | Micro-PGA2 | | 100MHz | SL4PV | PC0 | 0686 | 128KB | 28.4 | Micro-PGA2 | 600MHz | 100MHz | SL4MU | PB0 | 0683 | 128KB | 20.0 | Micro-PGA2 | | 100MHz | SL4PW | PC0 | 0686 | 128KB | 20.0 | Micro-PGA2 | 650MHz | 100MHz | SL4MV | PB0 | 0683 | 128KB | 21.5 | Micro-PGA2 | | 100MHz | SL4PX | PC0 | 0686 | 128KB | 21.5 | Micro-PGA2 | | 100MHz | SL68H | PD0 | 068A | 128KB | 21.5 | Micro-PGA2 | 700MHz | 100MHz | SL4PY | PC0 | 0686 | 128KB | 23.0 | Micro-PGA2 | | 100MHz | SL58J | PD0 | 068A | 128KB | 23.0 | Micro-PGA2 | 733MHz | 133MHz | SL5T4 | FPD0 | 06B1 | 128KB | 23.0 | Micro-FCPGA | 750MHz | 100MHz | SL55Q | PC0 | 0686 | 128KB | 24.6 | Micro-PGA2 | | 100MHz | SL58K | PD0 | 068A | 128KB | 24.6 | Micro-PGA2 | 800MHz | 100MHz | SL5DC | PD0 | 068A | 128KB | 25.9 | Micro-PGA2 | 800A MHz | 133MHz | SL5T3 | FPD0 | 06B1 | 128KB | 27.4 | Micro-FCPGA | 866MHz | 133MHz | SL5T2 | FPD0 | 06B1 | 128KB | 21.9 | Micro-FCPGA | 933MHz | 133MHz | SL5SK | FPD0 | 06B1 | 128KB | 22.7 | Micro-FCPGA | 1.06GHz | 133MHz | SL64M | FPA1 | 06B1 | 256KB | 23.2 | Micro-FCPGA | 1.13GHz | 133MHz | SL64L | FPA1 | 06B1 | 256KB | 23.8 | Micro-FCPGA | 1.2GHz | 133MHz | SL64K | FPA1 | 06B1 | 256KB | 24.4 | Micro-FCPGA |
The mobile Celeron M processor is based on the Pentium M processor and uses the 478-pin micro-FCPGA form factor. As with the Pentium M, these processors feature either a 400 or 533MHz front-side bus speed. Some Celeron M processors are based on the Pentium M Banias and are manufactured in 0.13-micron and offer 512KB of L2 cache. Other Celeron M processors are based on Pentium M Dothan and are manufactured in 0.09-micron and feature 1MB of L2 cache. Table 4.14 lists the various models of the mobile Celeron M processors that Intel has released. Table 4.14. Mobile Celeron M Processor Models and RevisionsProcessor Number | Speed | Bus Speed | Process | S-Spec | Stepping | CPUID | L2-Cache | Power (W) |
---|
340 | 1.50GHz | 400MHz | 0.13u | SL7ME | PB1 | 0695 | 512KB | 24.5 | 350 | 1.30GHz | 400MHz | 0.09u | SL7RA | PB1 | 06D6 | 1MB | 21 | 350J | 1.30GHz | 400MHz | 0.09u | SL86L | PCO | 06D8 | 1MB | 21 | 360 | 1.40GHz | 400MHz | 0.09u | SL7LS | PB1 | 06D6 | 1MB | 21 | 360J | 1.40GHz | 400MHz | 0.09u | SL86K | PCO | 06D8 | 1MB | 21 | 370 | 1.50GHz | 400MHz | 0.09u | SL86J | PCO | 06D8 | 1MB | 21 | 370 | 1.50GHz | 400MHz | 0.09u | SL8MM | PCO | 06D8 | 1MB | 21 | 380 | 1.60GHz | 400MHz | 0.09u | SL8MN | PCO | 06D8 | 1MB | 21 |
|
