3.4 Process-focused Application patterns

< Day Day Up >

Process-focused Application Integration patterns are observed where multiple automated business processes are combined to yield a new business offering or to provide a consolidated view of some business entity by integrating multiple corporate business systems. An often quoted example is the consolidated view of the state of all relationships of the business with a particular customer.

This mode of integration is highly flexible. In its more sophisticated form it enables "late binding" of the targets of integration and is particularly useful in tying together different platforms and technologies. However, it represents a more difficult design and development task compared to data-focused integration and often requires complex middleware.

The Process-focused Application Integration patterns are presented here in order of increasing flexibility and sophistication. As the Application patterns build on each other, their capabilities and reliance on middleware increase, and they require less application development effort. From the following Application patterns, select the one that best fits your requirements:

Direct Connection application pattern: Message/Call Connection variations
Broker application pattern: Router variation
Serial Process application pattern: Serial Workflow variation
Parallel Process application pattern: Parallel Workflow variation

Business and IT drivers

Table 3-1 and Table 3-2 summarize the business and IT drivers for the Process-focused Application Integration patterns and their variations.

Table 3-1: Business drivers
Business Drivers	Direct Connection Message variation	Direct Connection Call variation	Broker Router variation	Broker	Serial Process	Serial Workflow variation	Parallel Process	Parallel Workflow variation
Improve the organizational efficiency	ü	ü	ü	ü	ü	ü	ü	ü
Reduce the latency of business events	ü	ü	ü	ü	ü	ü	ü	ü
Support a structured exchange within the organization	ü	ü	ü	ü	ü	ü	ü	ü
Support real-time one-way 'message' flows	ü		ü	ü	ü	ü	ü	ü
Support real-time request/reply 'message' flows		ü	ü	ü	ü	ü	ü	ü
Support dynamic routing of 'messages' to one of many target applications			ü	ü	ü	ü	ü	ü
Support dynamic distribution of 'messages' to multiple target applications				ü	ü	ü	ü	ü
Support automated coordination of business process flow					ü	ü	ü	ü
Reduce cycle time through parallel execution of portions of a process flow							ü	ü
Support human interaction and intervention within the process flow						ü		ü

Table 3-2: IT drivers
IT Drivers	Direct Connection Message variation	Direct Connection Call variation	Broker Router variation	Broker	Serial Process	Serial Workflow variation	Parallel Process	Parallel Workflow
Minimize total cost of ownership (TCO)			ü	ü	ü	ü	ü	ü
Leverage existing skills	ü	ü	ü	ü	ü	ü	ü	ü
Leverage the legacy investment	ü	ü	ü	ü	ü	ü	ü	ü
Enable back-end application integration	ü	ü	ü	ü	ü	ü	ü	ü
Minimize application complexity	ü	ü	ü	ü	ü	ü	ü	ü
Minimize enterprise complexity			ü	ü	ü	ü	ü	ü
Improve maintainability			ü	ü	ü	ü	ü	ü
Improve flexibility by externalizing process logic from application logic					ü	ü	ü	ü
Support for long running transactions						ü		ü

Quality of Service concerns

This section highlights Quality of Service (QoS) capabilities that are of particular concern in the Process-focused Application Integration domain. A QoS capabilities framework for business integration is based on the following general concerns:

Operability
Availability
Federation
Performance
Security
Standards compliance
Transactionality

Important:

This profile is intended as a rough first guide to QoS concerns which differentiate this domain, suitable for high level architectural design. They are not a substitute for thorough analysis at a later design stage.

The following QoS concerns are of particular importance when working in the Process-focused Application Integration domain.

Operability

The complexity of IT infrastructure is increasing so systems management capabilities are needed to ensure that Application Integration solutions can be managed effectively. For example, clustering solutions may be a consideration for availability management and reducing operational costs.

Performance

High volume workloads are often experienced in the intra-enterprise integration domain, so there is a generally a need to carefully assess the expected workload and to plan for future growth in workload.

Standards compliance

Rather than using different approaches for each application integration exercise that an organization performs, standards need to be identified and applied in order to control development and integration costs.

Private standards are also acceptable when beneficial. Adopting WebSphere MQ, for example, as intra-enterprise message-oriented middleware provides assured, once-only delivery messaging that can be widely used across the organization.

Transactionality

Transaction services are often important in intra-enterprise application integration scenarios in order to preserve data integrity and to avoid data loss. Consider using transaction management products that work with XA compliant resource managers to provide a commit and rollback facility, ensuring that either all resource updates are completed or all updates are rolled back.

3.4.1 Direct Connection Application pattern

The Direct Connection application pattern represents the simplest interaction type and is based on a 1-to-1 topology. It allows a pair of applications within the organization to directly communicate with each other. Interactions between a source and a target application can be arbitrarily complex. Generally, complexity can be addressed by breaking down interactions into more elementary interactions.

More complex point to point connections will have modeled connection rules such as business rules associated with them, as shown in Figure 3-2. Connection rules are generally used to control the mode of operation of a connector depending on external factors. Examples of connection rules are:

Business data mapping rules (for adapter connectors)
Autonomic rules (such as priority in a shared environment)
Security rules
Capacity and availability rules

click to expand
Figure 3-2: Direct Connection application pattern

Note

The Connection Rules component is not needed when there are no modeled rules associated with the connection.

The Direct Connection application pattern has two variations:

Message Connection variation
Call Connection variation

All applications of the Direct Connection application pattern will be one variation or the other. The variation required depends on whether the initiating source application needs an immediate response from the target application in order to continue with execution.

Both variations may be used either with synchronous or asynchronous communication protocols. However, there are preferences for a specific protocol type depending on the variation. For example, the Call Connection variation has a more natural fit with synchronous protocols while the Message Connection variation favors asynchronous protocols.

We examine these two variations in more detail later in this section.

Business and IT drivers

The business and IT drivers for choosing the Direct Connection application pattern are to:

Improve the organizational efficiency
Reduce the latency of business events
Support a structured exchange within the organization
Support real-time one-way message flows
Support real-time request/reply message flows
Leverage existing skills
Leverage the legacy investment
Enable back-end application integration
Minimize application complexity

The primary goal is to allow one application to gain direct and real-time access to another in order to reduce the latency of business events.

Solution

This Application pattern, as shown in Figure 3-2 on page 45, is divided into a number of logical components:

The Source Application tier represents one or more applications that are interested in initiating an interaction with the target application.
The Connection is the line between the source application and the target application representing a point-to-point connection between the two applications.
The Connection Rules tier represents any business rules associated with the connection, such as data mapping rules and security rules.
The Target Application tier represents a new application, a modified existing application, or an unmodified existing application. This application is responsible for implementing the necessary business services.

Guidelines for use

Direct integration between applications can be inflexible, in that any changes to one application may have knock-on effects on other applications. Changes to the target application may also require changes to the source application. Such changes can become both expensive and time consuming, especially when the target application is being accessed by a number of different source applications.

Different IT departments may also be responsible for developing and maintaining the source and target applications. Under such a scenario, development might be difficult to coordinate, especially if the interfaces between the applications being integrated are not properly defined and documented. Because of this, it is important to clearly define such interfaces in advance.

Benefits

The Direct Connection application pattern offers the following benefits:

It works with applications that have simple integration requirements with only a few back-end applications.
It increases the organizational efficiency and reduces the latency of business events by providing real-time access to business data and business logic, and avoiding manual synchronization of data between applications.
Direct access to back-end applications reduces the duplication of business logic across multiple tiers. As a result, changes to business logic can be made in one tier rather than in multiple applications.
It can enable re-use of investments already made with the organization.

Limitations

Although this is a reasonable starting Application pattern for integrating applications in a one to one relationship with one another, this pattern will result in a many to many "spaghetti" configuration with point to point integration mappings for each application pair. Also, the expansion of this implementation into a multi-point configuration will require additional application logic to handle the coordination.

This pattern cannot be used for intelligent routing of requests, decomposition and re-composition of requests, and for invoking complex business process workflow as a result of a request from another application. Under such circumstances, you should consider a more advanced Application pattern, such as Broker or Serial/Parallel Process.

Putting the Application pattern to use

ABC Electronics, an electronics retailer/wholesaler, wants to integrate their retail and wholesale departments. Currently, both organizations have proven IT infrastructures but have no interconnectivity. The first process ABC Electronics wants to focus on is the inventory and order replenishment process. Currently, the items sold are tallied at the end of the month by the retail ordering process and delivered to the wholesale organization by internal mail. This creates a lag in the inventory replenishment process and causes many out of stock situations. A primary business goal is to minimize the loss of sales due to out of stock situations. To meet these requirements ABC Electronics chooses the Direct Connection application pattern.

3.4.2 Direct Connection: Message Connection variation

The Message Connection variation, shown in Figure 3-3, applies to solutions where the business process does not require a response from the target application within the scope of the interaction.

click to expand
Figure 3-3: Message Connection variation

Note

We chose not to show the connection rules box in Figure 3-3 because we want to focus on the connection itself.

Business and IT drivers

The business and IT driver for choosing the Message Connection variation of the Direct Connection application pattern is to:

Support real-time one-way message flows

The main driver for selecting this variation is when the business process has no interest in the result of the operation. This variation also has the most natural fit when message-oriented middleware is used, such as IBM WebSphere MQ.

Putting the Application pattern to use

In our scenario the retail department of the ABC Electronics organization needs to notify the wholesale department to update their inventory records when a part needs to be ordered. The retail department does not require any acknowledgement of this request. To meet these requirements, ABC Electronics chooses the Message Connection variation of the Direct Connection application pattern.

3.4.3 Direct Connection: Call Connection variation

The Call Connection variation, shown in Figure 3-4, applies to solutions where the business process depends on the target application to process a request and return a response within the scope of the interaction.

click to expand
Figure 3-4: Call Connection variation

Note

We chose not to show the connection rules box in Figure 3-4 because we want to focus on the connection itself.

Business and IT drivers

The business and IT driver for choosing the Call Connection variation of the Direct Connection application pattern is to:

Support real-time request/reply message flows

The main driver for selecting this variation is when the business process does require a result message from the interaction.

Putting the Application pattern to use

In our scenario the retail department of the ABC Electronics organization needs to be advised by the wholesale department of the expected delivery date of a part on order that is out of stock with the retail department. To meet these requirements, ABC Electronics chooses the Call Connection variation of the Direct Connection application pattern.

3.4.4 Broker Application pattern

The Broker application pattern, shown in Figure 3-5, is based on a 1-to-N topology that separates distribution rules from the applications. It allows a single interaction from the source application to be distributed to multiple target applications concurrently. This application pattern reduces the proliferation of point-to-point connections.

click to expand
Figure 3-5: Broker application pattern

The Broker application pattern applies to solutions where the source application starts an interaction that is distributed to multiple target applications that are within the organization. It separates the application logic from the distribution logic based on broker rules. The decomposition/ recomposition of the interaction is managed by the broker rules tier.

The Broker pattern reuses the Direct Connection pattern to provide connectivity between the tiers. The Broker Rules may support Message variation or Call variation (or both variations) of the Direct Connection pattern.

The Broker application pattern was previously known as the Aggregator application pattern for read intent calls and the Broker application pattern for Messages and update intent calls. However, this distinction was found to be of insufficient value to warrant a separate pattern — and so it has been dropped from the revised PI patterns.

Business and IT drivers

The primary business driver for selecting this Application pattern is to allow one application to interact with one or more of multiple target applications. Using a hub-and-spoke architecture instead of a point-to-point architecture allows for the seamless integration of applications while minimizing the complexity. A request for information can be routed to one of many targets or simultaneously to multiple targets. The resulting request message can be decomposed into multiple request messages, and the reply messages then recomposed into a single reply message using appropriate recomposition rules.

This externalization of routing, decomposition, and recomposition rules from individual source and target applications increases the maintainability and flexibility and reduces the enterprise wide integration complexity.

This Application pattern is particularly important when a processing request requires execution of multiple interactions concurrently, or where the source application should be relieved of the need to know anything about its targets.

The primary IT driver for selecting this Application pattern is to allow loose coupling of clients and services with minimum modification to each. The solution should allow for multiple transmission protocols to be used and for transformation of protocols between client and service.

Solution

This Application pattern, as shown in Figure 3-6 on page 53, is divided into a number of logical components:

The Source Application tier represents one or more applications that are interested in interacting with the target applications.
The Broker Rules tier reduces the proliferation of direct connections. In addition, it supports message routing, decomposition and recomposition, message enhancement and transformation. These rules are often captured as business rules that govern the behavior of the broker tier. This tier also uses a work-in-progress data store to retain the intermediate results from the responses coming back from target applications until all the necessary responses are received.
The Target Application tier represents new, modified existing, or unmodified existing applications. These applications are responsible for implementing the necessary business services.

click to expand
Figure 3-6: Router variation

Guidelines for use

To increase the flexibility of the solution and responsiveness to changing business requirements, it is recommended that particular attention is paid to definition of reusable messages/services that pass through the Broker tier.

Robust transaction processing systems should be used to implement the back-end applications to ensure availability, scalability, and performance.

A decomposition implementation (one source call to multiple target calls) requires state persistence and re-composition of the response messages.

Standards should be used where possible to minimize future changes required to the source and target applications.

Benefits

The benefits of this Application pattern are:

It allows the integration of multiple, diverse applications.
It minimizes the impact to existing applications.
The Broker tier provides routing services, relieving the source application from being aware of the target application.
The Broker tier can provide transformation services that allow the source and target to use different communication protocols.
The Broker tier can provide decomposition/recomposition of messages, allowing one request from the source to be satisfied using multiple target applications. The fact that the response is a composite of multiple requests and responses is hidden from the source application.
The Broker tier minimizes the impact of changes in location of the target application.

Limitations

Logic must be implemented at the broker for routing and decomposition/recomposition tasks.

Putting the Application pattern to use

ABC electronics consists of multiple Retail stores and Wholesale departments. The Retail stores get their supplies from the Wholesale departments and have a need to request the delivery dates of those supplies before ordering. Currently there is no integration of the Retail and Wholesale applications. All interaction between the two are done over the phone or by mail. A solution must be found to allow Retail stores to request delivery dates from the Wholesale departments. To eliminate the need for the Retail departments to know which Wholesale department carries which supplies, a Broker is needed to take incoming requests and direct them based on part numbers to the Wholesale department that carries them. In the event that a part is carried by multiple Wholesale departments, the broker must get delivery dates from each and return the best date and the Wholesale department that can supply it to the Retail department.

3.4.5 Broker: Router variation

The Router variation of the Broker application pattern, shown in Figure 3-6, applies to solutions where the source application initiates an interaction that is forwarded to at most one of multiple target applications.

Where the Broker application pattern enables 1:N connectivity, the Router application pattern enables 1:1 connectivity where the Router Rules tier selects the target.

The Router variation of the Broker application pattern was previously known as the Router variation of the Aggregator application pattern.

Business and IT drivers

The primary business driver for selecting this Application pattern is similar to that of the Broker application pattern. The difference lies in the fact that the Router tier routes the request to only one of multiple target applications. The requirement for transformation of message and interface format still applies. Externalizing the routing from individual source and target applications increases the maintainability and flexibility and reduces the enterprise wide integration complexity.

This Application pattern is particularly important when a processing request requires the source application to be relieved of the need to know anything about its targets.

Solution

This Application pattern provides a routing function to allow any attached (initiating) application using a single router link to connect to one of multiple target applications. While access to multiple applications is supported, at any given time an application is connected to only one other application.

This Application pattern, as shown in Figure 3-6 on page 53, is divided into a number of logical components:

The Source Application tier represents one or more applications that are interested in interacting with the target applications, one target at a time.
The Router Rules tier represents any business rules associated with the message handling, such as routing and transformation. It receives requests from multiple source applications and routes them intelligently to the appropriate target applications. The resulting integration is essentially a point-to-point connection between source and target. This tier implements minimal business logic.
The Target Application tier represents new, modified existing, or unmodified existing applications. These applications are responsible for implementing the necessary business services.

Guidelines for use

The guidelines for this application pattern are the same as those for the Broker application pattern.

Benefits

The benefits of this Application pattern are:

It allows the integration of multiple, diverse applications
It minimizes the impact to existing applications
It provides routing services, relieving the source application from being aware of the target application.
It provides transformation services that allow the source and target to use different communication protocols.
The use of a router minimizes the impact of changes in location of the target application.

Limitations

With the Router variation, there is limited ability in the router to manipulate the requests. It performs intelligent routing and protocol transformation, but does not have the ability to send simultaneous requests to the target applications based on one incoming request, nor does decomposition / recomposition ability.

Putting the application pattern to use

ABC electronics consists of multiple Retail stores and Wholesale departments. The Retail stores get their supplies from the Wholesale departments and have a need to request the delivery dates of those supplies before ordering. Currently there is no integration of the Retail and Wholesale applications. All interaction between the two are done over the phone or by mail. A solution must be found to allow the Retail stores to request delivery dates from the Wholesale departments. To eliminate the need for the Retail departments to know which Wholesale department carries which supplies, a Router is needed to take incoming requests and direct them based on part numbers to the Wholesale department that carries them. This differs from the example outlined in the Broker pattern in that only one Wholesale department will carry a part. There is no need to distribute one request to multiple Wholesale departments simultaneously to see who can supply the part at the earliest date.

3.4.6 Serial Process Application pattern

The Serial Process application pattern, shown in Figure 3-7, extends the 1-to-N topology provided by the Broker application pattern by facilitating the sequential execution of business services hosted by a number of target applications. Thus it enables the orchestration of a serial business process in response to an interaction initiated by the source application.

click to expand
Figure 3-7: Serial Process application pattern

Business and IT drivers

The primary business driver for selecting this Application pattern is to support the composition of end-to-end business process flows by leveraging business services implemented by a number of target applications.

From an IT perspective the key driver for selecting this Application pattern is improving the flexibility and responsiveness of IT by externalizing the process flow logic from individual applications.

Solution

The Serial Process application pattern is broken down into three logical tiers:

The Source Application tier is the same as for the Broker application pattern.
The Serial Process Rules tier supports most of the services provided by the broker tier in the broker application pattern, including routing of requests, protocol conversion, message broadcasting, and message decomposition / recomposition. In addition, it supports the separation of business process flow logic from individual application logic. The process logic is governed by serial process rules that define execution rules for each target application, together with control flow and data flow rules. It may also include any necessary adapter rules. The combination of these process execution rules are stored in read-only databases. This externalization of process flow logic is essential for the implementation of a flexible and responsive IT environment that can respond quickly to changing business needs. It also makes it possible to compose new end-to-end processes by combining different business services provided by different applications. Finally, this tier utilizes a work-in-progress (WIP) database to store the intermediate results from the execution of different process steps.
The Target Application tier is the same as for the Broker application pattern.

Guidelines for use

The flexibility and responsiveness provided by this Application pattern is heavily dependent on the externalization of process execution logic from individual applications. Applications designed based on a Service Oriented Architecture (SOA) approach, with well defined coarse-grained business services that represent a unit of work, are better suited for participation in this Application pattern. One must be able to compose these business services into an end-to-end process flow. A given service may need to participate in more than one end-to-end process.

Typically, legacy applications are not designed with this thinking in mind. Similarly, many of the legacy applications have significant amounts of process logic embedded within them. These constraints in existing environments may pose challenges to fully implementing the vision promised by this Application pattern. Careful refactoring of legacy and packaged applications by wrappering them into business services is a good starting point for the eventual wide-spread implementation of this Application pattern within an enterprise.

Composition of process flows by tieing together different applications may introduce the need for compensating transaction support. This is especially the case when certain participating target applications do not leverage XA compliant transaction processing engines. In such cases, it may be necessary to design compensating transaction pairs for every affected transaction and execute them if there is a need to reverse a particular portion of the process flow. Participating legacy and packaged target applications may need to be modified to introduce compensating transactions if they do not already implement such mechanisms.

Finally, in selecting middleware products that facilitate automation of business processes pay particular attention to the Business Process Management capabilities supported by the business process design tools and the process execution engines. The eventual goal is to enable business users to compose business processes and make necessary changes with minimal involvement from IT professionals. The business processes thus defined must be easily exported into a process execution engine. More sophisticated business process management tools allow for the definition of metrics during the process design to measure the effectiveness of process implementation and support monitoring of the metrics in the process execution engine.

Benefits

The Serial Process application pattern improves the flexibility and responsiveness of an organization by implementing end-to-end process flows and by externalizing process logic from individual applications.

In addition, it provides a foundation for automated support for Business Process Management that enables the monitoring and measurement of the effectiveness of business processes.

Limitations

This Application pattern is ideally suited for straight through processing where human interactions are not necessary to complete an end-to-end process. If support for human interactions are needed to complete certain process steps, consider the Workflow variation of this Application pattern.

Similarly it does not support the parallel execution of multiple tasks. Under such circumstances, consider the more advanced Parallel Process application pattern discussed later in this chapter.

Putting the Application pattern to use

ABC Electronics, an electronics retailer/wholesaler, wants to integrate their retail department with their two inventory wholesale departments, namely Wholesale A and Wholesale B. Currently, these three departments have proven IT infrastructures but have no interconnectivity. ABC Electronics wants to focus on automating the inventory replenishment process. Typically, the retail department places orders with Wholesale A. However, when the Wholesale A is unable to guarantee delivery within 7 days, Wholesale B is contacted to check the anticipated delivery date and the order is placed with departments that guarantees the shortest delivery date.

To meet these business process automation requirements, ABC Electronics chooses the Serial Process application pattern. The primary driver for this selection is the need for externalization of process logic from individual application thus promoting flexibility and responsiveness to changing business needs.

3.4.7 Serial Process: Workflow variation

The Serial Process Workflow variation of the Serial Process application pattern, shown in Figure 3-8, extends the basic serial process orchestration capability by supporting human interaction for completing certain process steps.

click to expand
Figure 3-8: Serial Workflow variation

Business and IT drivers

All the business and IT drivers listed under the Serial Process application pattern apply to this variation as well. The additional business driver for selecting this variation is the need to support human interaction and intervention within the process flow. Support for long running transactions is another IT driver, which is often a pre-requisite for the automation of complex process flows involving human interaction.

Solution

The Serial Workflow variation is broken down into three logical tiers:

The Source Application tier is the same as for the Serial Process application pattern.
The Serial Workflow Rules tier supports all the services provided by the serial process rules tier within the Serial Process application pattern. In addition, it supports certain tasks within the process to be routed to human actors for completion. To accomplish this the process execution rules are augmented with task-resource relationships that define which resources are capable of performing which tasks. In this context:
- A task is a portion of the end-to-end process.
- Resources are capable of executing these tasks.
- People, departments, and target applications can all be resources capable of executing a particular task.
This tier resolves the task-resource relationship during the execution of a process. If the need for human interaction is identified, the task is added to a worklist associated with an individual or a department as a work item to be completed by a human and the process is typically suspended until the completion of the task.

Finally, this tier provides support for long running transactions and utilizes a work-in-progress (WIP) database to store the intermediate results from the execution of different process steps until the complete execution of the end-to-end process.
The Target Application tier is the same as for the Serial Process application pattern.

Guidelines for use

The following guidelines apply to this variation in addition to the guidelines that are documented under the Serial Process application pattern.

It is recommended that people-based exception handling be implemented for majority of the automated tasks within the process. In other words, if an automated task reaches certain error conditions, human actors must be able to intervene and handle the exceptions.

Benefits

The Serial Workflow application pattern improves the flexibility and responsiveness of an organization by implementing end-to-end process flows that externalize process logic from individual applications. Further flexibility is introduced by the externalization of task-resource resolution rules.

In addition, it provides a foundation for automated support for Business Process Management that enables monitoring and measurements of the effectiveness of business processes.

Limitations

It does not support the parallel execution of multiple tasks. Under such circumstances, consider the more advanced Parallel Process application pattern and Parallel Workflow variation discussed later in this chapter.

Putting the Application pattern to use

ABC Electronics, an electronics retailer/wholesaler, wants to integrate their retail department with their two wholesale departments, namely Wholesale A and Wholesale B. Currently, these three departments have proven IT infrastructures but have no interconnectivity. ABC Electronics wants to focus on automating the inventory replenishment process. Typically, the retail department places orders with Wholesale A. However, when the Wholesale A is unable to guarantee delivery within 7 days, Wholesale B is contacted to check the anticipated delivery date.

The main change from the scenario used in Serial Process application pattern section is documented below. If both Wholesale A and Wholesale B cannot offer delivery within 7 days a retail dept. manager must review the shortest anticipated delivery date proposed by the wholesale department systems and approve the order before placing the same. The intent of this review is to determine if other sourcing options must be considered.

To meet these business process automation requirements, ABC Electronics chooses the Serial Workflow variation of Serial Process application pattern. The primary drivers for this selection include the need for externalization of process logic from individual application thus promoting flexibility and responsiveness to changing business needs and need to support human interaction.

3.4.8 Parallel Process Application pattern

The Parallel Process application pattern, shown in Figure 3-9, extends the basic serial process orchestration capability provided by the Serial Process application pattern by supporting parallel (concurrent) execution of the sub-processes.

click to expand
Figure 3-9: Parallel Process application pattern

Business and IT drivers

All the business and IT drivers listed under the Serial Process application pattern apply to this Application pattern as well. The additional business driver for selecting this pattern is the need to reduce cycle time through the parallel execution of certain portions of the process flow.

Solution

The Parallel Process application pattern is broken down into three logical tiers:

The Source Application tier is the same as for the Serial Process application pattern.
The Parallel Process Rules tier supports all the services provided by the serial process rules tier within the Serial Process application pattern. In addition, the interaction initiated by the source application may control parallel (concurrent) sub-processes on multiple target applications. Each sub-process may consist of a sequence of operations executed in succession on a target application. This parallelism requires that additional start and join conditions be defined for sub-processes executing in parallel. This requires sophisticated runtime engines that can initiate parallel threads of control, and ensure these threads join upon completion, and manage them as a unit (for example to allow cancellation of the process, or to report its status).
The Target Application tier is the same as for the Serial Process application pattern.

Guidelines for use

The following guidelines apply to this variation in addition to the guidelines that are documented under the Serial Process application pattern.

The implementation of parallel processes without sufficient support from the selected runtime engine would require the development of excessive custom code. The need for parallel process execution must be analyzed before middleware selection decisions are finalized.

Judicious use of parallelism is a powerful tool for reducing the cycle time of a process in the right circumstances. However, in practice, it is critical to ensure that all the error scenarios are carefully analyzed, and that the impact of these scenarios upon the end user experience is thoroughly understood. The number of error scenarios and processing complexity increases exponentially with the degree of parallelism. Hence best practice is to start serial, and introduce limited parallelism only where there is a clear and worthwhile benefit.

Benefits

In addition to providing all the benefits provided by the Serial Process application pattern, this pattern provides a foundation for the reduction of cycle times by implementing parallel processes.

Limitations

Parallel processes are more complex to design, test, and operate than serial processes.

In addition, this Application pattern is ideally suited for straight through processing where human interactions are not necessary to complete an end-to-end process. If support for human interactions are needed to complete certain process steps, consider the Workflow variation of this Application pattern.

Putting the Application pattern to use

The main difference from the scenario used in Serial Process and Serial Workflow application patterns sections is that here both Wholesalers are queried in parallel to find who offers the shortest delivery time. In other words here Wholesale Dept. A is not considered as the defacto supplier of parts. The order is then automatically placed with the wholesale department that offers the shortest delivery date.

To meet these business process automation requirements, ABC Electronics chooses the Parallel Process application pattern. The primary drivers for this selection include the need for externalization of process logic from individual application thus promoting flexibility and responsiveness to changing business needs and the need for reducing cycle time of queries by simultaneously enquiring the two departments for the best delivery date.

3.4.9 Parallel Process: Workflow variation

The Parallel Process Workflow variation of the Parallel Process application pattern, shown in Figure 3-10, extends the basic parallel process orchestration capability by supporting human interaction for completing certain process steps. This is the most sophisticated Process-focused Application pattern in the domain of Application Integration patterns.

click to expand

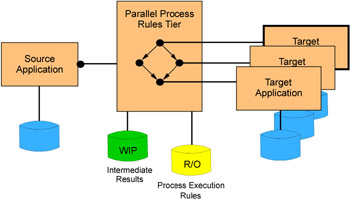

Figure 3-10: Parallel Workflow variation

Business and IT drivers

All the business and IT drivers listed under the Parallel Process application pattern apply to this variation as well. The additional business driver for selecting this variation is the need to support human interaction and intervention within the process flow. Support for long running transactions is another IT driver, which is often a pre-requisite for the automation of complex process flows involving human interaction.

Solution

The Parallel Workflow variation is broken down into three logical tiers:

The Source Application tier is the same as for the Parallel Process application pattern.
The Parallel Workflow Rules tier supports all the services provided by the parallel process rules tier within the Parallel Process application pattern. In addition, it supports certain tasks within the process to be routed to human actors for completion. To accomplish this the process execution rules are augmented with task-resource relationships that define which resources are capable of performing which tasks. In this context:
- A task is a portion of the end-to-end process.
- Resources are capable of executing these tasks.
- People, departments, and target applications can all be resources capable of executing a particular task.
This tier resolves the task-resource relationship during the execution of a process. If the need for human interaction is identified, the task is added to a worklist associated with an individual or a department as a work item to be completed by a human and the process is typically suspended until the completion of the task.

Finally, this tier provides support for long running transactions and utilizes a work-in-progress (WIP) database to store the intermediate results from the execution of different process steps until the complete execution of the end-to-end process.
The Target Application tier is the same as for the Parallel Process application pattern.

Guidelines for use

The following guidelines apply to this variation in addition to the guidelines that are documented under the Parallel Process application pattern.

It is recommended that people-based exception handling be implemented for all automated tasks within the process. In other words, if an automated task reaches certain error conditions, human actors must be able to intervene and handle the exceptions.

Benefits

The Parallel Workflow application pattern improves the flexibility and responsiveness of an organization by implementing end-to-end process flows that externalize process logic from individual applications. Further flexibility is introduced by the externalization of task-resource resolution rules.

It supports the reduction of cycle time by supporting parallel execution of portions of a process flow.

In addition, it provides a foundation for automated support for Business Process Management that enables monitoring and measurement of the effectiveness of business processes.

Limitations

Only a few middleware products are capable of supporting all the capabilities needed to realize this Application pattern. If this Application pattern is implemented using middleware products that don't support the necessary capabilities, the implementation could be very complex.

Putting the Application pattern to use

The main difference from the scenario used in Parallel Process application patterns sections is document here. In this scenario both Wholesalers are queried in parallel to find who offers the shortest delivery time. The order is then automatically placed with the wholesale department that offers the shortest delivery date, unless the shortest delivery time received from the wholesale departments exceeds 10 business days. In that case, a human intervention is required by the Retail Department Manager to review the anticipated delivery date to determine other sourcing options which must be considered.

To meet these business process automation requirements, ABC Electronics chooses the Parallel Workflow variation of the Parallel Process application pattern. The primary drivers for this selection include the need for externalization of process logic from individual application thus promoting flexibility and responsiveness to changing business requirements, the need for reducing cycle time of queries by simultaneously enquiring the two departments for the best delivery date, and the need for supporting human interaction during the execution of the process flow.

< Day Day Up >
