Hack 38. Tune Your Newtonian Reflector for Maximum Performance

Align your optics to provide the best possible image quality.

Collimation is the process of aligning all mirrors and lenses in a telescope so that they share a common optical axis. Awell-collimated scope provides the best images its mirror or objective lens is capable of providing. A poorly collimated scope has significantly degraded image qualityhow degraded it is depends upon how poor the collimation is.

To understand how important proper collimation is, consider two telescopes of the same aperture and focal ratio. One scope has a typical mass-market Chinese mirror, accurate to perhaps 1/4 wavelength or about 0.80 Strehl. (Strehl ratio is a statistical measure of overall mirror quality based on interferometry testing; a perfect mirrorimpossible in the real worldhas a Strehl ratio of 1.0.) The second scope has a premium mirror, made by a master optician such as Carl Zambuto or R. F. Royce. That premium mirror may cost 5 or 10 times as much as the mass-market mirror, and it is accurate to perhaps 1/20 or 1/40 wavelength, say 0.98 Strehl. There is no comparison between these mirrors. The first is mediocre. The second is world-class.

So we set up the two scopes and point them at Jupiter or Saturn. The inexpensive scope is perfectly collimated. The premium scope is just slightly out of collimation. How do the images compare? The cheap mirror beats the premium mirror, and not just by a little bit. The cheap mirror wins hands-down. The moral here is that if you want a premium scope but can't afford one, don't despair. Learn to collimate properly instead, and the images in your inexpensive scope will be at least as good as those in a typical premium scope. (Until you run into someone with a premium scope who also knows how to collimate. Oh, well.)

Proper collimation is particularly important for telescopes with fast focal ratios [Hack #9]. An f/10 SCT, for example, provides only very slightly degraded images, even if it is only roughly collimated. Conversely, an f/6 reflector must be collimated with reasonable care to provide anything near its best image quality. Around f/5.6 to f/5, precise collimation becomes critical. Large Dobs often have focal ratios of f/4.5 down to perhaps f/4.2, and we know of one large Dob with an f/3.5 mirror. At focal ratios that fast, precise collimation is not just critical but is an ongoing concern during observing sessions. For example, owners of very fast Dobs often collimate several times during an observing session. As time passes, the temperature drop is sufficient to take the Dob out of collimation. Even changing the elevation of the Dob from, say, 30° to 60° may require tweaking the primary collimation to bring the scope back into alignment. Needless to say, owners of very fast scopes soon become accomplished experts at collimating.

There are actually two types of collimation: optical collimation and physical collimation. In a scope that is optically but not physically collimated, the optics are all aligned properly, but the optical axis does not coincide with the physical axis of the tube. For example, the optical axis may be off-center or tilted relative to the physical axis of the tube.

Precise optical collimation is necessary for any type of scope if it is to provide good images. Precise physical collimation is unnecessary for a manual telescope but is important for a goto scope or one that uses digital setting circles. This is true because the computerized object location function in such scopes assumes that the scope is both optically and physically collimated. If the optical and physical axes differ, the object locating functions of the scope will not function properly. If you have such a scope, refer to the manual for details about how to collimate it properly.


Collimating a Newtonian reflector has the reputation of being a black art, but in truth there's nothing very complicated about it. The secret, if there is one, is to do things in the proper order. Most beginners make the mistake of focusing their efforts exclusively on the primary mirror. That's understandable, we suppose. After all, the primary mirror is a big, impressive chunk of glass, and the primary collimation screws are readily accessible. But you can collimate the primary mirror until you're blue in the face, and it won't help unless you've first collimated the secondary mirror. Here's the proper sequence of steps:

  1. Adjust the position of the secondary mirror holder until the secondary mirror is centered under the focuser.

  2. Adjust the rotation and tilt of the secondary mirror until the primary mirror is exactly centered in the reflection from the secondary mirror.

  3. Finally, adjust the tilt of the primary mirror to bring its optical axis into alignment with the common optical axis of the focuser and secondary.

The first step in collimating a Newtonian reflector is to center the secondary mirror under the focuser. To begin, insert your sight tube or film can collimating tool [Hack #37] in the focuser, as shown in Figure 3-14, and peer through it to view the secondary mirror.

Figure 3-14. To begin collimating the secondary, insert the sight tube in the focuser


The secondary mirror is actually elliptical, but it is set at a 45° angle (to reflect at 90°), so from the focuser it appears to be a circle. Slide the sight tube in or out of the focuser (or use the focuser itself) to adjust the position of the sight tube until the circular edge of the secondary mirror is exactly concentric with, and just inside, the circle formed by the bottom of the sight tube, as shown in Figure 3-15.

Figure 3-15. Adjust seating depth until the edges of the secondary and sight tube are concentric


The focusers on most mass-market scopes, including inexpensive Dobs, typically have relatively loose tolerances and quite a bit of slack in them. For example, you may be able to wiggle the sight tube significantly within the focuser, changing the apparent position of the secondary mirror. Similarly, the focuser may abruptly shift position noticeably when you reverse focusing direction.

Short of replacing the stock focuser with an expensive after-market Crayford focuser, the best solutions are either to use Teflon tape to remove some of the slack or simply to try to strike a happy medium. That is, set the focuser at a midrange position, where you would typically use it when actually observing, and tighten the setscrew against the sight tube, just as you would if you were using an eyepiece.


The "hall of mirrors" effect caused by the multiple reflections between the secondary and primary mirrors can be confusing when you use a sight tube. To eliminate this problem until you have the secondary mirror collimated properly, ask a helper to hold a sheet of paper between the secondary and primary mirrors, as shown in Figure 3-16. Blocking the primary mirror this way eliminates confusing multiple reflections. Depending on your scope, it may also be helpful to put a sheet of white paper on the inside of the tube, opposite the focuser, to make the edge of the secondary mirror easier to see.

Figure 3-16. Hold a sheet of paper between the secondary and primary to block multiple reflections


If the secondary mirror appears circular and is centered in the sight tube, you're ready to proceed to the next step. If the secondary mirror is offset up or down the tube, you'll need to slide the secondary mirror holder in or out until the secondary mirror is centered. Most secondary holders have a single central retaining screw, shown in Figure 3-17, that must be loosened to adjust the position of the secondary holder. (Yes, our scope is dusty; that's what happens to a working scope.)

Figure 3-17. Loosen the secondary retaining screw to adjust the position of the secondary


Be very careful when loosening the secondary retaining screw. If it reaches the end of its travel, the portion of the secondary holder that holds the mirror may drop free and fall onto your primary mirror, damaging the primary mirror, the secondary mirror, or both. That's a good reason to remove the primary mirror cell before you collimate the secondary. Alternatively, keep the scope tube horizontal so that if the secondary holder does fall it won't slide down the tube and bounce off the primary mirror.

In particular, some early Dobsonians made by Synta and sold by Orion and others had secondary retaining screws that were much too short to allow a full range of adjustment on the secondary. The first time you collimate your secondary, verify that the screw is long enough to support the secondary holder safely. If it is not, take the original screw to a hardware store and get a longer version with the same thread.


To move the secondary mirror closer to or farther from the primary, loosen the retaining screw and adjust the overall seating depth of the three adjustment screws visible in Figure 3-17. Drive all three screws farther in to move the secondary mirror closer to the primary, or back all three screws farther out to move the secondary toward the front of the tube and away from the primary.

The next step is to adjust the rotation and tilt of the secondary mirror so that the primary mirror appears to be centered in the reflection from the secondary. If you have a laser collimator, use it to perform this step. To do so, insert the laser collimator into the focuser and turn it on. Look down the tube to see the spot of the laser on the primary mirror. Use the three adjustment screws on the secondary holder to adjust the rotation and tilt of the secondary mirror until the laser beam strikes the primary mirror in the middle of the center spot [Hack #33], as shown in Figure 3-18.

Figure 3-18. The view looking down the tube while using a laser to collimate the secondary mirror


The primary mirror is the circular object at the center of the image, surrounded by the gray of the scope's tube, with the focuser visible as a blurred image at the upper right and the secondary holder even more blurred at the lower left. The primary mirror reflects a crescent of the upper part of the tube (at left), the ceiling of the room where this image was taken, the spider vanes that hold the secondary, the secondary mirror itself, and part of Robert's arm and hand. The two bright spots reflected at the upper right of the primary mirror are the bottom of the laser collimatorreflected in the secondary mirrorand the laser spot on the secondary mirror itself. None of that matters, but it is visually confusing. What does matter is the laser spot on the primary, which is the bright spot at the center of the primary, is centered in the notebook reinforcing ring. Having that laser spot centered in the reinforcing ring means that the secondary is collimated properly, pointing to the center of the primary mirror.

If you don't have a laser collimator, you can use the sight tube for this step. To do so, adjust the tilt and rotation of the secondary mirror (or have someone do it for you) as you view the reflections through the sight tube. When the secondary mirror is collimated properly, you will see the secondary mirror edge concentric with the edge of the sight tube, the primary mirror edge concentric with the secondary mirror edge, and the crosshairs of the sight tube centered on the center spot of the primary mirror.

Once you have the secondary properly collimated, the hard part is done. Fortunately, you probably won't have to repeat this process unless you remove the secondary mirror for cleaning, install an upgraded focuser, or take some other action that affects secondary collimation. Most secondary holders maintain collimation well. We seldom have to adjust secondary collimation from one year to the next.

The final step in collimating your scope is to collimate the primary, which consists of adjusting the primary mirror tilt until the optical axis of the primary is the same as the optical axis of the secondary and focuser. Most mirror cells use three adjustment screws (see Figure 3-19) and three locking screws. Turning an adjustment screw in or out slightly changes the tilt of the primary. Once the primary is collimated, you tighten all three locking screws to clamp the mirror cell in place. It's much easier to collimate the primary if you have a helper. One person sits or lies at the rear of the scope and tweaks the adjustment screws while the other person watches the effect from the front of the scope.

The fastest, easiest, and most precise way to collimate the primary is to use a Barlowed laser [Hack #39]. If you don't have a laser collimator, you can use a Cheshire or sight-tube/Cheshire to collimate the primary, albeit somewhat less precisely.

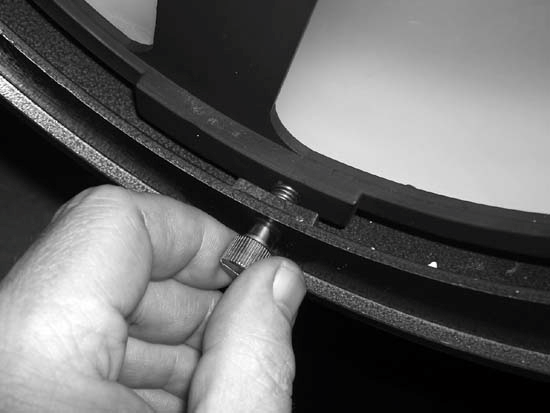

Figure 3-19. A primary mirror cell adjustment screw


To do so, illuminate the fine-ground 45° reflective surface of the Cheshire (visible at the center of Figure 3-14). If you are collimating after dark, point your red flashlight at the Cheshire opening. Tweak the primary adjustment screws until the center mark on the primary mirror coincides with the donut shape visible in the Cheshire.

Collimating the primary without a helper can be confusing because you constantly have to move between the rear of the scope, where the adjustment screws are, and the front of the scope, where you can view the effect of the adjustments you've made. If you frequently collimate the primary by yourself, it's worthwhile to create a graphic map on a 3 x 5 card to indicate the effects of tightening each of the three primary collimating screws. For example, if you are using the Barlowed laser method to collimate your primary [Hack #39], you might note that tightening primary collimation screw #1 (label the screws on your map) moves the shadow toward 3 o'clock; tightening screw #2 moves the shadow toward 7 o'clock; and screw #3 moves the shadow toward 11 o'clock.


That's all there is to collimating a Newtonian reflector. It takes a few minutes to collimate the secondary, and perhaps a minute or two to collimate the primary. Surprisingly, many Newtonian reflector owners seldom collimate their scopes, and most never collimate them. But the 5 or 10 minutes you spend to get your scope properly collimated pays off in much better image quality and more visible detail, particularly on planets and other lowcontrast objects.

You're not quite finished, though. When you finish using your sight-tube/Cheshire and laser collimator, the scope is very close to being perfectly collimated. Close, but not close enough. The final step to achieving perfect collimation is to use a defocused star to tweak the collimation to perfection [Hack #40].
