Using Metadata Sets


In earlier lessons, you learned how to switch between two sets of metadata displays in both the Viewer and Browser. You can also use the View Options window to choose which metadata set you would like to have displayed in each view, as we did earlier in this lesson.

But what if none of the standard metadata sets display the exact metadata you'd like to see? Fortunately, Aperture lets you define your own custom metadata sets. What's more, once you create a set you can access it from any metadata list in any view.

One common use of the metadata display is to check an image's file format. (This is important while editing an image, for example, because you use Aperture's White Balance and Exposure controls differently to correct a RAW file than a non-RAW file.)

When working with projects that contain images with different file formats, you'll want to be able to quickly determine the original filename and format of each image. Of course you can always check the Metadata Inspector to find that information, but there's an easier way.

Creating a Metadata Set

In this exercise, you'll create a custom metadata set that displays the original filename and format along with your thumbnails.

Tip

Metadata sets are global within Aperturethey're not attached to any particular project, so you can create them at any time regardless of what you're currently working on.


1.

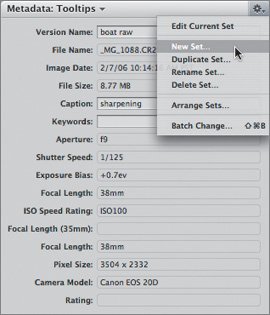

In the Metadata Inspector, choose New Set from the Metadata Action pop-up menu.

2.

In the Name field, type Version and Filename as the name of your new set.

The new set will automatically be selected and will be shown in the Metadata Inspector. Because it doesn't yet have any metadata tags in it, the pane will appear empty.

To add metadata tags, simply open a metadata category from the various categories at the bottom of the Metadata Inspector. Click to select the checkboxes next to each tag you want to include. The metadata tags we're interested in are in the Other category.

3.

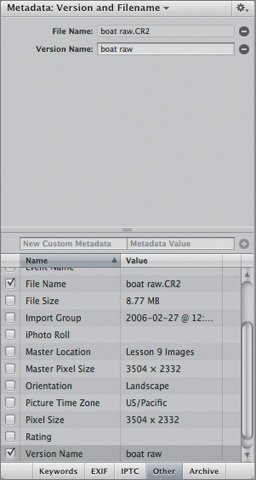

Click the Other button and then click to select the File Name checkbox and add a filename tag to the current set.

4.

Click to select the Version Name checkbox to add it as well. You may need to scroll down the list to find it.

5.

Click the Other button to close the Other metadata category.

Our new metadata set is now defined. Notice that so far, it does not appear in either the Viewer or the Browser. We've simply defined the new set; we haven't told Aperture to use it anywhere. Let's do that next.

Viewing a Metadata Set

We'll modify the View Options to define where our new Version and Filename metadata set will appear.

1.

Press Command-Option-S to return to the Standard layout.

2.

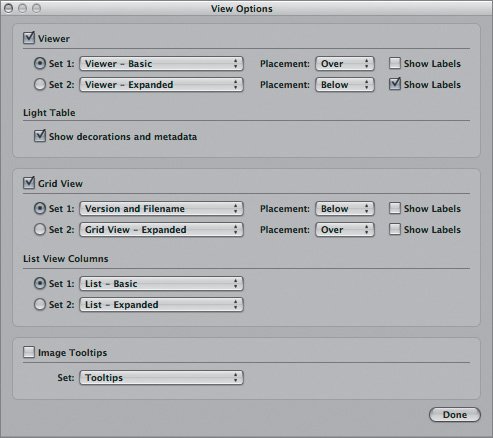

Press Command-J to open the View Options window.

The View Options window lets you select which metadata sets are displayed in the Viewer, the Browser, and elsewhere in the interface. As you've seen, you can select two different metadata sets for the Viewer and the Browser, and switch between them using keyboard shortcuts. Let's configure the Grid View Set 1 so that it displays our new Version and Filename metadata set.

3.

Make sure that the Grid View checkbox is selected. This will make the Browser Grid View active, so we can see the effects of our changes as we make them.

4.

In the Grid View area, click the radio button next to Set 1.

5.

Choose Set 1 > Version and Filename.

Both the file and version names should now appear below your image thumbnails in the Browser.

6.

Click Done to close the View Options window.

Tip

You can attach your new set to either Set 1 or Set 2. We recommend that you leave the Grid View Expanded set as the default for Set 2, because it provides a lot of valuable information that you'll find useful to access while editing.
