Task 3 How to Edit a Path

Photoshop offers a number of ways to edit a path; you can add, subtract, or move points with ease. You can edit a path at any time as you're making it or later in the process. This task shows all the ways to edit a path, enabling you to pick and choose the options applicable to your project.

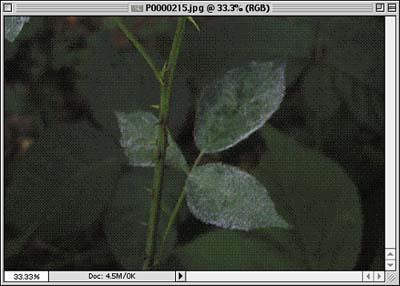

1. Open the File with the Path

   Choose File, Open to launch the file containing the path you want to edit.

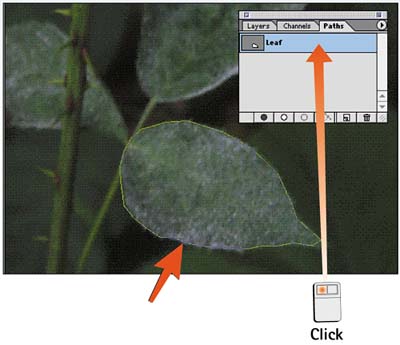

2. Select the Path

   Choose Window, Paths to launch the Paths palette. Click the title of the desired path to select it. The path becomes visible in the image window as you highlight it.

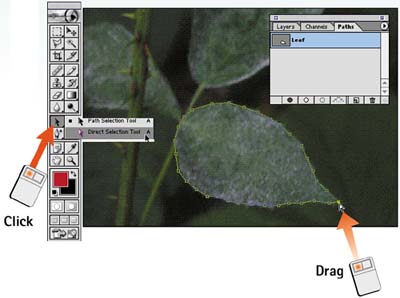

3. Move a Point

   Click the Direct Selection tool in the toolbox. Click in the middle of a line segment to show the points on the path. Click and drag a point to move it. If the point is related to a curved segment, handles appear when you select the point, enabling you to modify the curve.

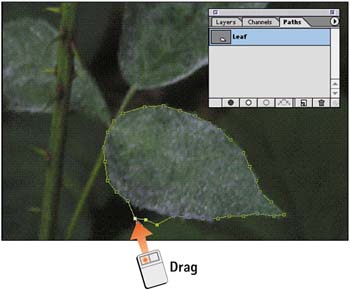

4. Move Multiple Points

   To move multiple points as a group, select the Direct Selection tool and show the points in the path, as described in Step 3. After clicking the first point, press and hold the Shift key and click additional points (the points darken to show that they are selected). When multiple points are selected, click and drag to move them as a group.

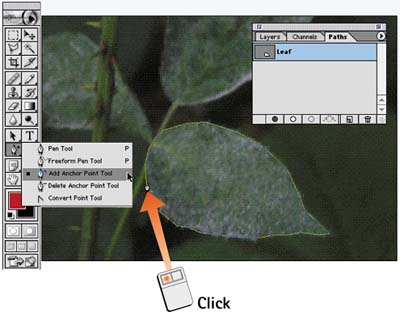

5. Add a Point

   To add a point to a path, begin by selecting the Add Anchor Point tool from the Pen tool pop-out menu in the toolbox. Select the path you want to edit from the Paths palette, position the cursor over the path segment, and click to add a new point. Click and drag to create a point with a curved path segment.

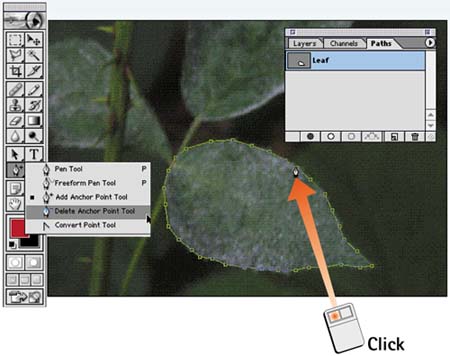

6. Delete a Point

   To delete a point from a path, begin by selecting the Delete Anchor Point tool from the Pen tool pop-out menu in the toolbox. Select the path you want to edit from the Paths palette, position the cursor over the point to be removed, and click to delete.

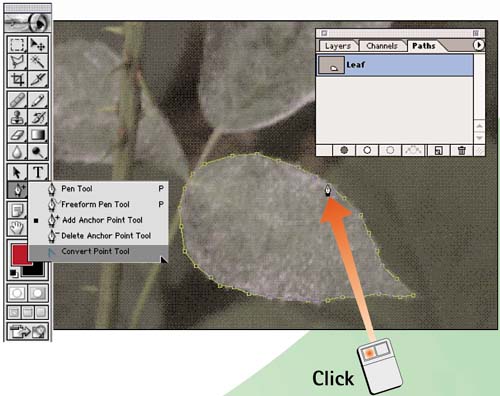

7. Convert an Anchor Point

   A complex path consists of both curved and straight-line segments, which are determined by smooth and corner anchor points, respectively. To convert between smooth and corner points, select the Convert Point tool and position it over the point to be converted. Click to convert a smooth point to a corner point; click and drag to convert a corner point to a smooth point.
