You're on the road and you've found a location with a Wi-Fi broadcast device that your mobile computer can talk to. A Wi-Fi broadcast device is variously referred to as an access point, an AP, or a hotspot.
With your access point located, you're ready to sit right down, establish a wireless connection, and start reading your email and surfing the Web, right? Not so fast, partner.
It's really important to understand that being able to "talk" with a wireless access point just means that you can "talk" with a wireless access point. It doesn't mean that you can connect to the Internet unless the wireless access point is itself connected to the Internet.
So if Starbucks or whoever wants to provide you with the chance to surf on their turf while you sip that latte, Starbucks needs to provide an Internet connection. Generally, this connection is wired, and uses a cable or DSL (digital subscriber line) telephone line for high speeds.
A high-speed wire brings the Internet to the location, and a Wi-Fi access point broadcasts the wireless Internet connectivity to wireless devices (in technogeek-speak, the wireless devices are generically referred to as clients).
Between the Internet connection and the Wi-Fi access point, there also needs to be some hardware designed to connect with the Internet and share the connectivity. There are a whole lot of different ways this can be done, depending on many factors. For example, is a wired network also involved? I'll be getting into these details in Part IV.
For now, you need to understand that connecting to the Internet via Wi-Fi involves four things:
Your Wi-Fi device (the client)
A Wi-Fi broadcast unit (the access point)
Network connectivity hardware (such as a router and modem)
The actual Internet connection (usually via cable or DSL)

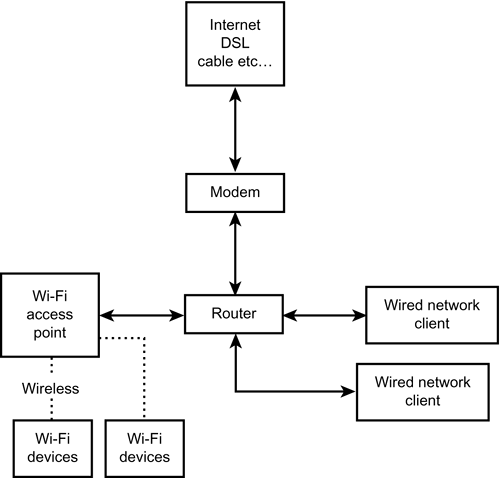

A fairly typical simple Wi-Fi network setup of this sort, that lets Wi-Fi users connect to the Internet, is shown in Figure 1.1.
Figure 1.1. In order to connect to the Internet via Wi-Fi, the wireless Wi-Fi access point must be plugged into equipment and an Internet connection, usually cable or DSL.
