and error prone)
to manipulate Boolean expressions by hand.(
a)
. The function is We can simplify this equation by applying one of the Boolean simplification theorems, called the uniting theorem:
Notice that the two truth table rows that make up the on-set of F have A asserted, while one row has B =
0 and the other has B =
1. For a subset of the on-set (
in this case, the whole on-set)
, A's value stays the same while B's value changes. This allows us to factor out B using the uniting theorem.
Now examine Figure 2.24(
b)
. The function is Applying the uniting theorem again, we obtain Once again, the on-set contains two rows in which B's value does not change (
it is equal to 0)
and A's does change. Thus we can factor out A, leaving
The essence of simplification is repeatedly to find two-element subsets of the on-set in which only one variable changes its value while the other variables do not. You can eliminate the single varying variable from the term by applying the uniting theorem.
Wouldn't it be nice if there was a way to arrange the truth table rows so that the entries to which this technique could be applied are obvious? We shall present just such a representation, the Boolean cube, next.
Figure 2.25 shows the form of Boolean 1-, 2-, 3-, and 4-cubes. Each node in the figure is labeled with its coordinates in the n-dimensional space. The axes are listed in alphabetical order, from highest to lowest order. The structure generalizes beyond four dimensions, but it is rather hard to visualize these.
Examples Mapping Truth Tables onto Cubes
Now let's examine how to map a truth table onto a cube, using the simple examples of Figure 2.24. The elements of the on-set are represented by black nodes and those of the off-set by white nodes (
don't cares are represented by X nodes, although we do not have any in this example)
.
Figure 2.26 shows the mapping. Observe that the elements of the functions' on-sets are next to each other in the truth table's Boolean cube. This tells you that the uniting theorem can be used to eliminate a variable. In the figure, we have circled elements of the on-set that are directly adjacent. We call such a circled group of nodes an adjacency plane. Each adjacency plane corresponds to a product term. In Figure 2.26(
a)
, the circled nodes yield the term A; in Figure 2.26(
b)
, the term is
You can think about these adjacencies as distances between nodes in the Boolean cube. Two nodes are distance 1 apart if they are connected by an edge in the cube. They are distance 2 apart if they are separated by a path of two connected edges. If this is the case, the two nodes are on the same plane. Two nodes are distance 3 apart if they are separated by a path of three connected edges and no shorter path exists between the two nodes. Then the nodes are in the same three-dimensional cube.
In the on-set/adjacency plane of Figure 2.26(
a)
, A's value stays 1 while B's varies between 0 and 1. This is an immediate clue that the uniting theorem can reduce the function to the single literal A. Similarly, in Figure 2.26(
b)
the adjacency plane is circled, and the nodes involved have B retaining its value while A varies. The uniting theorem reduces the expression to the term
As an example of a three-variable function and its mapping onto a 3-cube, let's return to the full adder's carry-out function examined in Section 2.2.1. The truth table and its mapping onto a 3-cube are shown in Figure 2.27.
The on-set is arranged on 3 one-dimensional adjacency planes: the edges containing the nodes 011-111, 111-101, and 110-111. In the first segment, A varies between 0 and 1 while B and Cin remain asserted and unvarying. This reduces to the term B Cin. For the second segment, B varies, yielding the term A Cin. In the final segment, Cin varies, and the resulting term is AB. The final expression becomes
This method lets us obtain the final expression much more quickly than using Boolean algebra. Note that each adjacency plane contributes one product term to the final expression. Since each plane is an edge in a three-dimensional cube, the two 3-variable min-terms in the plane are reduced to a single 2-variable product term.Cout =
B Cin+
A Cin+
AB
One entire face of the cube is included in the on-set. Intuitively, we should expect this surface to reduce to the single literal A because all other variables vary between 0 and 1 within the surface.
Let's verify that this is the case. The four line segments on the surface are denoted by the nodes 110-111, 101-111, 100-101, and 100-110. Applying the uniting theorem to each segment independently yields the terms AB, AC, A and A respectively. We can continue to apply the uniting theorem:
In the 3-cube, if the on-set is a two-dimensional plane, it contributes a single 1-variable product term to the expression for the function.
For the 3-cube, the relationship between the dimensionality of the adjacency plane and the term it represents is the following:
=
This is the same as a min-term. =
=
A. (
perhaps including elements of the don't-care set as well)
. This process is called finding a minimum cover of the function. (
a line)
, 2 (
a square)
, 3 (
a cube)
, etc. apart within the n-dimensional cube that represents the function. The problem for humans is the difficulty of visualizing adjacencies in more than three dimensions. To circumvent this prob-lem, at least for expressions up to six variables, we introduce an alternative reformulation of the truth table called the Karnaugh map or K-map.Figure 2.29 shows K-map templates for two-, three-, and four-variable Boolean functions. The entries are labeled with the decimal equivalent of the binary number formed by joining the column with the row indices. For example, entry 3 in the three-variable K-map is labeled by the column AB =
01 and the row C =
1 (
ABC =
0112 =
3)
. The labels are included only for your convenience in filling in the K-map from the truth table: they correspond to the row number of the associated truth table entry.
The only surprising thing is the ordering of the indices: 00, 01, 11, 10. This is called a Gray code. It has the property that when advancing from one index to the next adjacent index, only a single bit changes value. This property is not true for the standard binary sequence 00, 01, 10, 11.
The structure of the K-map is chosen so that any two adjacent (
horizontal or vertical, but not diagonal)
elements are distance 1 apart in the equivalent cube representation (
they share a common edge)
.
This is shown in Figure 2.30 for a three-variable K-map and three-dimensional Boolean cube. Note that K-map square 0 is adjacent to squares 1, 2, and 4. The K-map actually folds back on itself. The elements in the rightmost column are adjacent to the elements in the leftmost column; the elements in the top row are adjacent to the elements in the bottom row.
Example Two-Variable Maps
Figure 2.31 shows the two-variable maps for the example functions F and G of Figure 2.24. The K-map is filled in directly from the truth table. Each truth table row corresponds to a K-map entry. The values of the variables are the indices, and the truth table's output value is placed into the K-map's square with the corresponding index.
In Figure 2.31(
a)
, the terms of the function are as denoted by the 1's in the A =
1, B =
0 and A =
1, B =
1 map entries. We can apply the uniting theorem to reduce this to the single literal A. The K-map shows immediately that the two entries are adjacent. The A variable value remains unchanged while the B value varies from 0 to 1. Looking at this group should tell you that the B term can be eliminated, leaving us with A.
The same analysis holds for Figure 2.31(
b)
. The function is , and its on-set is row adjacent in the K-map. This demonstrates the advantage of the K-map over the truth table for recognizing adjacencies. A varies from 0 to 1 while B holds at 0 for this K-map row. We can reduce the function to the single literal
Example Three-Variable Maps
Figure 2.32 shows the three-variable K-map for the full adder carry-out function of Figure 2.27. You can see that three different two-element adjacencies cover the on-set (
recall that adjacency is not defined for diagonal entries)
. The first is the column indexed by A =
1, B =
1. Since Cin varies from 0 to 1, it can be eliminated, yielding the term AB. The second is the adjacency indexed by A =
0, B =
1, Cin =
1 and A =
1, B =
1, Cin =
1. A varies while B and Cin remain unchanged, yielding the term B Cin.
Observe that the bar labeled B along the bottom of the K-map tells you that B remains unchanged within the middle two columns and in the two outer columns. The final adjacency is indexed by A =
1, B =
1, Cin =
1 and A =
1, B =
0, Cin =
1. B varies and A and Cin remain unchanged, resulting in the term A Cin. Once again, the labeled bar at the top of the K-map reminds us that A remains unchanged within the last two columns and in the first two columns. The final expression is AB +
B Cin +
A Cin. There is one term in the reduced expression for each circled adjacency group in the K-map.
Let's revisit the function of Figure 2.28. Its K-map is given in Figure 2.33. The four elements of the on-set are adjacent, and we can circle them all. Within this grouping, both B and C vary while A remains asserted, reducing to the single literal A.
Another case of adjacency is illustrated by Figure 2.34, which shows the K-map for the function F(
A,B,C)
=
m0 +
m4 +
m5 +
m7. Recall that the leftmost and rightmost columns of the K-map are adjacent. Thus we can combine m0 (
)
and m4 (
)
to form the term We can also combine m5 and m7 to form the term AC. Thus,
You might be tempted to circle the terms m4 and m5, as they are also adjacent. But you obtain the most reduced solution only by finding the smallest number of the largest possible adjacency groups that completely cover the on-set. Recall that the number of groups equals the number of product terms, and larger groupings have a smaller number of literals. The term formed from m4 and m5 is redundant because both entries are already covered by other terms. We will become more formal about the process of obtaining the minimum solution a bit later on in this section.
Figure 2.35 contains the K-map for the complement of Figure 2.34. All we have done is to replace the 0's with 1's and vice versa. The complement can be read out immediately as Contrast this method with the method using Boolean algebra:
The K-map yields the result much more quickly!
Example Four-Variable Maps
Now let's consider a four-variable function F(
A,B,C,D)
=
S m(
0,2,3,5,6,7,8,10,11,14,15)
. The K-map is shown in Figure 2.36. Remember that the strategy is to cover the on-set with as few groups as possible, so we must try to find large groups of adjacency. Also, don't forget that the number of elements in an adjacency group is always a power of 2.
The elements m2, m3, m6, m7, m10, m11, m14, m15 form an adjacency group of eight. This collapses to the single literal C. (
Recall that a three-dimensional plane within a four-dimensional cube yields a term with 4 - 3 =
1 literal.)
The elements m5 and m7 result in the term (
a one-dimensional plane in a four-dimensional space results in a term with 4 - 1 =
3 literals)
. The final grouping involves the corner terms: m0, m2, m8, m10. To see this adjacency, you must recognize that the map folds back on itself.
Examining Figure 2.37 should make this clearer. In the figure, look for the min-term indices 0000, 0010, 1010, and 1000. The corner elements reduce to the term (
a two-dimensional plane within a four-dimensional space results in a term with 4 - 2 =
2 literals)
. The minimized form of the function is
Finding the Minimum Product of Sums Form The K-map can also be used to find a function's minimum product of sums expression. In this case we search for elements of the off-set, simply circling the maximal adjacent groups of 0's. We interpret the indices in a fashion complementary to the procedure for finding the minimum sum of products expression. If the variable that is left unchanged in a grouping of 0's has index 0, then that variable contributes an asserted literal to the term. If the index is 1, it contributes a complemented literal.
This method works because we begin by solving for the function's complement in sum of products form, by circling the 0's. Then we apply DeMorgan's theorem to get a product of sums expression by interpreting the indices as complements. Let's look at an example.
Let's reconsider the K-map in Figure 2.36. in minimum sum of products form is found by circling the K-map's 0's rather than its 1's: . By applying DeMorgan's theorem, we get F in product of sums form:
Figure 2.38 shows the same K-map as Figure 2.36, but this time with the 0's circled. You can see that three groups of two 0's each can be found. Since these are one-dimensional adjacency groups in a four-dimensional space, there are three literals in each term. The term formed from M4 and M12 is (
+
C +
D)
: B, C, and D remain unchanged and B's index is 1 while C's and D's are 0. This is just shorthand for applying DeMorgan's theorem to the term of the complement. The terms formed from M1, M9 and M9, M13 are (
B +
C +
)
and (
+
C +
)
, respectively. Each term is ANDed to form the final expression:
(
A,B,C,D)
=
S m(
1,3,5,7,9)
+
S d(
6,12,13)
. The group of four elements reduces to . If we assume that the X's are all 0, we can cover the remaining member of the on-set with the term . However, if we assume that the element d13 is 1, we can form a larger adjacency group that yields the term . This has fewer literals. So the values of don't cares should be selected to maximize the size of the adjacency groups. The expression for F becomes +
.(
A,B,C,D)
=
P M(
0,2,4,8,10,11,14,15)
P D(
6,12,13)
. Figure 2.40 shows the groupings we use to find the minimum product of sums form. We form a group of eight 0's (
remember that the top and bottom rows are adjacent)
and one of four 0's by judicious use of don't cares (
D6, D12 =
0)
. The expression for F becomes .
=
N2, N1 < N2, and N1 > N2. We denote the numbers N1 and N2 by the single-bit inputs A, B and C, D, respectively. It is fairly straightforward to fill in the table. For example, the first row compares the N1 input 00 to the N2 input 00. The F1 function (=)
is true, while F2 (
<)
and F3 (
>)
are false. In the second row, 00 < 01, so F1 and F3 are false while F2 is true. The rest of the table is filled in a similar way.

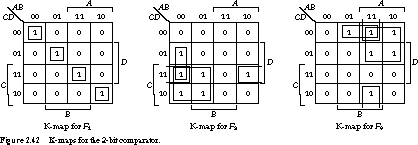

The next step is to prepare K-maps for each of the outputs. This is shown in Figure 2.42.
Let's start with the K-map for F1. There are no adjacencies in this K-map! Each of the four elements of the on-set contributes a four-variable term to the expression for F1:
This is the minimized sum of products form for the function. However, by using Boolean algebra, we can simplify this expression some more:
We can get a much simpler form, (
A XNOR C)
(
B XNOR D)
, but it is not in sum of products form. 1's on K-map diagonals provide a good hint that the function can be expressed more economically in terms of XOR or XNOR operations.
The K-map for F2 has three adjacency groups, two with two elements and another with four elements. The former yield product terms with three literals, and , the latter a term with two literals, . The expression for F2 becomes
The K-map for F3 is a little more complicated. It consists of two groups of two elements each (
three literals)
and one group of four elements (
two literals)
. The minimum sum of products expression for F3 becomes
Two-Bit Binary Adder The next function we examine is a 2-bit binary adder. It takes as input two 2-bit binary numbers, N1 and N2, and produces a 3-bit binary number, N3, as the result. The block diagram and truth table for these functions are shown in Figure 2.43.
Once again, N1 is represented by the inputs A and B, N2 by C and D, and N3 by the Boolean functions X, Y, and Z.
The K-maps for the outputs are shown in Figure 2.44.
The maps for the X and Z outputs are more straightforward than for Y, and we will start with these. The function for X reduces to two 2-element groups (
three literals each)
and one 4-element group (
two literals)
:
Z exhibits two 4-element groups (
two literals each)
and reduces to the expression:
By careful examination of the K-map, we can often spot opportunities for reduction using XOR and XNOR operators. We will show this by reducing the literal count for the function Y by good use of XOR/XNOR.
The two straightforward terms of Y are and . The remaining four single-element groups yield the terms: , , , and . We can further reduce and (
to and )
but for the moment we do not do this.
Factoring yields the expressions
We can factor the latter two expressions:
Y becomes:
This expression has just seven literals. Compare it to the reduced form, assuming only AND, OR, and NOT gates are allowed:

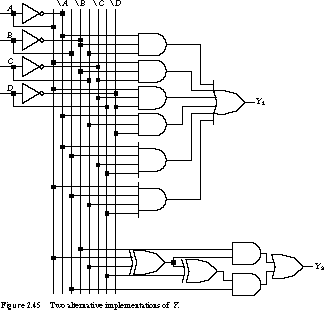

This expression requires two 4-input AND gates, four 3-input AND gates, and a 6-input OR gate, for a total of 7 gates and 20 literals. The revised expression requires a 2-input OR gate, two 2-input XOR gates, and two 2-input AND gates, a total of 5 simpler gates and 7 literals to implement the function. The two alternative implementations are shown in Figure 2.45.
BCD Increment by 1 Function We introduced the BCD increment by 1 function in Section 2.2.4 as an example of a function with don't cares. The truth table of Figure 2.23 yields the four 4-variable K-maps of Figure 2.46.
We attempt to form the largest adjacency groups we can, taking advantage of don't cares to expand the group wherever possible. The function W can be implemented by two terms: . These are formed from adjacency groups of two elements and four elements, respectively. Notice how we have taken advantage of adjacencies that wrap from the top of the K-map to the bottommost row.
The function X is implemented by three terms: . Once again, we have attempted to take advantage of adjacencies that wrap from top to bottom or left to right in the K-map.
The function Y is implemented by two terms: . This is derived from groups of two and four entries, respectively. The final function Z is implemented by a group of eight nodes, which reduces to the single literal .
Once again, notice that adjacency groups are always formed by groups of 1 (
4 literals)
, 2 (
3 literals)
, 4 (
2 literals)
, 8 (
1 literal)
, or 16 (
0 literals, a constant 0 or 1)
elements, always a power of 2. Also notice how the adjacencies are formed: above, below, to the left, to the right of an element of the on-set, including those that wrap around the edges of the K-map.
(
each prime implicant is an implicant with as few literals as possible)
. Each prime implicant corresponds to a product term in the minimum sum of products expression for the function. The trick is to find the fewest prime implicants that cover the elements of the on-set. If a particular element of the on-set is covered by a single prime implicant, it is called an essential prime impli-cant. All essential primes must be part of the minimized expression. Example Illustrating the Definitions
Let's look at some examples to make these concepts more concrete. The four-variable K-map of Figure 2.47 contains six prime implicants: , , , , , and . Only and are essential. Adding the additional implicant covers the entire on-set. Thus the minimized expression for the function becomes:
As another example, consider the function whose K-map is given in Figure 2.7.
It contains five prime implicants: , , , , and . All but the first implicant are essential. The minimized form is
As a final example, consider the K-map of Figure 2.49.
It contains four prime implicants: , , , and . The implicant is inessential, since the 1's it covers are already covered by the remaining implicants, all of which are essential. The minimized function is
Deriving a Minimized Expression from a K-map A procedure for finding a minimum sum of products expression from the K-map is the following:
(
adjacency groups)
thus formed always contain a number of elements that is a power of 2. Example Application of the Step-by-Step Algorithm
(
A,B,C,D)
=
 m(
4,5,6,8,9,10,13)
+
d(
0,7,15)
. (
a)

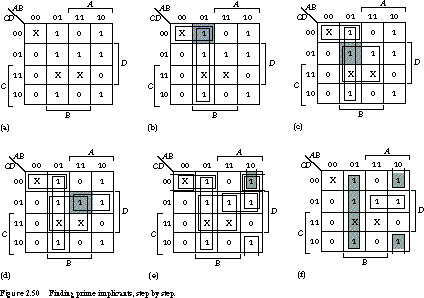

gives the starting configuration. We scan down the K-map's columns, top to bottom and left to right, skipping 0's and X's, searching for a 1. The first 1 we encounter is term m4. Expand in all directions, combining adjacent 1's and X's into the largest implicant groups you can find. Two such groupings are possible, represented by the terms and . These are circled in Figure 2.50(
b)
. (
c)
.(
d)
.(
e)
. The process continues with m9 and m10, but these add no new prime implicants.(
f)
, and , are the essential primes because they exclusively cover m6 and m10, respectively. (
a)
. Let's consider the following Boolean function:
The filled in K-map is shown in Figure 2.51F (
A,B,C,D,E)
=
 m(
2,5,7,8,10,13,15,17,19,21,23,24,29,31)
(
b)
. We have omitted the 0 entries to reduce the clutter in the figure. When searching for adjacencies, besides looking in the four horizontal and vertical squares as we did in the four-variable K-map, we must also look either up or down. The example's on-set is covered by the four prime implicants (
group of 8)
, (
group of 4)
, (
group of 2)
, and (
group of 2)
. (
a)

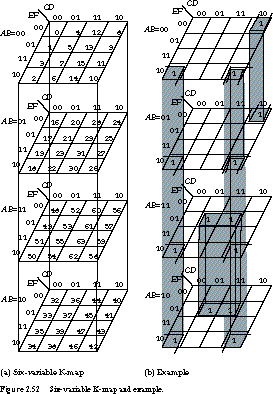

. An example six-variable K-map is shown in Figure 2.52(
b)
. The function is
In addition to horizontal and vertical adjacencies, the planes immediately above and below the element being examined must be checked. The top plane also wraps around onto the bottom plane. In the figure, the on-set is covered by three prime implicants:F (
A,B,C,D,E,F)
=
 m(
2,8,10,18,24,26,34,37,42,45,50,53,58,61)
(
a group of 8)
, (
a group of 4)
, and (
a group of 4)
.
