Intel Pentium 4 (Seventh-Generation) Processors


The Pentium 4 was introduced in November 2000 and represented a new generation in processors (see Figure 3.60). If this one had a number instead of a name, it might be called the 786 because it represents a generation beyond the previous 686 class processors. Three main variations on the Pentium 4 have been released, based on the processor die and architecture. They are called the Willamette, Northwood, and Prescott. The processor dies are shown in Figure 3.61.

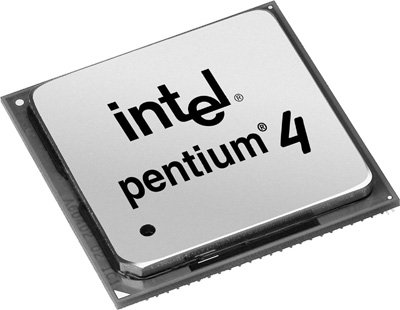

Figure 3.60. Pentium 4 FC-PGA2 processor.


Figure 3.61. The CPU dies for the Pentium 4 CPU based on the Willamette, Northwood, and Prescott cores.


The main technical details for the Pentium 4 include

  • Speeds range from 1.3GHz to 3.8GHz.

  • 42 million transistors, 0.18-micron process, 217 sq. mm die (Willamette).

  • 55 million transistors, 0.13-micron process, 131 sq. mm die (Northwood).

  • 125 million transistors, 0.09-micron process, 112 sq. mm die (Prescott).

  • Software compatible with previous Intel 32-bit processors.

  • Some Prescott versions support EM64T (64-bit extensions) and Execute Disable Bit (buffer overflow protection).

  • Processor (front-side) bus runs at 400MHz, 533MHz, 800MHz, or 1066MHz.

  • Arithmetic logic units (ALUs) run at twice the processor core frequency.

  • Hyper-pipelined (20-stage or 31-stage) technology.

  • Hyper-threading technology support in all 2.4GHz and faster processors running an 800MHz bus and all 3.06GHz and faster processors running a 533MHz bus.

  • Very deep out-of-order instruction execution.

  • Enhanced branch prediction.

  • 8KB or 16KB L1 cache plus 12K micro-op execution trace cache.

  • 256KB, 512KB, or 1MB of on-die, full-core speed 256-bit-wide L2 cache with eight-way associativity.

  • L2 cache can handle up to 4GB RAM and supports ECC.

  • 2MB of on-die, full-speed L3 cache (Extreme Edition).

  • SSE2SSE plus 144 new instructions for graphics and sound processing (Willamette and Northwood).

  • SSE3SSE2 plus 13 new instructions for graphics and sound processing (Prescott).

  • Enhanced floating-point unit.

  • Multiple low-power states.

See "IA-32e 64-Bit Extension Mode (AMD64, x86-64, EM64T)," p. 50.

Intel abandoned Roman numerals for a standard Arabic numeral 4 designation to identify the Pentium 4. Internally, the Pentium 4 introduces a new architecture Intel calls NetBurst microarchitecture, which is a marketing term and not a technical term. Intel uses NetBurst to describe hyper-pipelined technology, a rapid execution engine, a high-speed (400MHz, 533MHz, 800MHz, or 1066MHz) system bus, and an execution trace cache. The hyper-pipelined technology doubles or triples the instruction pipeline depth as compared to the Pentium III (or Athlon/Athlon 64), meaning more and smaller steps are required to execute instructions. Even though this might seem less efficient, it enables much higher clock speeds to be more easily attained. The rapid execution engine enables the two integer arithmetic logic units (ALUs) to run at twice the processor core frequency, which means instructions can execute in half a clock cycle. The 400MHz/533MHz/800MHz/1066MHz system bus is a quad-pumped bus running off a 100MHz/133MHz/200MHz/266MHz system clock transferring data four times per clock cycle. The execution trace cache is a high-performance Level 1 cache that stores approximately 12K decoded micro-operations. This removes the instruction decoder from the main execution pipeline, increasing performance.

Of these, the high-speed processor bus is most notable. Technically speaking, the processor bus is a 100MHz, 133MHz, 200MHz, or 266MHz quad-pumped bus that transfers four times per cycle (4x), for a 400MHz, 533MHz, 800MHz, or 1066MHz effective rate. Because the bus is 64 bits (8 bytes) wide, this results in a throughput rate of 3200MBps, 4266MBps, 6400MBps, or 8532MBps.

Table 3.44 shows how this transfer rate compares to various speeds of dual-channel RDRAM and DDR SDRAM.

As you can see from Table 3.46, the throughput of the Pentium 4's processor bus is an exact match for the most common types of RDRAM and DDR SDRAM memory. The use of dual-channel memory means that modules must be added in matched pairs. Dual banks of PC1600 (DDR266), PC2100 (DDR333), or PC3200 (DDR400) DDR SDRAM are less expensive than equivalent RDRAM solutions, which is why virtually all newer Pentium 4 chipsets support DDR SDRAM or the newer DDR2 SDRAM.

In the Pentium 4's 20-stage or 31-stage pipelined internal architecture, individual instructions are broken down into many more substages than with previous processors such as the Pentium III, making this almost like a RISC processor. Unfortunately, this can add to the number of cycles taken to execute instructions if they are not optimized for this processor. Early benchmarks running existing software showed that existing Pentium III or AMD Athlon processors could easily keep pace with or even exceed the Pentium 4 in specific tasks; however, this is changing now that applications are being recompiled to work smoothly with the Pentium 4's deep pipelined architecture.

Another important architectural advantage is hyper-threading technology, which can be found in all Pentium 4 2.4GHz and faster processors running an 800MHz bus and all 3.06GHz and faster processors running a 533MHz bus. Hyper-threading enables a single processor to run two threads simultaneously, thereby acting as if it were two processors instead of one. For more information on hyper-threading technology, see the section "Hyper-Threading Technology," earlier in this chapter.

The Pentium 4 initially used Socket 423, which has 423 pins in a 39x39 SPGA arrangement. Later versions used Socket 478; recent versions use Socket T (LGA775), which has additional pins to support new features such as EM64T (64-bit extensions), Execute Disable Bit (protection against buffer overflow attacks), Intel Virtualization Technology, and other advanced features. The Celeron was never designed to work in Socket 423, but Celeron and Celeron D versions are available for Socket 478 and Socket T (LGA775), allowing for lower-cost systems compatible with the Pentium 4. Voltage selection is made via an automatic voltage regulator module installed on the motherboard and wired to the socket.

Use Table 3.47 as a comprehensive guide to Pentium 4 processor features. As you review the many Pentium 4 models listed in this table, you can easily see that there have actually been at least six distinct Pentium 4 generations, based on the most significant technology changes listed here:

  • Socket 423

  • Socket 478

  • Socket 478 Hyper-Threading Technology

  • Socket 478 Extreme Edition (L3 cache)

  • Socket T (LGA775)

  • Socket 775 EM64T (64-bit extensions)

Table 3.47. Pentium 4 Processor Information

CPU Speed (GHz)

Bus Speed (MHz)

Bus Speed (GBps)

HT Support

Boxed S-spec

OEM S-spec

Stepping

CPUID

L2 Cache

L3 Cache

Max. Temp

Max. Power

Socket

Process

Transistors

Proessor Model Number, Notes
