EJB.6.9 Object Interaction Diagrams for a Stateless Session Bean

This section contains object interaction diagrams that illustrate the interaction of the classes.

EJB.6.9.1 Client-Invoked create()

Figure EJB.6-8 illustrates the creation of a stateless session object.

Figure EJB.6-8. OID for Creation of a Stateless Session Object

EJB.6.9.2 Business Method Invocation

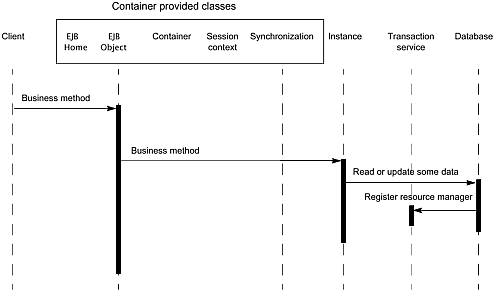

Figure EJB.6-9 illustrates the invocation of a business method.

Figure EJB.6-9. OID for Invocation of Business Method on a Stateless Session Object

EJB.6.9.3 Client-Invoked remove()

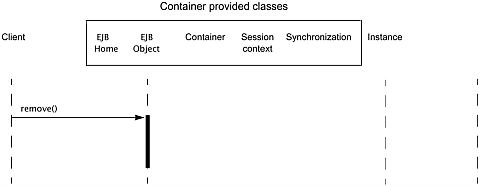

Figure EJB.6-10 illustrates the destruction of a stateless session object.

Figure EJB.6-10. OID for Removal of a Stateless Session Object

EJB.6.9.4 Adding Instance to the Pool

Figure EJB.6-11 illustrates the sequence for a container adding an instance to the method-ready pool.

Figure EJB.6-11. OID for Container Adding Instance of a Stateless Session Bean to a Method-Ready Pool

Figure EJB.6-12 illustrates the sequence for a container removing an instance from the method-ready pool.

Figure EJB.6-12. OID for a Container Removing an Instance of a Stateless Session Bean from Ready Pool
