Selecting and Editing Text


When you want to add, edit, format, copy, cut, or paste all or part of a shape’s text, you first need to know how to select it, which Table 4-1 shows. You can move the insertion point by clicking anywhere in the text block or by using the arrow keys on the keyboard.

Table 4-1: Techniques for Selecting Text

Action

Tool

Technique

Select a text block

Click the Text Block tool, and then click a shape.

Open a shape’s text block and select all the text in it

Do one of the following: Double-click the shape.

Select the shape, and then press F2.

Display the insertion point

Open the text block as described in the preceding row of this table, and then click once.

Display the insertion point

Click a shape or text.

Select part of the text in a text block

Click a shape, and then drag to select the text you want. Or click at the start of the text you want, hold Shift, and then click at the end.

Select a word

Click a shape, and then double-click a word.

Select a paragraph

Click a shape, and then triple-click a paragraph.

You select text when you’re about to do something to it, such as copy, cut, or format it. Unless you want to work with individual words, you can simply select the shape, and then take an action. For example, to format a shape’s text, you can select the shape, and then click a format. You don’t necessarily have to use the Text tool to select the text you want to format.

Cross Reference

For details, see “Formatting Text,” page 110.

Note

When you begin to type, Visio automatically zooms in on the drawing so that you can see what you are typing. To return to the original magnification, press the Esc key or click anywhere outside the shape or text block after you type the text.

start sidebar
Typing Special Characters

If you use the Insert, Symbol command in Microsoft Word or other Office programs, you might wonder how to add symbol and special characters in Visio. You can insert ANSI characters into text. The ANSI character set consists of 256 characters established by the American National Standards Institute. How ANSI characters look on-screen depends on which font you are using.

To type ANSI characters, follow these steps:

  1. Make sure your keyboard’s NumLock is enabled.

  2. Hold down the Alt key. Using the keys on the numeric keypad, type 0, type the numeric ANSI code for the character you want, and then release the Alt key. For example, to type an em dash (—), press Alt+0151, and then release the Alt key.

    If you are using Microsoft Windows XP or Microsoft Windows 2000, you can also do one of the following: Click Start, All Programs (click Programs in Windows 2000), Accessories, System Tools, Character Map. Select the font you wish to use and then choose the special character. Select it and then copy it. Return to Visio and paste it where you like.

end sidebar

Cutting, Copying, and Pasting Text

You cut, copy, or paste text within Visio diagrams and between other programs. The commands you use will look familiar if you use other Microsoft Office programs, as Table 4-2 shows. Note that Visio 2003 allows you to copy text and its format so that you can paste it into another application. Visio pastes text in rich-text format, so formats are preserved.

Table 4-2: Techniques for Cutting, Copying, and Pasting Selected Text

Action

Tool on Standard Toolbar

Keyboard Shortcut

Cut

Ctrl+X

Copy

Ctrl+C

Paste

Ctrl+V

The text you copy or cut in Visio is temporarily stored in the Windows Clipboard. It remains in the Clipboard until you cut or copy something else, which allows you to copy a shape or text once, and then paste it in mulle locations. (This is standard Windows behavior; it’s not unique to Visio by any means.)

Tip

Instead of copying and pasting, you can duplicate shapes wholesale—text and all— with one command. Select a shape, and then press Ctrl+D (or choose Edit, Duplicate). Visio creates a copy and pastes it on the drawing page.

Copying Text from Other Programs

You can also copy text from another program and paste it into Visio. For best results, create a text-only shape, and then paste the text. For example, in Microsoft Word, select the text you want, and then press Ctrl+C to copy it. In Visio, click the Text tool, drag to create a text-only shape in the location you want, and then press Ctrl+V to paste the Word text. Visio pastes the text and its formats.

Deleting Text from a Shape

When you delete text from a Visio shape, you remove only the text, not the text block. You can’t delete a text block, although a text block that doesn’t contain any text isn’t visible. If you delete all the text in a text-only shape, however, Visio also deletes the shape.

To delete text from a shape, follow these steps:

  1. Click the Text tool on the Standard toolbar, and then click a shape.

    Visio places the insertion point in the shape’s text block.

  2. Select the text you want, and then press the Delete key.

  3. Press Esc or click outside the shape to close the text block.

To delete a text-only shape, select the shape with the Pointer tool, and then press the Delete key.

Adding Text to Lines and Connectors

You can add text to any line or connector (that is, any 1-D shape). Where the text ends up depends on the shape. If you draw a line, select it, and then type, Visio places your text on the center of the line, as Figure 4-6 shows. To make the text more readable, you can adjust the size and position of the shape’s text block.


Figure 4-6: You can add text to any line you draw. By default, Visio centers the text on top of the line.


Figure 4-7: With the Format, Text command, you can choose a solid color to appear just behind the text to make it more readable.

Note

Because the background color fills in the area around the text, the color only appears when a shape contains text.

To put a solid background behind the text on a line, follow these steps:

  1. Select a line, and then choose Format, Text.

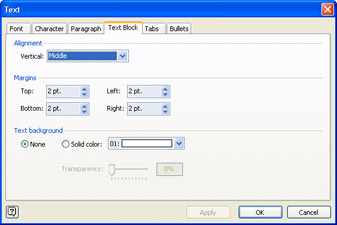

  2. Click the Text Block tab.

    click to expand

  3. In the Text Background area, select Solid Color. To display a color other than white behind the text, choose a color from the list box.

  4. Click OK.

    Visio fills only the area behind the shape’s text with the solid color you selected. If you type more text, the area of solid color is adjusted to fit.

    Tip

    You can apply this procedure to any shape with text, not just lines.

Repositioning Text on Lines and Connectors

If you’re using one of the many line or connector shapes from a Visio stencil, as Figure 4-8 shows, you typically don’t have to think about the text format. The Visio shape designer has done that for you, and you can just type and go. However, when you know the secrets to formatting text on lines, you can more easily customize the built-in connector shapes when you need to. For example, you can use the Text Block tool to move the location of the text on the line. To do this, click the Text Block tool, select the shape to display its text block, and then drag the text block to a new position. You can even drag the text block out of its associated shape.


Figure 4-8: These shapes from the Callouts stencil are really just lines with specially formatted text (and a few SmartShape formulas thrown in for good behavior). Use callout shapes to annotate your drawings.

Editing Locked Lines and Connectors

Many of the Visio callout and line shapes are locked to prevent the text from rotating as the line is dragged. Locking ensures that the text stays right side up when viewed on the page. You can tell that a shape is locked when you select it with the Text Block tool—padlock handles will appear.

To rotate text on a locked shape, follow these steps:

  1. Select the shape, and then choose Format, Protection.

  2. The Protection dialog box appears, as shown in Figure 4-9. If the shape is locked to prevent rotation, the Rotation check box is selected.

    click to expand
    Figure 4-9: The Note Box Triangles shape on the Borders And Titles stencil is a group that contains two text blocks: one for the title and one for other information.

  3. Clear the Rotation check box, and then click OK.

    On the drawing page, the padlock handles no longer appear on the selected shape.

  4. Click the Text Block tool, click the shape, and then drag a round corner handle to rotate the text block.

Adding and Editing Text in Groups

Because groups are composed of several shapes, each of which can have a text block, adding text can be a little more involved than with other shapes.

click to expand

In theory, here’s how you can add and edit text in a group:

  1. Click the Text tool, click a group, and then start typing to add text to the group’s text block.

    When you start typing, Visio zooms to 100 percent view so you can see the text more easily.

  2. If the group contains a shape with additional text that you want to edit, click the shape again to select it separately from the group, and then type.

  3. To close the text box, press Esc, or click outside the group.

    Tip

    To place an insertion point in one of a group’s shapes, subselect the shape, and then click the Text tool.

You can also use the Text Block tool to subselect shapes in a group and move or resize their text blocks.

Complications can arise when you’re working with a Visio-designed group that has special behavior. Some groups include text that you cannot edit; others are locked against text entry altogether. The intention of the shape designers is to make the group behave properly, given its diagram context. Even so, if you want to add text to a locked or protected shape, you usually can—but the shape might not work the same afterward.

Cross Reference

For details about groups and behavior options, see “Working with Groups,” page 668.

Adding Text on a Layer

In many offices that routinely create drawings such as blueprints or other plans, files are passed around for review, and reviewers add text comments directly to the drawing on a separate layer. Sometimes this process is called “redlining” a drawing, because review comments traditionally appear in red for certain drawings. Anyone can take advantage of this useful method of marking up a diagram or drawing in Visio without affecting the diagram itself, as Figure 4-10 shows. When you add text to a layer, you can format that layer differently to make the text easier to see or hide it temporarily to view only the diagram. You can also print just the objects—including text—on a particular layer.

click to expand
Figure 4-10: In this office layout, comments (which are shapes from the Callouts stencil) appear on a separate review layer so that text can be hidden or printed separately.

After you create a new layer specifically for your comments, you designate it as the active layer. If you haven’t used layers in Visio before, this might sound a little abstract, but all it means is that any objects you add to the drawing, including callout shapes or other text, will automatically be assigned to the layer. You can assign a color to the active layer, so that your comments are easier to see. A layer color doesn’t change a shape’s original color, but as long as the layer color is enabled, the shape is displayed using that color.

To create a separate layer for text, follow these steps:

  1. In the drawing you want to add comments to, choose View, Layer Properties. The Layer Properties dialog box appears.

    click to expand

  2. Click New. In the New Layer dialog box, type a name for the layer.

    For example, type Review or Comments.

  3. Click OK to close the New Layer dialog box.

    In the Layer Properties dialog box, Visio adds the new layer to the bottom of the list of layers and selects it.

  4. Click in the Active column for your new layer.

    A check mark appears next to the layer to show that it is the active layer for the drawing.

  5. If you want your comments to appear in a particular color, click the drop-down arrow in the Layer Color box, and select a color.

    The color you choose will be used to display all shapes and text assigned to your comments layer.

  6. Click OK, and then type comments or add shapes in your drawing.

    Shapes and text that you add are assigned to the comments layer and displayed in the layer color you selected.

After you’ve created a comments layer and added text to it, you can selectively hide, show, and print your comments or change their color as follows:

  • If you want to hide the comments layer and view only the drawing, as Figure 4-11 shows, choose View, Layer Properties, and then clear the check mark in the Visible column for your comments layer. Click OK.

    click to expand
    Figure 4-11: By setting the comments layer to not visible, you can see your drawing alone, without the text.

  • If you want to print only the comments, choose View, Layer Properties, and then clear the check mark in the Print column for every layer except your comments layer. Click OK, and then print the drawing.

  • If you want to view the comments in a different color, choose View, Layer Properties, select your comments layer, and then choose a different color in the Layer Color list. If you no longer want to use a layer color, clear the check mark in the Color column for your comments layer, and then click OK.

  • If you no longer want shapes and text to be assigned to your comments layer automatically, you must deactivate the layer. To do this, choose View, Layer Properties, and then clear the check mark in the Active column for your comments layer. Click OK.

Layers are also a powerful tool for organizing shapes in a drawing.

Cross Reference

For details about using layers, see “Controlling Shapes with Layers,” page 460.

Tip

If more than one person is reviewing a drawing, create a redlining layer for each reviewer and give each layer a different display color.

In fact, there might be times when you prefer to make comments and add a text layer to a drawing. However, when this is not the case, Visio 2003 adds the Markup feature common to many Microsoft Office programs. To access this feature, click Tools, Track Markup. This opens the Reviewing toolbar and the Review task pane.

To add a shape, drag it onto the drawing. Note that it is now a different color. This shows that it is a change. To insert a comment, click Insert Comment on the Review task pane. The markup is translucent, so you can easily see the original drawing beneath the markup.
