Relational Databases


The relational model is the basis for any relational database management system (RDBMS). A relational model has three core components: a collection of objects or relations, operators that act on the objects or relations, and data integrity methods. In other words, it has a place to store the data, a way to create and retrieve the data, and a way to make sure that the data is logically consistent.

start sidebar
Hierarchical and Network Databases

The relational model was first proposed by Dr. E. F. Codd in 1970. At that time, databases were primarily either of the hierarchical or network type.

A hierarchical database is similar in nature to a filesystem, with a root or parent node and one or more children referencing the parent. This makes for a very fast data-access path, but it has the disadvantages of low flexibility, lack of an ad-hoc query capability, and high application maintenance.

A network database has some advantages over the hierarchical model, including a data definition language, a data manipulation language, and data integrity. However, like hierarchical databases, network databases suffer from rigidity in database structure and high application maintenance costs.

Hierarchical and network-based databases are still used for extremely high-volume transaction-processing systems. IBM claims that 95% of the Fortune 1000 companies in the world still use IMS, a hierarchical database management system that is also web-enabled.

end sidebar

A relational database uses relations, or two-dimensional tables, to store the information needed to support a business. Let’s go over the basic components of a traditional relational database system and look at how a relational database is designed. Once you have a solid understanding of what rows, columns, tables, and relationships are, you’ll be well on your way to leveraging the power of a relational database.

relational database

A collection of tables that stores data without any assumptions as to how the data is related within the tables or between the tables.

Note

While this book focuses on the Oracle RDBMS for all of its examples and techniques, it’s good to know how Oracle fits in with other database vendors and platforms. Appendix C, “Common Database Platforms,” has an overview of the major RDBMS vendors and their products.

Tables, Rows, and Columns

A table in a relational database, alternatively known as a relation, is a two-dimensional structure used to hold related information. A database consists of one or more related tables.

table

The basic construct of a relational database that contains rows and columns of related data.

relation

A two-dimensional structure used to hold related information, also known as a table.

Note

Don’t confuse a relation with relationships. A relation is essentially a table, and a relationship is a way to correlate, join, or associate the two tables.

A row in a table is a collection or instance of one thing, such as one employee or one line item on an invoice. A column contains all the information of a single type, and the piece of data at the intersection of a row and a column, a field, is the smallest piece of information that can be retrieved with the database’s query language. (Oracle’s query language, SQL, is the topic of the next chapter.) For example, a table with information about employees might have a column called LAST_NAME that contains all of the employees’ last names. Data is retrieved from a table by filtering on both the row and the column.

row

A group of one or more data elements in a database table that describes a person, place, or thing.

column

The component of a database table that contains all of the data of the same name and type across all rows.

field

The smallest piece of information that can be retrieved by the database query language. A field is found at the intersection of a row and a column in a database table.

Note

SQL, which stands for Structured Query Language, supports the database components in virtually every modern relational database system. SQL has been refined and improved by the American National Standards Institute (ANSI) for more than 20 years. As of Oracle9i, Oracle’s SQL engine conforms to the ANSI SQL:1999 (also known as SQL3) standard, as well as its own proprietary SQL syntax that existed in previous versions of Oracle. Until Oracle9i, only SQL:1992 (SQL2) syntax was fully supported.

Primary Keys, Datatypes, and Foreign Keys

The examples throughout this book will focus on the hypothetical work of Scott Smith, database developer and entrepreneur. He just started a new widget company and wants to implement a few of the basic business functions using the Oracle relational database to manage his Human Resources (HR) department.

Note

Most of Scott’s employees were hired away from one of his previous employers, some of whom have over 20 years of experience in the field. As a hiring incentive, Scott has agreed to keep the new employees’ original hire date in the new database.

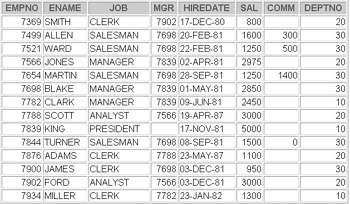

You’ll learn about database design in the following sections, but let’s assume for the moment that the majority of the database design is completed and some tables need to be implemented. Scott creates the EMP table to hold the basic employee information, and it looks something like this:

click to expand

Notice that some fields in the Commission (COMM) and Manager (MGR) columns do not contain a value; they are blank. A relational database can enforce the rule that fields in a column may or may not be empty. (Chapter 3, "Oracle Database Functions," covers the concept of empty, or NULL, values.) In this case, it makes sense for an employee who is not in the Sales department to have a blank Commission field. It also makes sense for the president of the company to have a blank Manager field, since that employee doesn’t report to anyone.

On the other hand, none of the fields in the Employee Number (EMPNO) column are blank. The company always wants to assign an employee number to an employee, and that number must be different for each employee. One of the features of a relational database is that it can ensure that a value is entered into this column and that it is unique. The EMPNO column, in this case, is the primary key of the table.

primary key

A column (or columns) in a table that makes the row in the table distinguishable from every other row in the same table.

Notice the different datatypes that are stored in the EMP table: numeric values, character or alphabetic values, and date values. The Oracle database also supports other variants of these types, plus new types created from these base types. Datatypes are discussed in more detail throughout the book.

As you might suspect, the DEPTNO column contains the department number for the employee. But how do you know what department name is associated with what number? Scott created the DEPT table to hold the descriptions for the department codes in the EMP table.

click to expand

The DEPTNO column in the EMP table contains the same values as the DEPTNO column in the DEPT table. In this case, the DEPTNO column in the EMP table is considered a foreign key to the same column in the DEPT table. With this association, Oracle can enforce the restriction that a DEPTNO value cannot be entered in the EMP table unless it already exists in the DEPT table. A foreign key enforces the concept of referential integrity in a relational database. The concept of referential integrity not only prevents an invalid department number from being inserted into the EMP table, but it also prevents a row in the DEPT table from being deleted if there are employees still assigned to that department.

foreign key

A column (or columns) in a table that draws its values from a primary or unique key column in another table. A foreign key assists in ensuring the data integrity of a table.

referential integrity

A method employed by a relational database system that enforces one- to-many relationships between tables.

Data Modeling

Before Scott created the actual tables in the database, he went through a design process known as data modeling. In this process, the developer conceptualizes and documents all the tables for the database. One of the common methods for modeling a database is called ERA, which stands for entities, relationships, and attributes. The database designer uses an application that can maintain entities, their attributes, and their relationships. In general, an entity corresponds to a table in the database, and the attributes of the entity correspond to columns of the table.

data modeling

A process of defining the entities, attributes, and relationships between the entities in preparation for creating the physical database.

Note

Various data modeling tools are available for database design. Examples include Microsoft Visio (www.microsoft.com/office/visio) and more robust tools such as Computer Associate’s ERwin (www3.ca.com/ Solutions/Product.asp?ID=260) and Embarcadero’s ER/Studio (www.embarcadero.com/products/erstudio/index.asp).

The data-modeling process involves defining the entities, defining the relationships between those entities, and then defining the attributes for each of the entities. Once a cycle is complete, it is repeated as many times as necessary to ensure that the designer is capturing what is important enough to go into the database. Let’s take a closer look at each step in the data-modeling process.

Defining the Entities

First, the designer identifies all of the entities within the scope of the database application. The entities are the persons, places, or things that are important to the organization and need to be tracked in the database. Entities will most likely translate neatly to database tables. For example, for the first version of Scott’s widget company database, he identifies four entities: employees, departments, salary grades, and bonuses. These will become the EMP, DEPT, SALGRADE, and BONUS tables.

Defining the Relationships between Entities

Once the entities are defined, the designer can proceed with defining how each of the entities is related. Often, the designer will pair each entity with every other entity and ask, “Is there a relationship between these two entities?” Some relationships are obvious; some are not.

In the widget company database, there is most likely a relationship between EMP and DEPT, but depending on the business rules, it is unlikely that the DEPT and SALGRADE entities are related. If the business rules were to restrict certain salary grades to certain departments, there would most likely be a new entity that defines the relationship between salary grades and departments. This entity would be known as an associative or intersection table, and would contain the valid combinations of salary grades and departments.

associative table

A database table that stores the valid combinations of rows from two other tables and usually enforces a business rule. An associative table resolves a many-to-many relationship.

intersection table

See associative table.

One-to-many The most common type of relationship is one-to-many. This means that for each occurrence in a given entity, the parent entity, there may be one or more occurrences in a second entity, the child entity, to which it is related. For example, in the widget company database, the DEPT entity is a parent entity, and for each department, there could be one or more employees associated with that department. The relationship between DEPT and EMP is one-to-many.

one-to-many relationship

A relationship type between tables where one row in a given table is related to many other rows in a child table. The reverse condition, however, is not true. A given row in a child table is related to only one row in the parent table.

In general, there are three types of relationships in a relational database:

One-to-one In a one-to-one relationship, a row in a table is related to only one or none of the rows in a second table. These relationships are not as common as one-to-many relationships, because if one entity has an occurrence for a corresponding row in another entity, in most cases, the attributes from both entities should be in a single entity.

one-to-one relationship

A relationship type between tables where one row in a given table is related to only one or zero rows in a second table. This relationship type is often used for subtyping. For example, an EMPLOYEE table may hold the information common to all employees, while the FULLTIME, PARTTIME, and CONTRACTOR tables hold information unique to full time employees, part time employees and contractors respectively. These entities would be considered subtypes of an EMPLOYEE and maintain a one-to-one relationship with the EMPLOYEE table.

Many-to-many In a many-to-many relationship, one row of a table may be related to many rows of another table, and vice versa. Usually, when this relationship is implemented in the database, a third entity is defined as an intersection table to contain the associations between the two entities in the relationship. For example, in a database used for school class enrollment, the STUDENT table has a many-to-many relationship with the CLASS table—one student may take one or more classes, and a given class may have one or more students. The intersection table STUDENT_CLASS would contain the combinations of STUDENT and CLASS to track which students are in which class.

many-to-many relationship

A relationship type between tables in a relational database where one row of a given table may be related to many rows of another table, and vice versa. Many-to-many relationships are often resolved with an intermediate associative table.

Assigning Attributes to Entities

Once the designer has defined the entity relationships, the next step is to assign the attributes to each entity. This is physically implemented using columns, as shown here for the SALGRADE table as derived from the salary grade entity.

click to expand

Iterate the Process: Are We There Yet?

After the entities, relationships, and attributes have been defined, the designer may iterate the data modeling many more times. When reviewing relationships, new entities may be discovered. For example, when discussing the widget inventory table and its relationship to a customer order, the need for a shipping restrictions table may arise.

Once the design process is complete, the physical database tables may be created. This is where the DBA usually steps in, although the DBA probably has attended some of the design meetings already! It’s important for the DBA to be involved at some level in the design process to make sure that any concerns about processor speed, disk space, network traffic, and administration effort can be addressed promptly when it comes time to create the database.

Logical database design sessions should not involve physical implementation issues, but once the design has gone through an iteration or two, it’s the DBA’s job to bring the designers “down to earth.” As a result, the design may need to be revisited to balance the ideal database implementation versus realities of budgets and schedules.
