The kthread Table



The kthread Table

Originally, HP-UX managed jobs only at the process level, and the proc table contained all information relating to the execution of a process by the kernel. HP-UX 10.0 introduced the kthread structure as a first step toward implementation of a fully threaded kernel environment. Although this was only a first step toward a true multithreaded environment, it initiated the division of static process-related parameters and dynamic thread related values into separate structures. The proc table contains static values and pointers to resources shared equally by all of its threads, while the kthread structure(s) contain dynamic information relating to their execution and runtime environment.

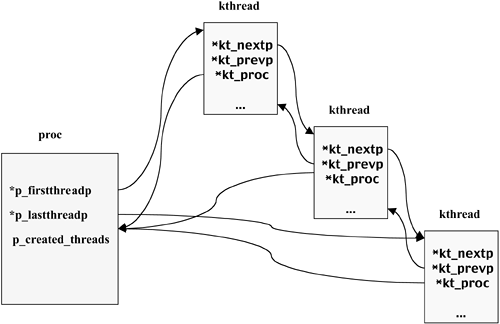

First, let's examine the manner in which a proc table entry and its kthreads are linked together. In Figure 5-3, we see this relationship mapped out. The proc table maintains a pointer to the first kthread and last (most recently created) kthread. In addition, a count is kept of all the created threads. Please note that this count is not incremented for the original thread, so a process with a single original thread will show p_created_threads = 0 until the first sibling thread is spawned.

Figure 5-3. The kthread Table

graphics/05fig03.gif


The kthread structure maintains next/previous links and each sibling kthread has a direct pointer to its parent proc structure entry for quick access. In addition, each kthread has an indirect pointer to a uarea structure via a pregion structure (both of which are discussed later in this chapter).

Beginning with HP-UX 11.i, the kthread table is now a dynamic linked list. As with the proc table, entries no longer needed are placed on a free list (as opposed to having their space returned to the kernel memory allocation arena), and new entries are allocated as needed, up to a tunable limit, when the free list is empty.

Let's examine the fields of interest in the kthread structure, shown in Listing 5.2.

Listing 5.2. q4> fields struct kthread
  These forward and reverse links are used to place a thread  into an appropriate run or sleep queue   0 0  4 0 *        kt_link   4 0  4 0 *        kt_rlink As we mentioned, each kthread has a direct pointer to its proc  structure and its uarea   8 0  4 0 *        kt_procp  52 0  4 0 *        kt_upreg SMP systems make use of this spinlock to synchronize access to  this structure  12 0  4 0 *        kt_lock Next we see forward and previous linkage pointers connecting  all the active kthreads  16 0  4 0 *        kt_factp  20 0  4 0 *        kt_pactp All the sibling threads of a single process are linked through  these two pointers.  24 0  4 0 *        kt_nextp  28 0  4 0 *        kt_prevp All kthread structures are linked to a global kthread list  64 0  4 0 *        kt_global_kthread Thread status and flag values for the thread (see enum  kthread_flag in kthread_private.h)  32 0  4 0 enum4    kt_flag  36 0  4 0 enum4    kt_cntxt_flags  44 0  4 0 enum4    kt_stat 180 0  4 0 enum4    kt_flag2 184 0  4 0 enum4    kt_flag_tl Waiting threads maintain a sleep wait channel pointer and a  forward and reverse pointer into a wait list (used by I/O  drivers)  48 0  4 0 *        kt_wchan 236 0  4 0 *        kt_wait_list 240 0  4 0 *        kt_rwait_list In addition, a reference count, the most recent user mode  priority, the current internal priority, a thread id number, the current scheduling policy, number of ticks left before a voluntary timeslice will be requested, and the mysterious  kt_cpu weighting factor (covered later) are maintained  72 0  4 0 int      kt_refcnt  76 0  4 0 int      kt_deactime  80 0  4 0 int      kt_sleeptime  84 0  2 0 u_short  kt_usrpri  86 0  2 0 u_short  kt_pri 124 0  4 0 int      kt_tid 196 0  4 0 u_int    kt_schedpolicy 200 0  4 0 int      kt_ticksleft  88 0  1 0 u_char   kt_cpu There are additional parameters that are used during MP load balancing, signal handling, and IPC services.

The next stop on our tour is the vas structure.
