Section 5.1. How to Create a Quiz


5.1. How to Create a Quiz

Moodle quizzes have two major components: the quiz body and the question pools. Think of the quiz bodies as a container for various types of questions pulled from the question pools. The body is what students see when they take the assessment. It also defines how the students interact with the quiz. The questions in a quiz body can be of any type, chosen manually or at random, and displayed in a set order or a random order. The question pools can contain questions arranged in a manner that makes sense to you. You can create pools based on chapters, weeks in the semester, important concepts, or any other organizational scheme. Pools can be reused in multiple quizzes, shared between classes, and moved between systems.

To start, we need to create a body for our first quiz.

5.1.1. Creating the Quiz Body

When you create the quiz body, you are creating a container for the questions and setting the rules for interacting with the quiz.

To create a quiz body:

  1. Click Turn Editing Mode On.

  2. Select Quiz from the add menu in the content section where you want to place the link to a quiz.

  3. In the Quiz editing page, shown in Figure 5-1, give the quiz a descriptive name. We'll call this first quiz "Chapter 1."

  4. Write an introduction for the quiz. Be sure to include any special instructions for taking the quiz, such as the number of attempts allowed or scoring rules.

  5. Choose opening and closing dates for the quiz.


    Warning: The default opening and closing dates are the same, and are set to the time you create the quiz. Be sure to change at least the closing date to some point in the future, or your students won't be able to take the quiz at all.

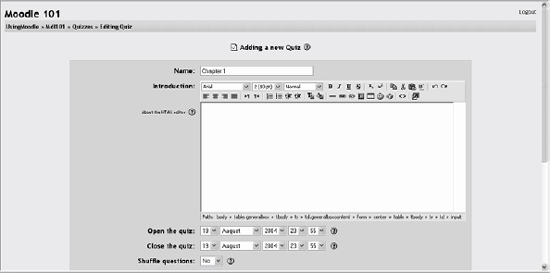

    Figure 5-1. Quiz editing


  6. Choose the options you want to use for your quiz:


    Time Limit

    Determines how long students have to complete the quiz. At the end of the allotted time, the quiz is automatically submitted with the current answers.


    Shuffle Questions

    Set this to Yes to randomly order the quiz questions when they are displayed to the students.


    Shuffle Answers

    This will shuffle the answer prompts within the question.


    Attempts Allowed

    Use this option to set the number of times a student can take a quiz. You can set it to unlimited times or a number from 1 to 6.


    Each Attempt Builds in the Last

    If you allow multiple attempts, you can choose to let students build their answers over time. If you set this to Yes, the student's responses from the last attempt will be visible the next time they try to take the quiz.


    Grading Method

    If you allow multiple attempts, you can choose which score is recorded. Your choices are highest grade, average grade, first attempt, and last attempt.


    After Answering, Show Feedback?

    Displaying feedback will show students which answers are right and which are wrong once they submit their quiz for grading.


    In Feedback, Show Correct Answers?

    If you display feedback, you can also choose to show the students the correct answers.


    Allow Review

    This option will allow students to review past quizzes after they have submitted them for grading and seen the feedback.


    Maximum Grade

    Use this menu to set the highest possible score for your quiz. This is the point total recorded in the grade book. If your questions have more points than the maximum, they will contribute proportionally to the max grade.


    Require Password

    You can set a password for the quiz that students will need to enter before they can take the quiz. You can use this to restrict who takes a quiz and when they take it.


    Require Network Address

    This option restricts access to the test to certain IP address ranges. If you want to require students to take a test from a certain lab on campus, set the network address range to cover the networks in the lab. For example, if you want to require access from computers with an IP range of 10.10.10.0 to 10.10.10.50, you would enter 10.10.10.0/50. To allow access from all computers in a subnet (say, on the campus), enter the partial address you want to use.

  7. Click the Continue button.

Once you click the Continue button, you'll see the second editing screen where you will write and select questions to include in the quiz body.

5.1.2. Creating Questions for a Quiz

You can create your quiz questions in the question-editing section. Here, you'll create and categorize your quiz questions and add them to the quiz body you just created.

On the left side of the screen, as shown in Figure 5-2, you'll see a block where the questions you've added to the current quiz are displayed. Since this is a new quiz, there are no questions there, and Moodle tells us this.

On the right side of the screen, you'll see a category selection menu labeled "Category" and a button labeled "Edit categories." Categories are used to organize your quiz questions for your course, and they can be a container for sharing questions between courses. By default, there is one category, called Default. If you click on the category menu, you'll see it as an option.

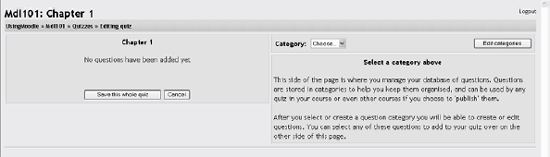

Figure 5-2. Add questions



Tip: It's good practice to create categories to organize your questions. The level of detail in the categories is up to you, but I tend to lean toward more detailed categories I can combine into larger groups later if I want to. For example, I'll break down questions related to a reading into a couple of concepts. It's easier to clump questions together later than it is to pull them apart.

Let's start out by making a category to hold our questions for our Chapter 1 quiz:

  1. From the Editingquiz page, click "Edit categories."

  2. At the bottom of the list of current categories, as shown in Figure 5-3, you will see a blank line.

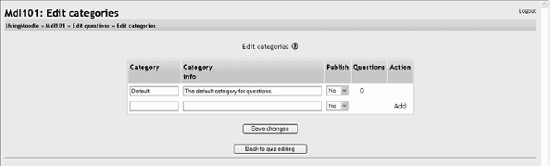

Figure 5-3. Edit categories


  1. Type the name of your new question category in the first text box on the left.

  2. Add a description for your class in the category info area.

  3. If you'd like to share your question with the other classes on the server, select Yes in the Publish column.

  4. Click the Save Changes button at the bottom,

  5. If you want to add another category, a new blank line will appear at the bottom of the list.

  6. When you are done adding categories, click the "Back to quiz editing" button. This will take you back to the "Editing quiz" page.

Once you've created your categories, it's time to add some questions:

  1. From the "Editing Quiz" page, select a category to which you want to add a question.

  2. The area below the category will display the question-creation block.

  3. Select the question type you want to create from the "Create new question" option:


    Multiple Choice

    Both single- and multiple-answer multiple-choice questions are possible.


    True/False

    A simple multiple-choice question with only two possible answers.


    Short Answer

    Students answer this question by typing a word or phrase. You need to provide a list of acceptable answers.


    Numerical

    A short-answer question that accepts a numerical value instead of a word.


    Matching

    A standard two-column matching question.


    Description

    This embeds some text into the quiz. It's not a question but it's useful for giving mid-quiz instructions.


    Random Question

    Creating this question type allows you to add a question randomly drawn from the category to your quiz.


    Random Short-Answer Matching

    An interesting question type. The subquestions for the matching exercise are randomly drawn from short-answer questions in the category.


    Embedded Answers (Cloze)

    A question with multiple questions embedded within it. The development of this module is not yet finished, so I'm not going to cover this type in depth.

  4. Fill in the form for the question type you are creating.

  5. Click Save Changes at the bottom of the form.

Each question type has its own form and options. We'll spend the next few pages detailing the options for each question type.

5.1.2.1. Multiple-choice questions

Moodle provides you with a lot of flexibility when creating this common question type. Figure 5-4 shows an example question. You can create single- and multiple-answer questions, display pictures in the question, and give relative grading weights to individual answers.

To create multiple-choice questions:

  1. Figure 5-5 shows the multiple-choice question-editing page. Start by giving the question a descriptive name. You'll use the name to track your questions later, so "Question 1" isn't a good idea.

  2. Create the question text. If you're using the HTML editor, you can format the question just like a word-processing document.

  3. If you want to add an image to the question, you have two options:

    • If you've already uploaded an image to your Files area (see Chapter 4 for details), it will be available to add to the question stem in a dropdown menu under the Question text area.

    • If you're using the HTML editor, you can click the image icon. This will pop-up the Insert Image window. You can choose to upload an image into your Files area from this window or add the URL of an image on the Web. If you add a file to your Files area, click the name of the file after you upload it to insert the link into the URL text entry at the top of the screen. Then click OK.

  4. Choose whether students can select only one answer or multiple answers.

  5. Write your first response in the Choice 1 text field.

  6. Select a grade percentage for the answer. This is the percentage of the total points possible for the question selecting a given answer is worth. You can select negative percentages as well as positive percentages. So if a question is worth 10 points, selecting one correct response out of two in a multiple-choice question may give you 50% of the possible points (i.e., 5 points). Selecting a wrong answer may take away 10% (i.e., 2.5 points).

  7. If you wish, you can add feedback for each response.


    Tip: It may be a bit more work, but it's good practice to tell the students why each answer is right or wrong using the feedback area. If students know why an answer is right or wrong, they can analyze their own thinking and begin to understand why an answer is correct. Your feedback will be displayed only if you select Show Feedback in the quiz body option.

  8. Fill in the response choices in the rest of the form. Any unused areas will be ignored.

  9. Select the Save Changes button at the bottom of the screen.

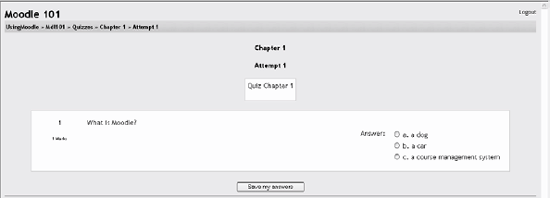

Figure 5-4. A multiple-choice question

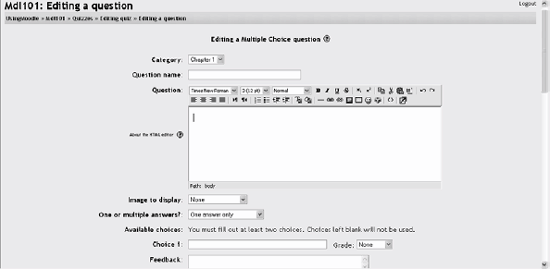

Figure 5-5. Editing a multiple-choice question


You have now added a multiple-choice question to the question category.

5.1.2.2. Short-answer questions

Short-answer questions require the student to type an answer to a question, as shown in Figure 5-6. The answer could be a word or a phrase, but it must match one of your acceptable answers exactly. It's a good idea to keep the required answer as short as possible to avoid missing a correct answer that's phrased differently.


Tip: I like to prototype my short-answer questions to catch common acceptable answers I hadn't thought of. To do this, start by creating a few acceptable answers and include the question in a quiz for no points. Be sure to tell students you are testing a new question. Once the quiz is over, review students' answers and add their acceptable answers to the list.

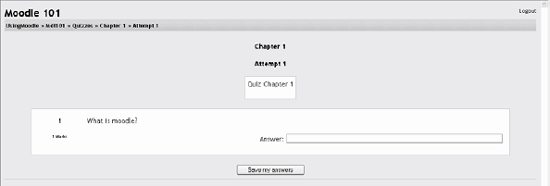

Figure 5-6. A short-answer question


To create a short-answer question:

  1. Give your question a descriptive name.

  2. Create the question stem. If you want students to fill in a blank, use the underscore to indicate where the blank is.

  3. Select an image to display if you want to add a picture to the question (see step 3 in the previous section for more details).

  4. Choose whether capitalization is important. Case-sensitivity can be tricky. Will you accept "george Washington" as well as "George Washington" as an answer?

  5. Fill in the answers you will accept. Give each answer a percentage of the grade if required. You could give common misspellings partial credit with this option.

  6. Create feedback for each acceptable answer.

  7. Click Save Changes to add the question to the category.

5.1.2.3. Numerical questions

Numerical questions are a lot like short-answer questions for equations such as the one shown in Figure 5-7. You can create a question with an equation, and your students type in a numeric answer. Students will get credit for answers within the range of answers you specify.

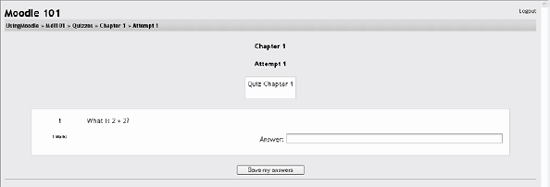

Figure 5-7. Numerical question


To create a numerical question:

  1. Select Numerical question from the new question menu.

  2. Give the question a descriptive name.

  3. Type the equation or numerical question for your students to solve.

  4. Select an image to display if you want to add a picture to the question (see step 3 in the section "Multiple-choice questions" for more details).


    Tip: Moodle doesn't have a good equation editor (yet). So an image of an equation may be the best way to display it.

  5. Enter the correct answer (you can add only one correct answer).

  6. Enter the accepted error, i.e., the range above or below the correct answer. For example, if the correct answer is 5, but you will accept 4 or 6 as answers, your accepted error is 1.

  7. Enter feedback for the question.

  8. If you want to accept answers in multiple units (e.g., metric or English units), specify the unit multiplier and the unit label in the areas.

  9. Click Save Changes to add the question to the category.

5.1.2.4. Matching questions

Matching questions ask students to match multiple question stems to multiple possible answers (see Figure 5-8). They are useful for testing students' understanding of vocabulary and their ability to match examples to concepts. Setting up a matching question in Moodle is a bit different from setting up other types of questions.

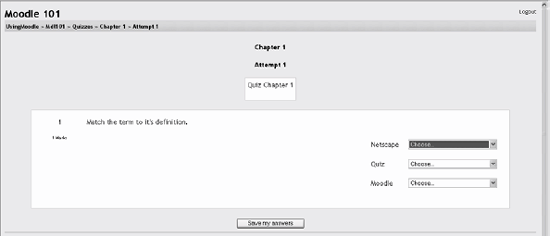

Figure 5-8. Matching question


To create a matching question:

  1. Select Matching question from the new question menu.

  2. Give the question a descriptive name.

  3. Enter the question stem to tell the students what they are matching.

  4. Select an image to display if you want to add a picture to the question (see step 3 in the section "Multiple-choice questions" for more details).

  5. For the first matching item, enter the question and a matching answer.

  6. Fill in at least three questions and answers. You can enter as many as 10 items.

  7. Click Save Changes to add the question to the category.

Moodle will display the question in two columns. The first will contain the questions. The second will display a dropdown menu for each question with all possible matching answers as options.

5.1.2.5. Random questions

A random question is a placeholder for a randomly selected question. One of the advantages of a computer-generated quiz is the ability to generate a quiz from questions randomly selected from a category. Each random question will pull a question randomly from the question category and insert it into the quiz whenever a student takes the quiz.

Each random question can be inserted into a quiz only once, so you'll need to create a random question for each question you want randomly inserted into the quiz. Fortunately, it's easy to create a random question or even a bunch of them at once.

To create a random question:

  1. Select "Random question" from the new question menu.

  2. Give the question a descriptive name.

  3. Click Save Changes to add the question to the category.

To create multiple random questions:

  1. Click the Create multiple questions button below the new question menu.

  2. Select the number of questions you want to create on the screen shown in Figure 5-9.

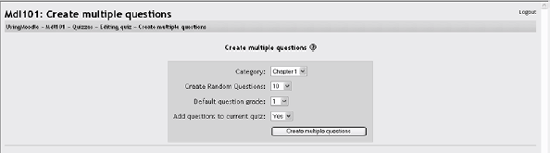

    Figure 5-9. Create multiple questions


  3. Enter a default point value for each created question.

  4. Choose to add questions directly to the current quiz or leave them in the category for inclusion later.

5.1.2.6. Random short-answer matching questions

This is an interesting question type. You take random multiple short-answer questions and their correct answers and create a matching question out of them. It's an interesting way to reuse your short-answer questions in a new format.

To create a random short-answer matching question:

  1. Select Random Short-Answer Matching from the new question menu.

  2. Give the question a name.

  3. Select the number of questions you want to add to the matching question.

  4. Click Save Changes.

5.1.2.7. Calculated questions

Calculated questions are the newest addition to the Moodle quiz. A calculated question is a mathematical equation with placeholders for values that will be pulled randomly from a dataset when a student takes the quiz. For example, if I want to create a large number of multiplication problems to drill my students, I would create a question with two placeholders and a multiplication sign such as {a} * {b}. When a student takes the test, Moodle will randomly select values for a and b. The test will very rarely appear the same way twice.

To create a calculated question:

  1. Select Calculated question from the new question menu.

  2. Give the question a name on the editing screen shown in Figure 5-10.

    How to Create a Quiz 83

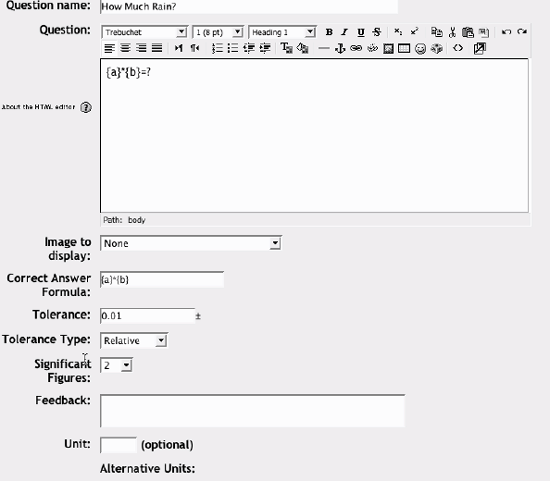

    Figure 5-10. Creating a calculated question


  3. Enter your question into the question field. All variables you want Moodle to replace with generated values must be placed in curly braces.

  4. Enter the formula for the answer. Be sure to use the same placeholders so Moodle can substitute the same values.

  5. Determine the tolerance for error that you will accept in the answer. The tolerance and tolerance type combine to give a range of acceptable scores.

  6. Select the number of significant figures you want in the correct answer.

  7. If you want, type some feedback for the student.

  8. Enter the units for the answer (e.g., meters, kg., ft., etc.). Moodle will look for the correct units. If you want to enter other acceptable units, such as metric versus English distances, enter them along with a conversion factor.

  9. Click Save Changes.

  10. On the next screen, choose whether to create substitution values for each placeholder only for this question, or for other questions in the same category.

  11. Click Save Changes.

  12. Create a dataset for the question or questions in the category. For each placeholder, generate a series of acceptable values. The more values you generate, the more a question can be used without repeating values. Figure 5-11 illustrates the interface for datasets for calculated questions.

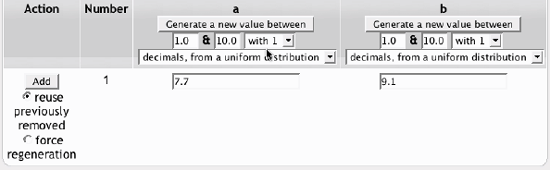

    Figure 5-11. Calculated question dataset


  13. Click "Back to quiz editing."

Calculated questions can use more than simple arithmetic operators. The full list of operators includes abs, acos, acosh, asin, asinh, atan, atanh, ceil, cos, cosh, deg2rad, exp, expm1, floor, log, log10, log1p, rad2deg, round, sin, sinh, sprt, tan, tanh, atan2, pow, min, max, and pi. Each function's placeholders and other arguments are in parentheses. For example, if you want students to calculate the sine of one angle and two times cosine of another, you would enter sin({a}) + cos({b}*2).

5.1.3. Importing Questions

If you have questions from a textbook question bank, or if you don't want to use the web interface to create your questions, you can import them from a text file. Moodle supports eight native formats and provides an easy way to create new importers if you know a little PHP.

Once you get to know a format, it may be easier simply to type the questions into a text file than to use the web interface. You can just keep typing instead of waiting for new web pages to load for each question.

The default formats include:


GIFT

With GIFT format, you can write multiple-choice, true/false, short-answer, matching, and numerical questions.


Aiken

Aiken format provides an easy way of writing multiple-choice questions for import. It's a very easy, readable format.


Missing-word

If you're going to write a lot of missing-word multiple-choice questions, the missing-word format is an easy way to create them.


AON

This is the same as the missing-word format, except it creates matching questions from the multiple choice questions.


Blackboard

If you're converting from Blackboard to Moodle, you can export your course and import the question pools into Moodle using the Blackboard format.


WebCT

Currently, the WebCT format supports only the importing of multiple-choice and short-answer questions.


Course Test Manager

This format enables you to import questions from the Course Test Manager from Course Technology.


Embedded answers (Cloze)

The Cloze format is a multiple-answer question with embedded answers. These questions can be a bit tricky to develop, but they are a unique way of asking questions.

Click the help button next to the Import File button for more details about each format.

5.1.4. Adding Questions to a Quiz

Once you've created your questions, you'll need to add them to the quiz.

The buttons at the bottom of the question are used to add questions to the quiz. You can select individual questions using the checkboxes on the left of the question list. Select the individual questions and click the "Add selected to quiz" button at the bottom of the list, as shown in Figure 5-12.

If you want to add all of the questions you created to the quiz, click the "Select all" button and then click the "Add selected to quiz" button.

Once you've added a question to the quiz, it appears on the left side of the screen in the quiz question list. The question is still selectable on the right, but you can add it to the quiz only once. If you select the question in the category list again and add it to the quiz, nothing will happen.

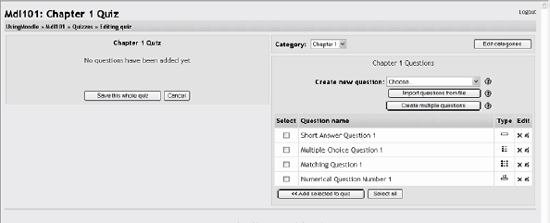

Figure 5-12. Quiz editing screen


Once you've added the questions to the quiz, you can change the order of the questions by clicking the arrow buttons on the left side of the list of quiz questions (see Figure 5-13).

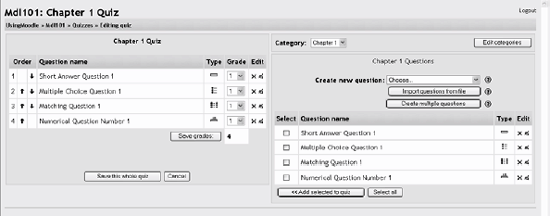

Figure 5-13. Editing quiz with questions


You will also need to set the grade for each question. You can set the number of points for each question in the dropdown menu in the Grade column. You may want to make certain questions or question types worth more than others. Remember, the questions will be weighted to match the total points possible for the quiz you set in the quiz body.

When you're done, click "Save this whole quiz."

You'll then be taken back to your course's main page. If you click on the quiz link from the content block, you'll see the quiz intro page. You can preview the quiz by clicking on the "Attempt quiz now" button. Figures 5-14 and 5-15 show the quiz as your students will see it

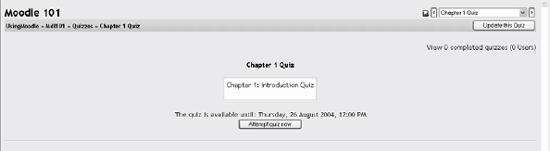

Figure 5-14. Quiz introduction

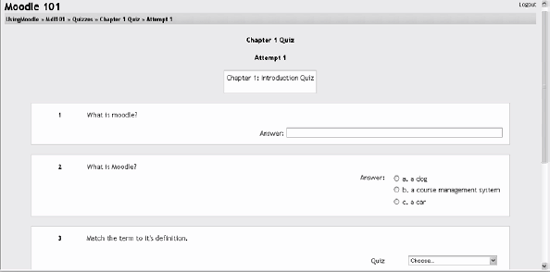

Figure 5-15. Quiz attempt

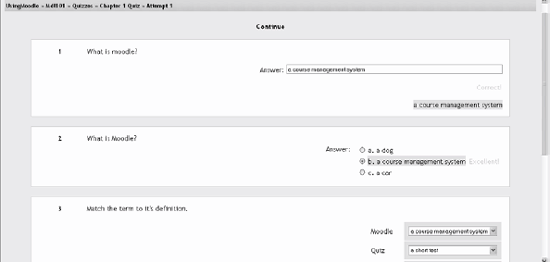

If you answer the questions, you can submit the quiz and see the feedback and responses your students will see. Your students will see two scores at the top of the page. The first is the raw score representing the total points they scored out of the maximum possible points from each question. The second score is the weighted score representing the number of points out of the maximum possible points for the quiz.

If you've enabled feedback after answering, each question will be displayed below the scores with the answers marked correct or incorrect, as shown in Figure 5-16. If you've enabled the display of correct answers, they will appear highlighted in green.

Figure 5-16. Quiz results


Your preview scores will be recorded with the students' attempts. In the next section, we'll discuss how to manage your quizzes.



Using Moodle
Using Moodle: Teaching with the Popular Open Source Course Management System
ISBN: 059652918X
EAN: 2147483647
Year: 2004
Pages: 113

flylib.com © 2008-2017.
If you may any questions please contact us: flylib@qtcs.net
